2-Phase Open Loop Stepper Driver - R60
2-Phase Open Loop Stepper Driver – R60 Overview

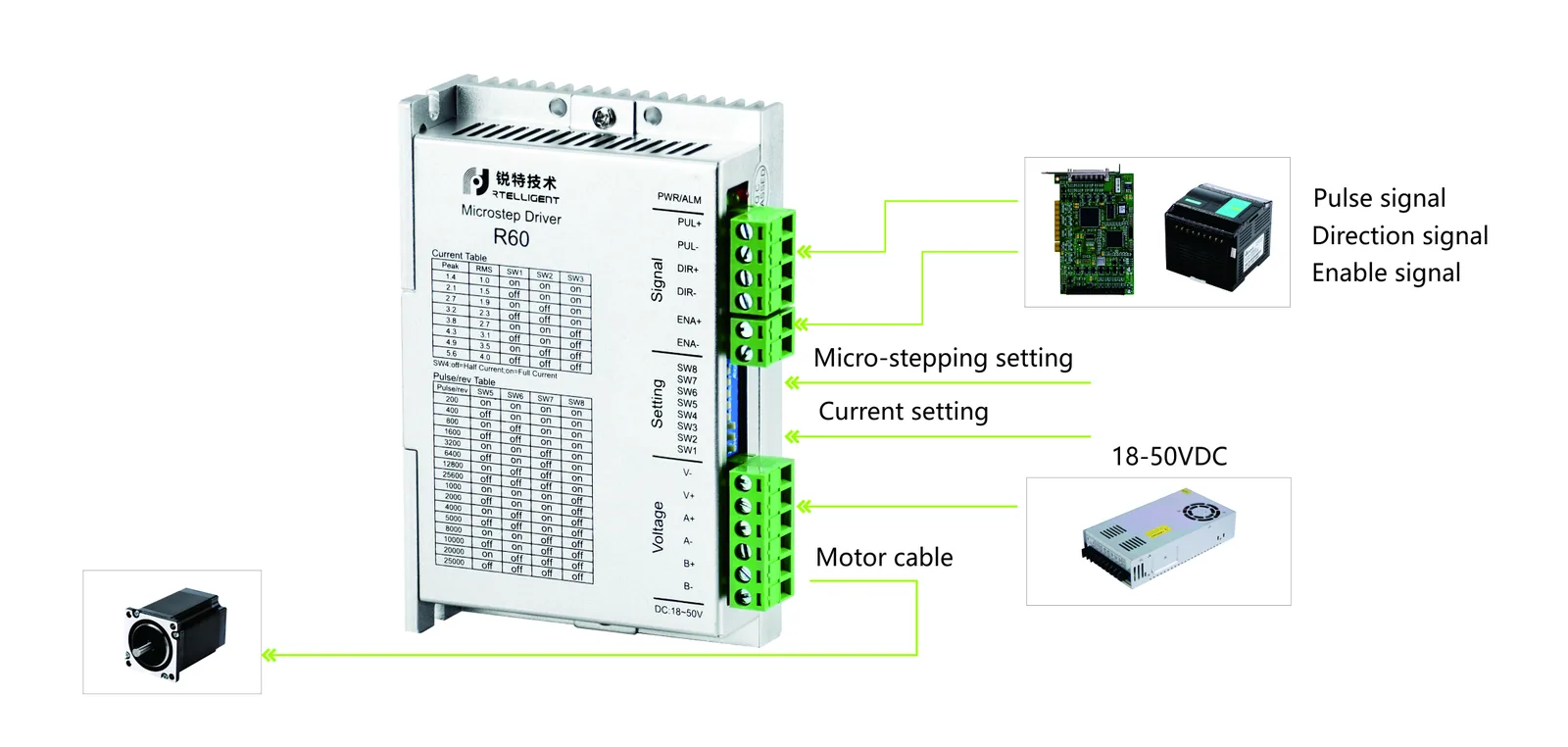

The R60 digital 2-phase stepper drive is based on 32-bit DSP platform,with built-in micro-stepping technology & auto tuning of parameters. The drive features low noise, low vibration, low heating and high-speed high torque output.
- Pulse Mode: PUL&DIR
- Signal Level: 3.3—24V compatible; series resistance not necessary for the application of PLC.
- Power Voltage: 18-50V DC supply; 36 or 48V recommended.
- Typical Applications:Engraving machine , marking machine, cutting machine, plotter, laser, auto assembly equipment, etc.
Working Current Setting
| Peak Current | Average Current | SW1 | SW2 | SW3 | Remarks |
|---|---|---|---|---|---|
| 1.4A | 1.0A | on | on | on | Other current can be customized. |
| 2.1A | 1.5A | off | on | on | |
| 2.7A | 1.9A | on | off | on | |
| 3.2A | 2.3A | off | off | on | |
| 3.8A | 2.7A | on | on | off | |
| 4.3A | 3.1A | off | on | off | |
| 4.9A | 3.5A | on | off | off | |
| 5.6A | 4.0A | off | off | off |
Micro-stepping Setting
| Steps/revolution | SW5 | SW6 | SW7 | SW8 | Remarks |
|---|---|---|---|---|---|
| 200 | on | on | on | on | Other subdivisions can be customized. |
| 400 | off | on | on | on | |
| 800 | on | off | on | on | |
| 1600 | off | off | on | on | |
| 3200 | on | on | off | on | |
| 6400 | off | on | off | on | |
| 12800 | on | off | off | on | |
| 25600 | off | off | off | on | |
| 1000 | on | on | on | off | |
| 2000 | off | on | on | off | |
| 4000 | on | off | on | off | |
| 5000 | off | off | on | off | |
| 8000 | on | on | off | off | |
| 10000 | off | on | off | off | |
| 20000 | on | off | off | off | |
| 25000 | off | off | off | off |
