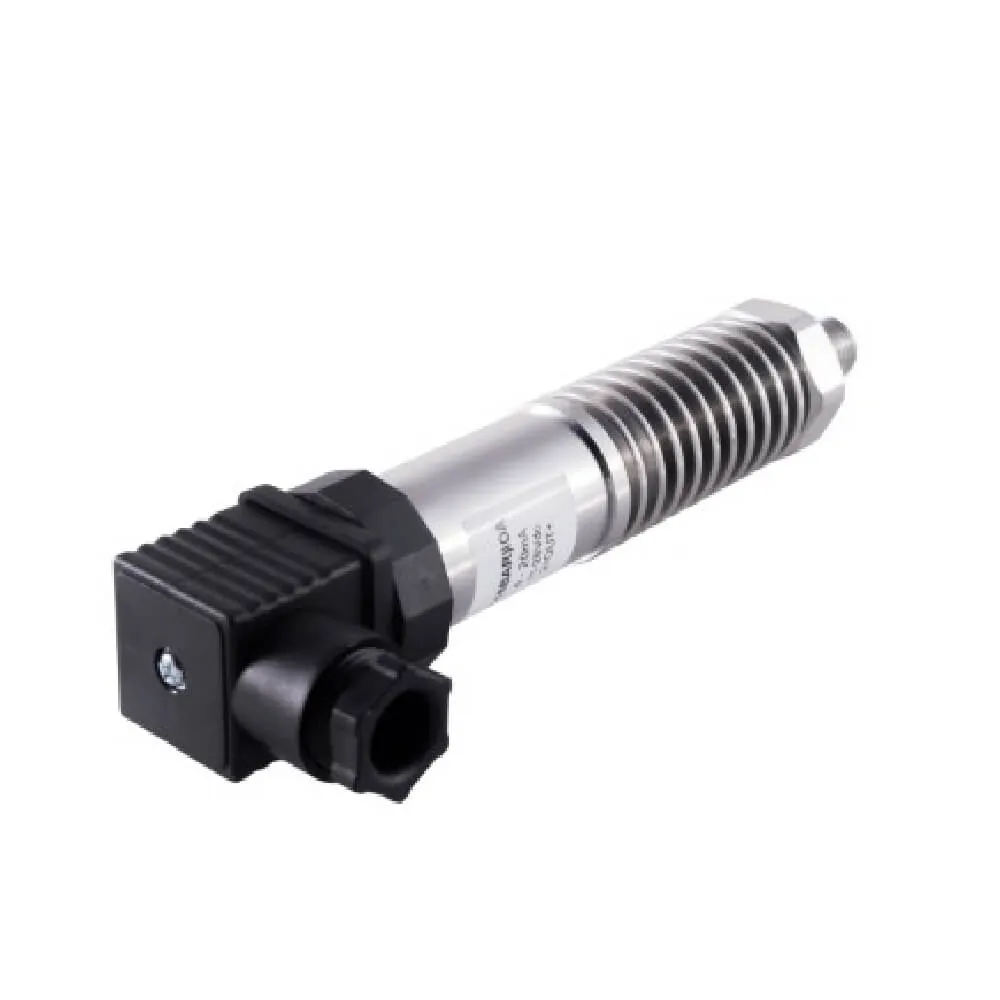

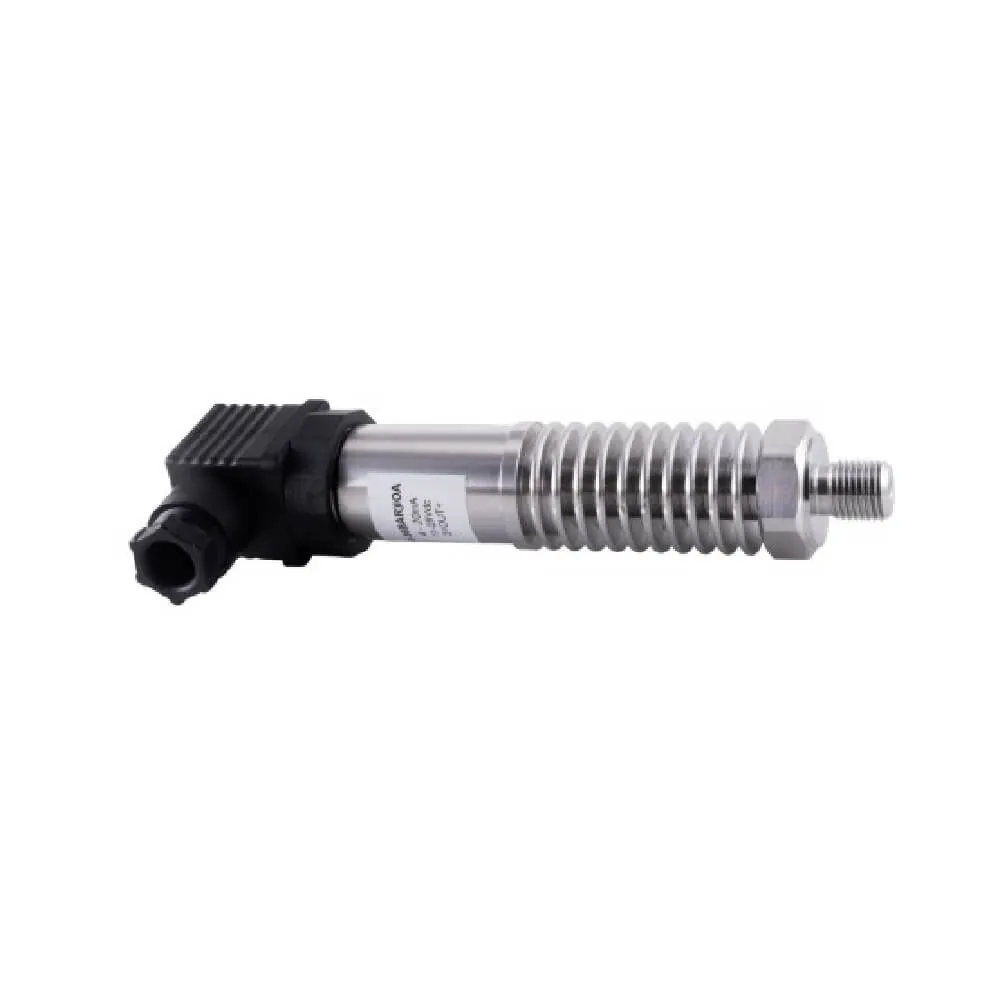

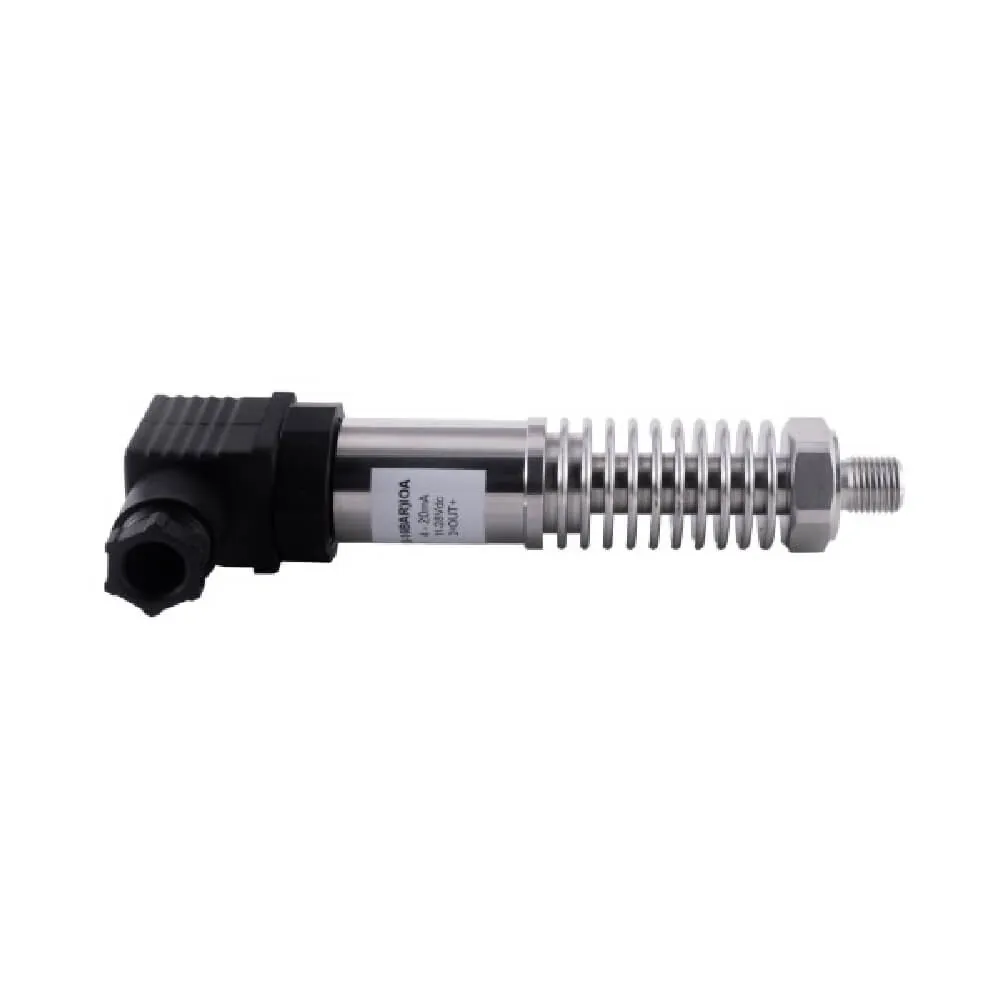

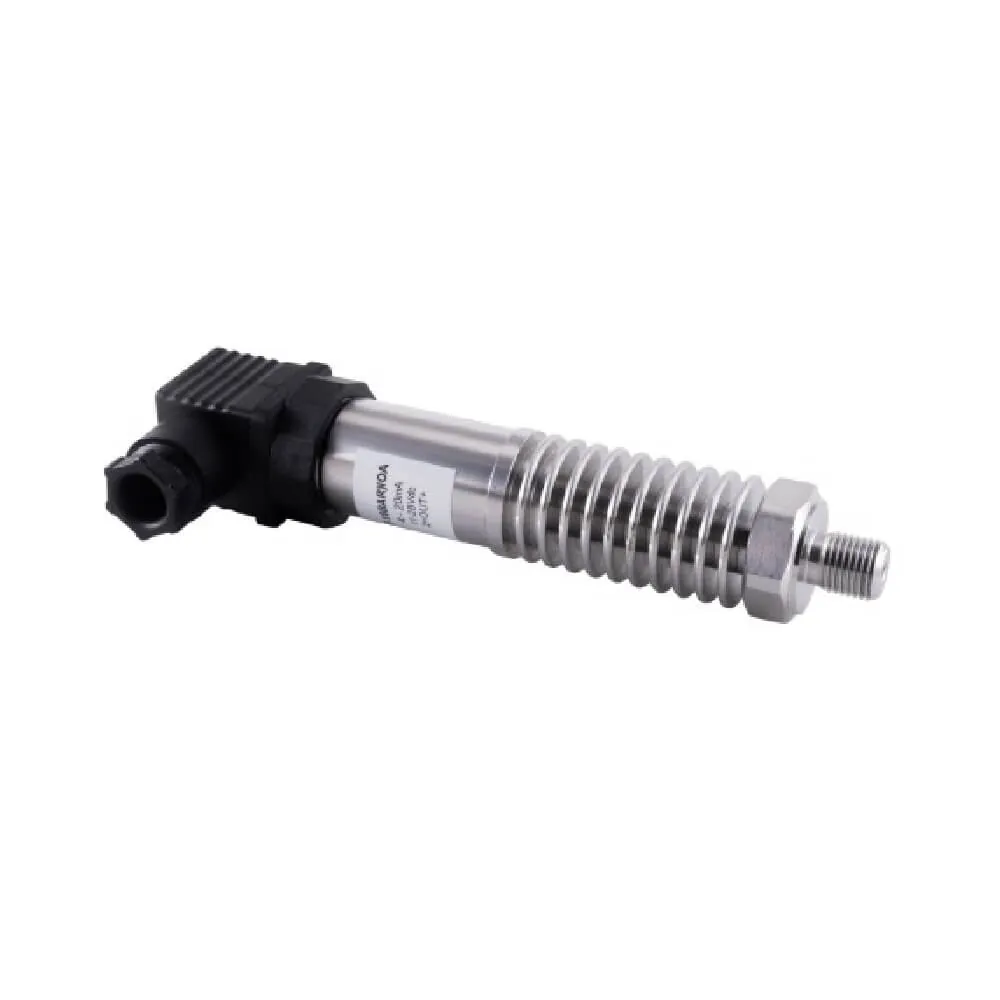

High Temperature Pressure Transmitter


Overview of High Temperature Pressure Transmitter

The high temperature pressure transmitter is used for measuring and monitoring the pressure in cases where high temperature is expected. The high temperature pressure transmitter acts as a very accurate and reliable High Temperature Pressure Sensor. Due to this reason, it is constructed in such a way that it utilizes materials that do not compromise on the accuracy due to increased temperature. Thus, it becomes a very safe and reliable option when used in such applications. Owing to its robust construction, it performs satisfactorily even in case of high temperatures in the surrounding environment that would otherwise have hampered the working of other normal devices. It works as a very accurate high temperature pressure transducer and gives consistent and repeatable readings during its operation. This unique quality of the pressure transmitter makes it widely used in various industries like petrochemical, metallurgy, power plant, etc. RBA OPTISYNC PRIVATE LIMITED provides a very durable and accurate solution for your high temperature pressure measurements.

Main Features

  • Design for high-temperature application
  • Robust stainless steel construction
  • Wide compatibility
  • Accurate measurements

Applications

  • High temperature pressure monitoring system
  • Power station
  • Factory automation
  • Stem and heat exchanging
Performance Characteristics
Pressure type Relative(gauged) & Absolute
Compensated temperature range -10° ... 80° C
Measuring Range 0... 1 bar ~ 0... 1000 bar
Long term stability <0.3 % FSR/year
Accuracy 0.5% FS
Response time <5 ms
Min. measuring span 1 bar
Max. measuring span 1000 bar
Over pressure 1.5 times FS
Temperature coefficient <0.15 % FSR/10K, measuring span
<0.25 % FSR/10K, zero point
Process temperature -40° ... 250° C
Process pressure Refer measuring range for Process pressure
Connection variants G 1/2 Flush Diaphragm
Material of Construction
Diaphragm SS316L
Pressure port SS304
Housing SS304
Output Signal
Current output 4 ... 20 mA, 2-wire
Voltage output 0~5VDC
0~10VDC
0.5~4.5VDC
Electrical Connection
Connector DIN 43650
M12 connector
Cable 2m cable exit
Power Supply
Voltage supply range 11 ... 30V DC, with 4 ... 20 mA output signal
15 ... 30V DC, with 0 ... 1 0V output signal
5V DC ratiometric ... with 0.5 ... 4.5V output signal

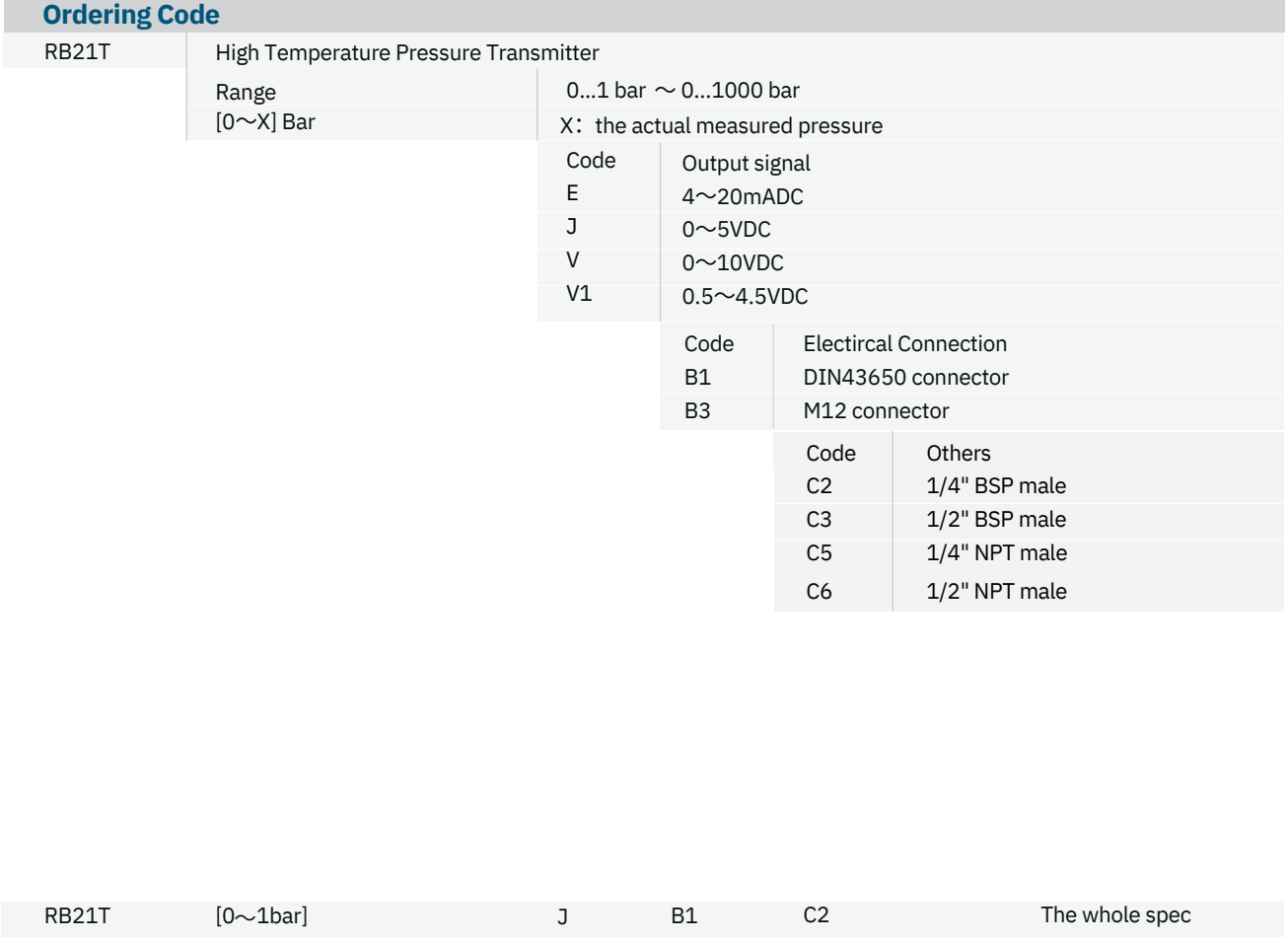

High Performance
