Schneider Electric · HMI

GTO Series

Harmony GTO HMI touch panels in 3.5 to 12.1 inch sizes, configured with Vijeo Designer, with Ethernet, web server and SD/USB storage. Supplied in Gujarat.

Get Free Quote Call +91 8511104864
  • Authorised Schneider Electric partner
  • Supply across India
GTO Series
Overview

GTO Series Overview

Harmony GTO Standard HMI panels can be configured using Vijeo Designer software in a Windows 7, Windows 8.1 and Windows 10 Pro environment.
Vijeo Designer software boasts an advanced user interface with many configurable windows, enabling projects to be developed quickly and easily.
The Harmony GTO range is compatible with Vijeo Designer version V6.1 or later. For more information, please refer to Vijeo Designer catalog DIA5ED2130614EN.

Get a Quote Talk to Engineer

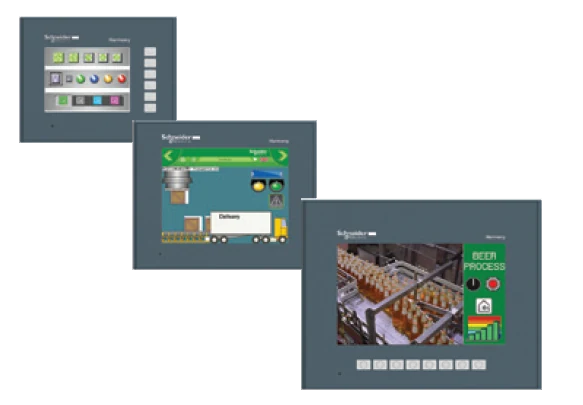

Presentation

The Standard HMI touch screen panels Harmony GTO offer includes:

  • A range of 8 color touch screen panels (TFT technology), available in a choice of 5 sizes
  • 3.5"
  • 5.7"
  • 7": 7 Wide and 7.5" (front identical in size)
  • 10.4"
  • 12.1"
  • A range of 3 color TFT touch screens available in 3 sizes:
  • 5.7"
  • 10.4"
  • 12.1"
  • with front featuring a Stainless Steel frame, dedicated to applications in harsh environments (food & beverage and pharmaceutical).
Presentation GTO

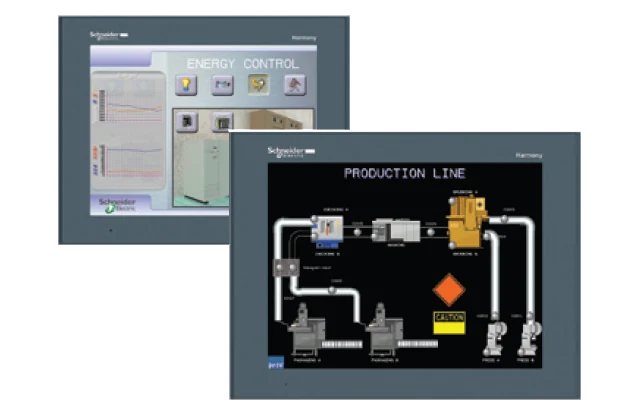

Operation

Harmony GTO Standard HMI panels feature optimized information and communication technologies, which, depending on the model, include:

  • High level of communication (embedded Ethernet, multilink, Web server and FTP, e-mail)
  • External storage of data (SD memory card and USB memory stick) for storing production data and backing up applications
  • Management of peripherals: printers, etc.
  • These panels offer an excellent level of technical performance designed principally for use by OEM customers.

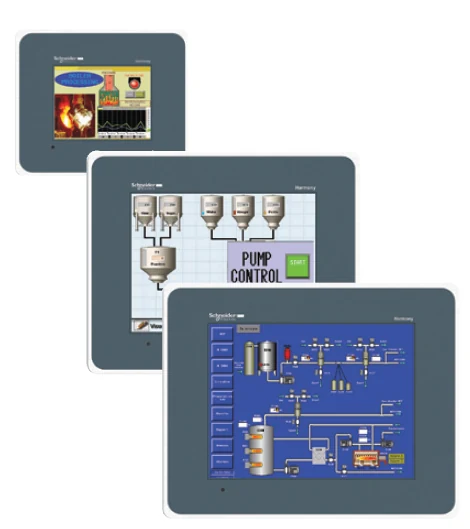

Harmony GTO

Environment

The Harmony GTO range has been designed in accordance with numerous standards, certifications and requirements:

  • Standards: EN 61131-2, 61000-6-2 and UL508.
  • Certifications:
  • e, C-tick, GOST-R, KCC
  • Atex and UL Hazardous location (pending)
  • Marine certifications (pending).
  • Operating temperature: up to 55°C
  • Degree of protection (according to IEC 60529):
  • IP 65 for standard version products
  • IP 67 for standard version products fitted with a cover for harsh environments
  • IP 66K for “Stainless Steel” version products
  • Resistance to high-pressure cleaning (conforming to DIN 40050-9): up to 10 bar for “Stainless Steel” version products.
Harmony GTO

Functions

Standard HMI panels offer the following functions:

  • Display of animated synoptic views with 8 types of animation (pressing the touch panel, color changes, filling, movement, rotation, size, visibility and value display)
  • Control, modification of numeric and alphanumeric values
  • Display of current date and time
  • Real-time and trending curves with log
  • Alarm display, alarm log and management of alarm groups
  • Multiwindow management
  • Operator-initiated page calls
  • Multilingual application management (10 languages at the same time)
  • Recipe management
  • Data processing via Java script
  • Storage of the application and logs on external application memory card in SD format or USB stick
  • Management of serial printer
Harmony GTO

Brochure on request

The datasheet for GTO Series HMI is not published yet. Ask us on WhatsApp and we will send it, usually the same working day.

Request Brochure

Industrial Applications of GTO Series

RB Automation supplies AC servo drives, servo motors and servo reducers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

SPM Machinery

  • Keyway Milling Machine
  • PVC Pipe Cutting Machine
  • Metal Drilling Machine
  • Busbar Bending Machine
  • Gold Refinery Machine
  • Punching Machine

Pharmaceutical Industry

  • Rotary Liquid Filling Machine
  • Linear Liquid Filling Machine
  • Powder Filling Machine
  • Sticker Labeling Machine
  • Bottle Sealing Machine
  • Capping Machine

Aluminium and Steel Industry

  • Laser Marking Machine
  • Laser Cutting Machine
  • Pipe Cutting Machine
  • Drilling Machine
  • Keyway Milling Machine
  • Sheet Cutting Machine

Railway Industry

  • Sleeper Bending Test
  • Cube Testing Machine
  • Auto Tensioning Machine
  • Vibration Control Unit
  • Beam Testing Machine
  • Pullout Testing Machine

Food Industry

  • Cup Cone Filling Machine
  • Candy Making Machine
  • Pouch Packaging Machine
  • Auger Filling Machine

Wood Industry

  • CNC Machine
  • Engraving Machine
  • Automatic Edge Bander Machine
  • Auto Panel Saw Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right GTO Series HMI variant and quote it.

  • Authorised Schneider Electric partner
  • Supply across Gujarat and all India
+91 8511104864 contact@rbautomate.com
FAQs

Harmony GTO Series HMI FAQs

Straight answers to what buyers ask us most about GTO Series.

Harmony GTO is Schneider Electric's standard HMI touch panel range, designed principally for OEM customers. The panels use colour TFT touch screens and, depending on the model, offer embedded Ethernet, multilink, web server, FTP and e-mail, plus SD card and USB memory stick storage for production data and application backups. They are configured with Vijeo Designer software.

The standard Harmony GTO offer includes 8 colour TFT touch panels in 5 sizes: 3.5, 5.7, 7 (7 inch wide and 7.5 inch, with the same front size), 10.4 and 12.1 inch. A further 3 models with a stainless steel front frame come in 5.7, 10.4 and 12.1 inch sizes for harsh environments such as food and beverage and pharmaceutical plants.

Yes, the stainless steel versions are intended for that. They carry IP66K protection and resist high-pressure cleaning up to 10 bar as per DIN 40050-9. Standard versions are rated IP65, or IP67 when fitted with the cover for harsh environments. The range operates at temperatures up to 55°C, which suits many enclosed machine and process areas.

Yes. RB Automation can recommend the right GTO screen size and front type for your machine and confirm software compatibility. Harmony GTO panels need Vijeo Designer V6.1 or later on Windows 7, Windows 8.1 or Windows 10 Pro. Send your application or existing panel details to contact@rbautomate.com, or call +91 8511104864 for technical support before ordering.

You can buy Harmony GTO panels from RB Automation in Ahmedabad, Gujarat. RB Automation is an authorised Schneider Electric partner and supplies GTO HMIs to OEMs and end users across India. Visit or write to E 206, Ganesh Glory 11, Jagatpur Road, off SG Highway, Jagatpur, Ahmedabad, Gujarat 382470, or call +91 8511104864 to place an order.

The cost of a Harmony GTO panel depends on screen size, standard or stainless steel front, communication features and order quantity. Send the part number or your application details through the inquiry form on this page, or WhatsApp +91 9898739737, and RB Automation will reply with a quotation. Bulk pricing requests for OEM machine series are welcome.
