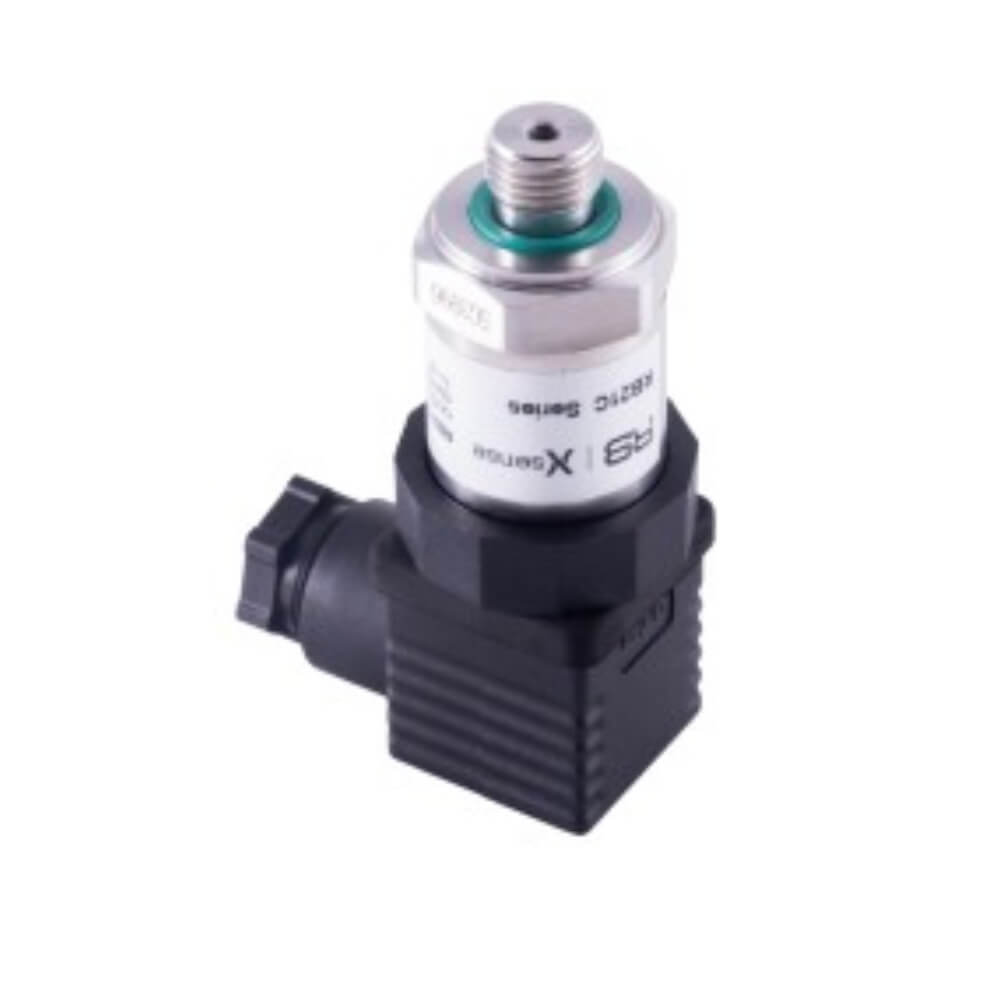

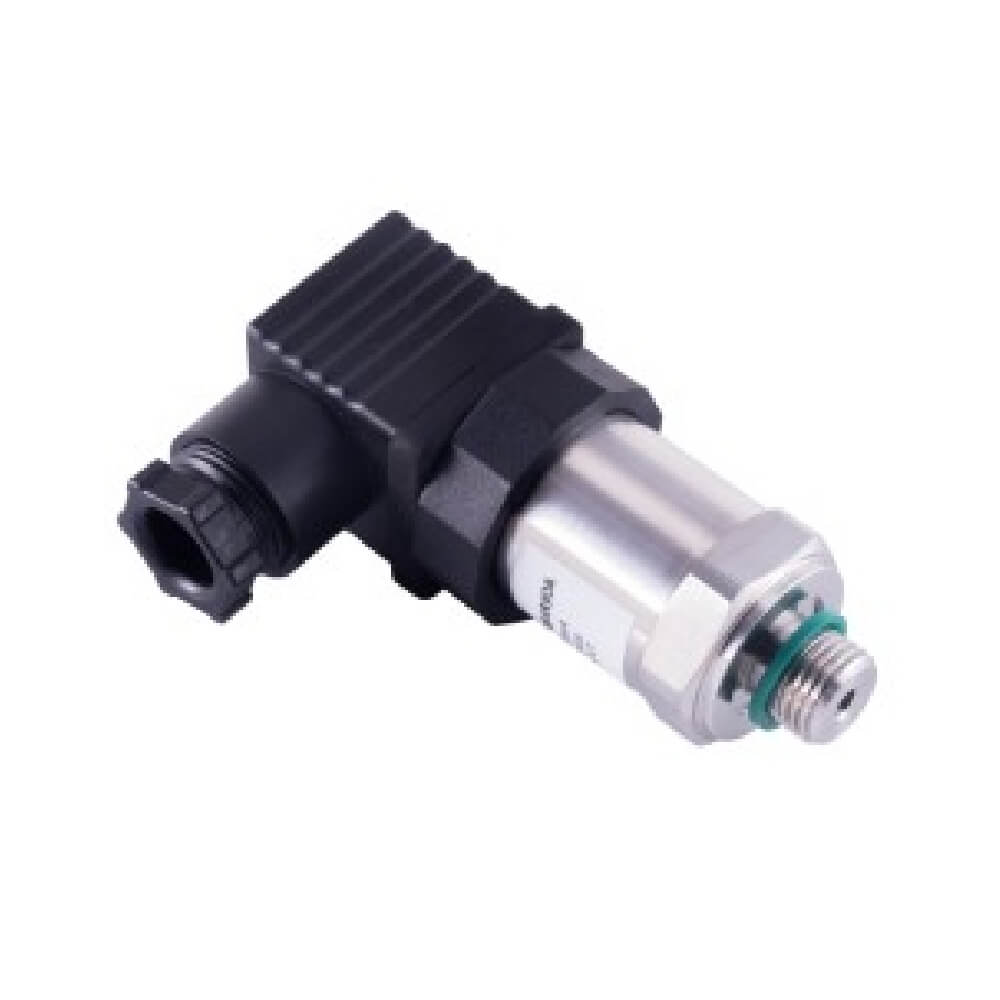

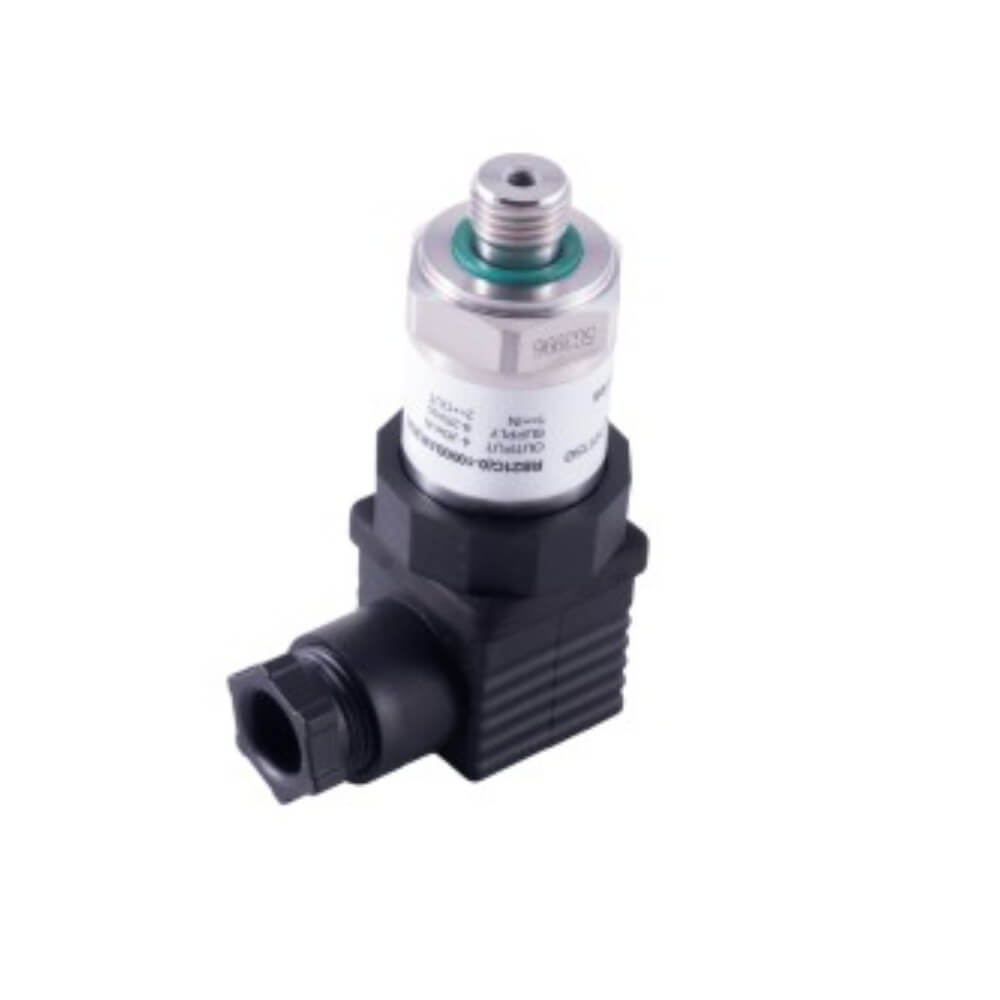

Heavy Duty Pressure Transmitter
Industrial Pressure Transmitters
In the world of industrial processes, precision and reliability
are paramount. To meet these demands head-on, RB’s
heavy-duty pressure transmitters have emerged as essential
instruments. These robust devices are designed to delivering
accurate and real-time pressure measurements critical for
various applications across industries.
Main Features
- Heavy duty with precision accuracy
- Short protection and reverse polarity protection
- Gauge & absolute range
- Wide range compatibility
Applications
- Hydraulic application
- Very low Range pressure measurement
- Factory automation
- Injection moulding
Technical Specifications
| Performance Characteristics |
| Pressure type |
Relative(gauged) & Absolute |
| Compensated temperature range |
-10 ... 55 C |
| Measuring Range |
0... 100 mbar |
| Long term stability |
<0.3 % FSR/a |
| Accuracy |
0.5% FS |
| Response time |
<5 ms |
| Min. measuring span |
100 mbar |
| Max. measuring span |
1000 bar |
| Over pressure |
1.5 times FS |
| Temperature coefficient |
<0.15 % FSR/10K, measuring span |
|
<0.25 % FSR/10K, zero point |
| Process temperature |
-30 ... 80 C |
| Process pressure |
Refer measuring range for Process pressure |
| Connection variants |
G 1/4” or NPT 1/4” Male thread |
| Material of Construction |
| Diaphragm |
SS316L |
| Pressure port |
SS304 |
| Housing |
SS304 |
| Sealing |
Viton |
| Output Signal |
| Current output |
4 ... 20 mA, 2-wire |
| Voltage output |
0~5VDC
0~10VDC
0.5~4.5VDC |
| Electrical Connection |
| Connector |
DIN 43650
M12 connector |
| Cable |
2m cable exit |
| Power Supply |
| Voltage supply range |
11 ... 30V DC, with 4 ...
20 mA output signal |
| 15 ... 30V DC, with 0 ... 1
0V output signal |
| 5V DC ratiometric ... with
0.5 ... 4.5V output signal |
