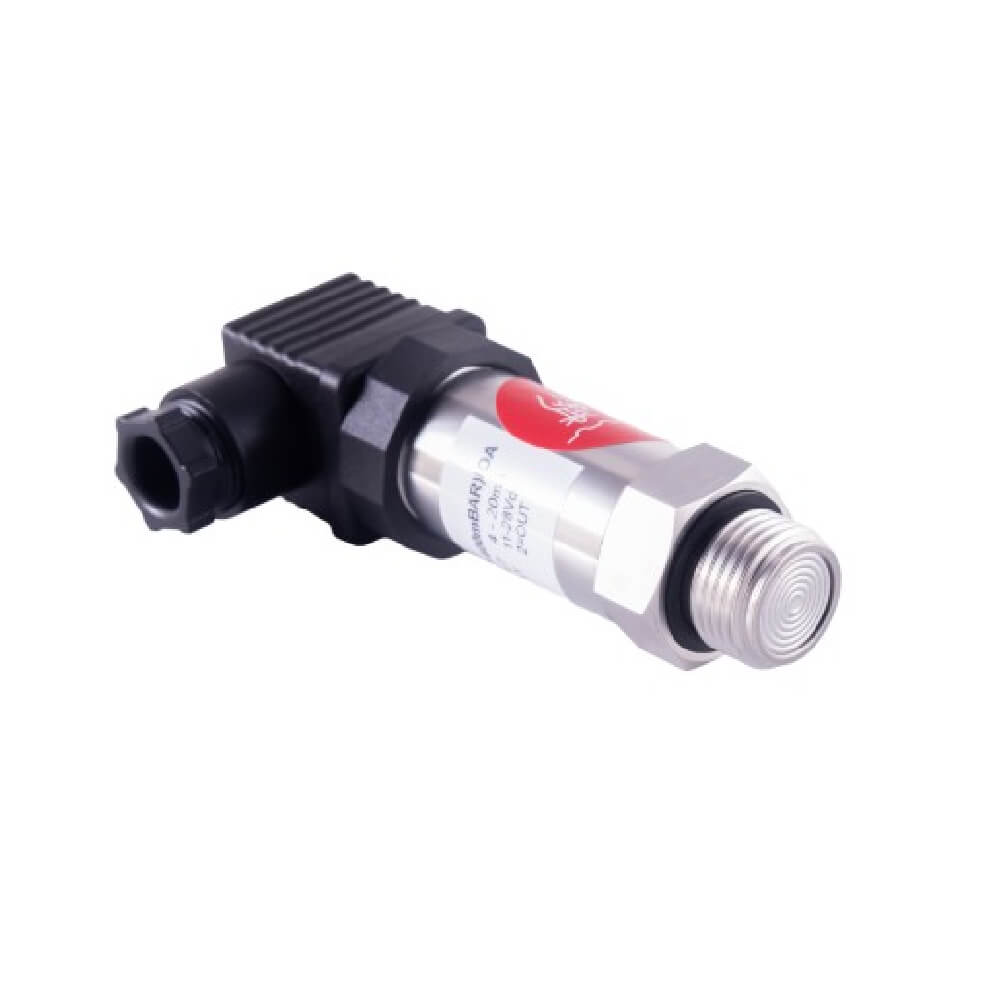

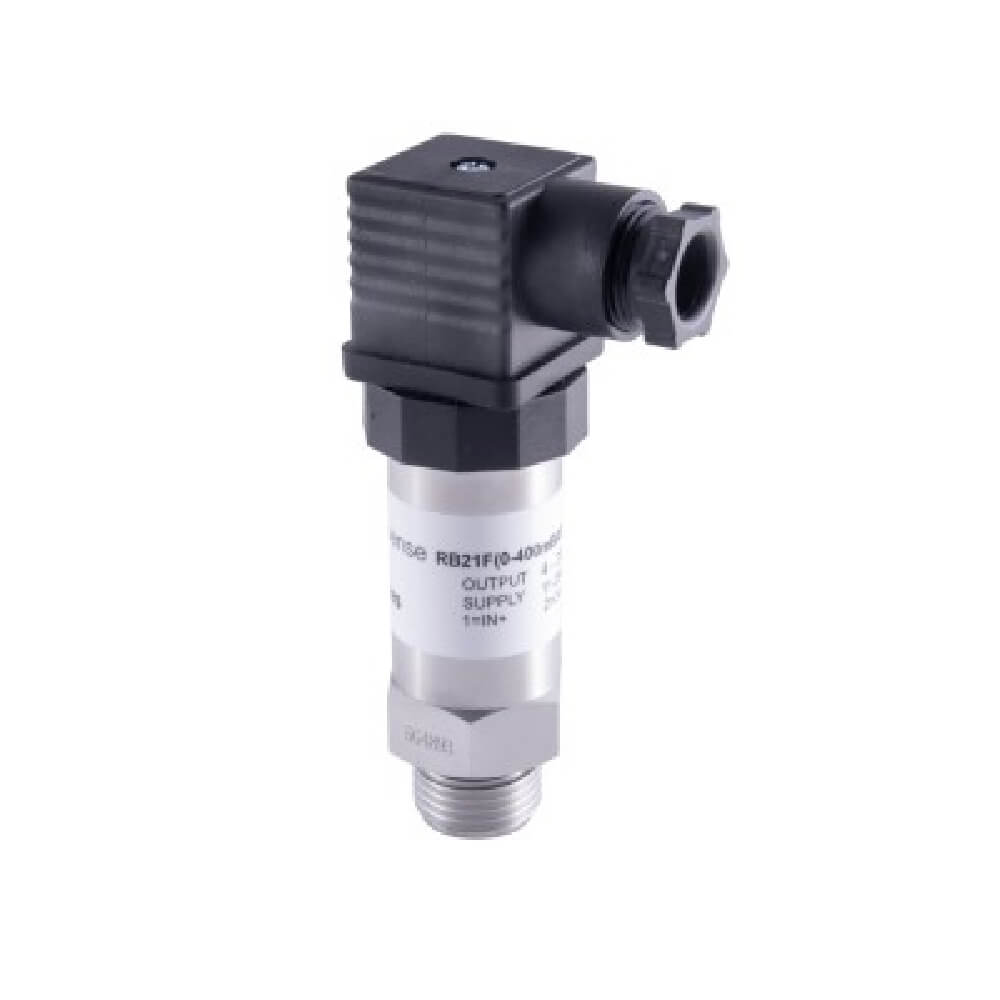

RB Flush Diaphragm Pressure Transmitter
Flush Diaphragm Pressure Transducer & Transmitter

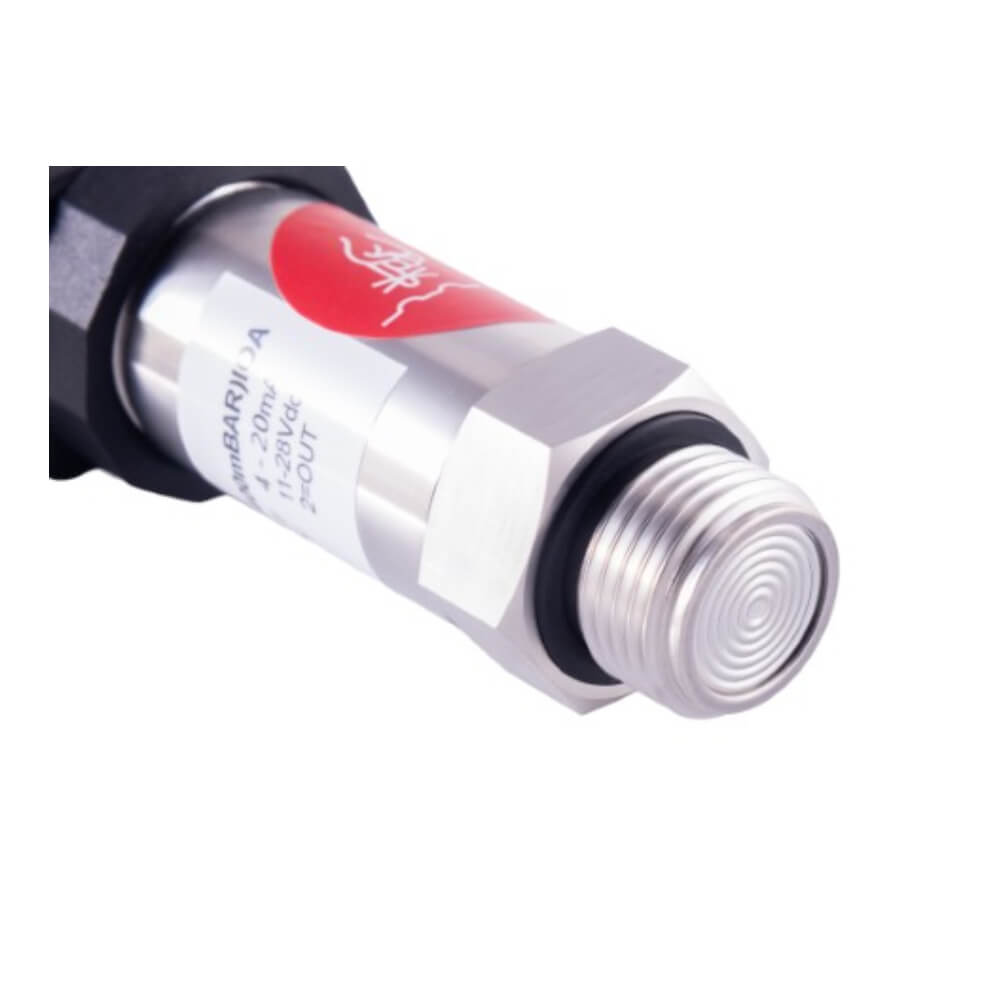

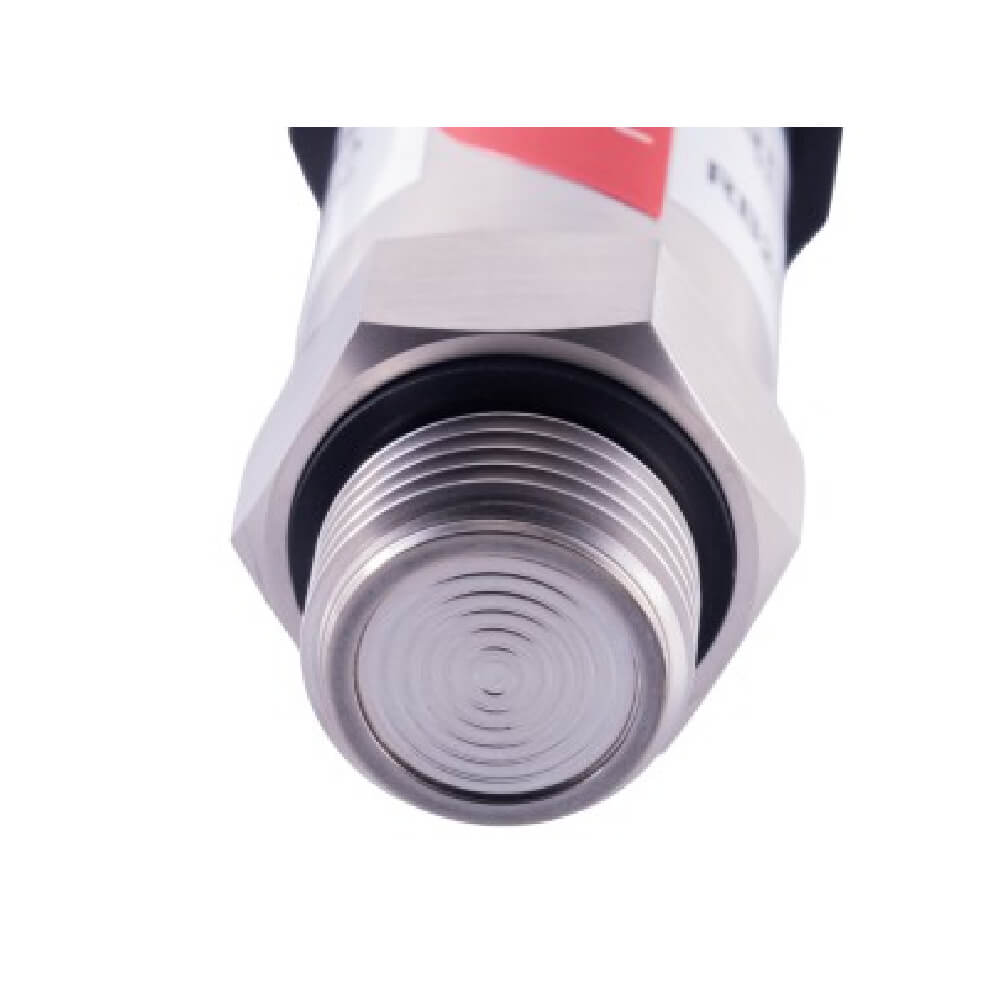

A flush diaphragm pressure transmitter is specially designed for measuring pressure in challenging applications, such as those involving highly viscous or solid-laden fluids. Unlike traditional pressure transmitters, flush diaphragm transmitters feature a diaphragm that sits flush with the device's front, preventing debris buildup and contamination.
Main Features
- Precise & accurate
- Flush Diaphragm process connection
- Wide range compatibility
- Fully welded design
Applications
- Air application
- Factory automation
- Pharma industries
Technical Specifications
| Performance Characteristics | |
|---|---|
| Pressure type | Relative (gauged) & Absolute |
| Compensated temperature range | -10 ... 55°C |
| Measuring Range | 0 ... 100 mbar |
| Long term stability | <0.3 % FSR/year |
| Accuracy | 0.5% FS |
| Response time | <5 ms |
| Min. measuring span | 100 mbar |
| Max. measuring span | 400 bar |
| Over pressure | 1.5 times FS |
| Temperature coefficient | <0.15 % FSR/10K, measuring span <0.25 % FSR/10K, zero point |
| Process temperature | -30 ... 80°C |
| Process pressure | Refer measuring range for Process pressure |
| Connection variants | G 1/2 Flush Diaphragm |
| Material of Construction | |
|---|---|
| Diaphragm | SS316L |
| Pressure port | SS304 |
| Housing | SS304 |
| Sealing | NBR |
| Output Signal | |
|---|---|
| Current output | 4 ... 20 mA, 2-wire |
| Voltage output | 0~5VDC 0~10VDC 0.5~4.5VDC |
| Electrical Connection | |
|---|---|
| Connector | DIN 43650 M12 connector |
| Cable | 2m cable exit |
| Power Supply | |
|---|---|
| Voltage supply range | 11 ... 30V DC, with 4 ... 20 mA output signal |
| 15 ... 30V DC, with 0 ... 1 0V output signal | |
| 5V DC ratiometric ... with 0.5 ... 4.5V output signal | |
