New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S

Closed loop stepper drive T60S/T86S with 18-50VDC and 28-110VDC input, brake wiring and phase loss alarm. Closed loop stepper motor driver and controller supplier in India.

Get Free Quote Call +91 8511104864
  • Rtelligent technical partner
  • Supply across India
New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S
New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S
New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S
New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S
New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S
New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S
Overview

New Generation 2 Phase Closed Loop Stepper Drive T60S / T86S Overview

The T-S series represents an upgraded Generation of open-loop stepper drivers developed by Rtelligent, designed based on years of experience and expertise in stepper drive technology. Built on a new architecture and advanced control algorithms, this next-Generation driver significantly reduces low-speed motor resonance while offering enhanced resistance to electrical interference.

In addition, the T-S series supports non-inductive rotation detection, phase loss alarms, and other intelligent protection functions. It is compatible with multiple pulse command modes and features flexible DIP switch settings, providing reliable, stable, and adaptable performance for a wide range of motion control applications.

CE certified RoHS compliant
Get a Quote Talk to Engineer
io-speed-regulating-stepper-motor
Model No T60S T86S
Voltage range 18–50VDC 28~110VDC
AC input Non suport 20~80VAC
Current range 6000mA 8000mA
Matching motor Closed loop motor
below 60mm		 Closed loop motor
below 86mm

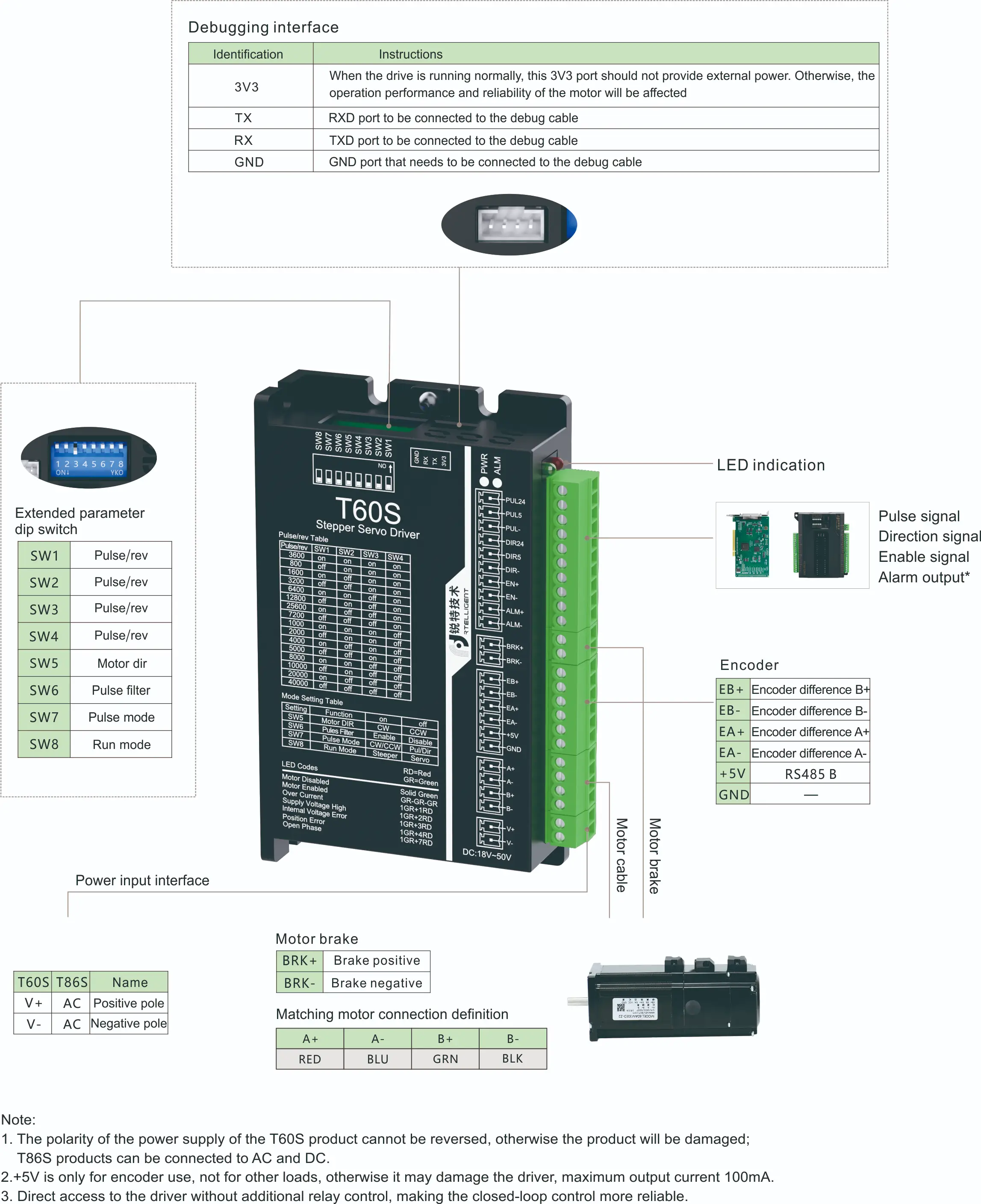

Brake interface Directly connect the brake wire
Debugging interface Serial port TTL3.3V
Extended dip 8 Bit
Alarm output 1
Pulse command voltage 5V/24V independent port
Pulse width setting Software setting
Direction inversion Dip setting
Instruction filter Dip setting
Pulse mode setting PUL+DIR / CW+CCW dip setting
Working mode Open loop / Closed loop dip setting

Datasheets & Manuals

2 documents for New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S. Free PDF, no form to fill in.

  • New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S User Manual Manual · PDF · 797 KB Download
  • Stepper System Catalogue 2026 Catalogue · PDF · 19.1 MB Download

Industrial Applications of New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S

RB Automation supplies stepper motors and stepper motor drivers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

SPM Machinery

  • Keyway Milling Machine
  • Gold Refinery Machine
  • Punching Machine
  • Metal Drilling Machine
  • Packing Sheet Cutting Machine

Wood Industry

  • Automatic Edge Bander Machine
  • Auto Panel Saw Machine
  • CNC Machine
  • Engraving Machine

Pharmaceutical Industry

  • Rotary Liquid Filling Machine
  • Linear Liquid Filling Machine
  • Sticker Labeling Machine

Jewellery and Diamond Industry

  • Diamond 4P Cutting Machine
  • Diamond Laser Fiber Cutting Machine
  • Diamond Multi Process Machine

Food Industry

  • Auger Filling Machine

Aluminium and Steel Industry

  • Laser Marking Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S variant and quote it.

  • Authorised Schneider Electric partner
  • Supply across Gujarat and all India
+91 8511104864 contact@rbautomate.com
FAQs

T60S / T86S 2 Phase Closed Loop Stepper Drive FAQs

Straight answers to what buyers ask us most about New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S.

The T60S and T86S are new-generation 2 phase stepper drives from the Rtelligent T-S series, used to run closed loop stepper motors in motion control machines. The T60S suits closed loop motors below 60mm and the T86S suits motors below 86mm. The new control algorithm reduces low-speed motor resonance and improves resistance to electrical interference, and the working mode can be set to open loop or closed loop by DIP switch.

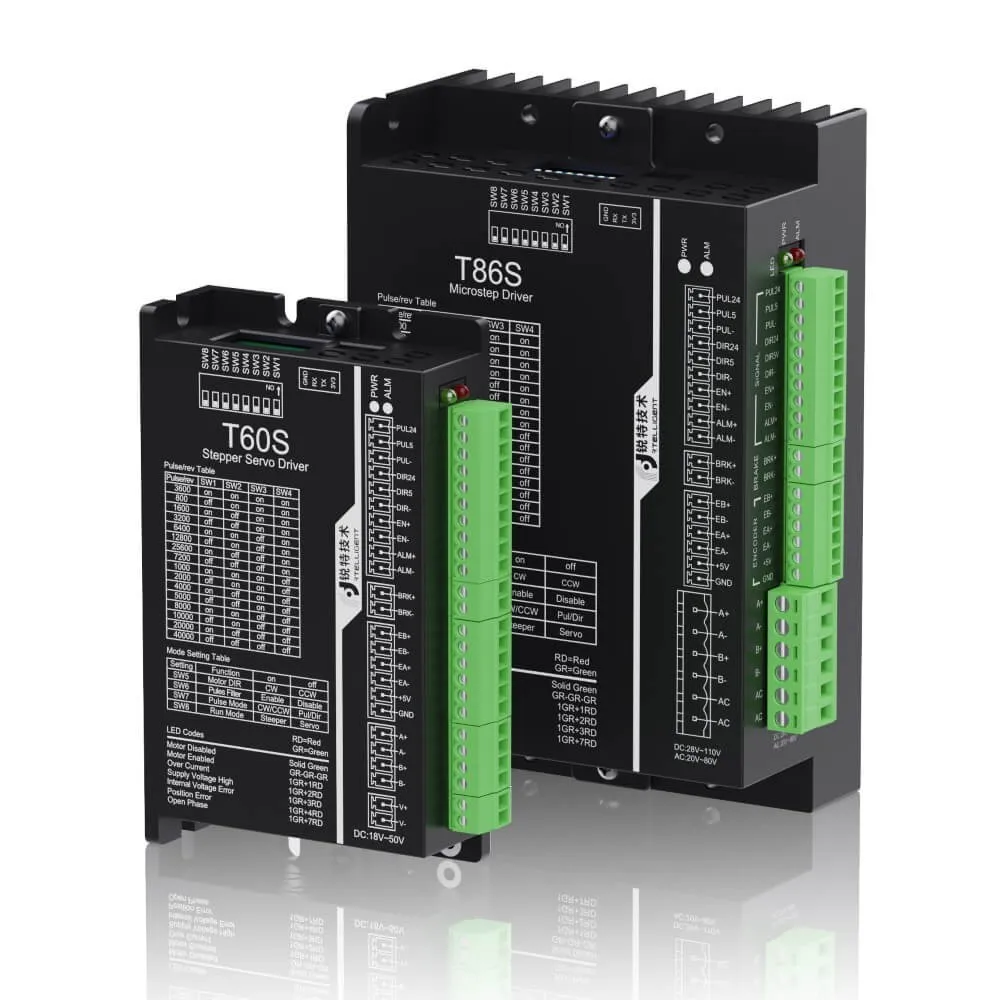

The main difference is power and motor size. The T60S accepts 18-50VDC, supplies up to 6000mA and matches closed loop motors below 60mm; it does not support AC input. The T86S accepts 28-110VDC or 20-80VAC, supplies up to 8000mA and matches closed loop motors below 86mm. Both have an 8-bit extended DIP, one alarm output, direct brake wire connection and a TTL 3.3V serial debugging port.

The T-S series supports non-inductive rotation detection, phase loss alarm and other protection functions. Pulse commands can be PUL+DIR or CW+CCW, selected by DIP switch, through independent 5V and 24V pulse input ports. Direction inversion and the instruction filter are also set by DIP, while pulse width is set in software, which makes the drive easy to connect to most PLCs and motion controllers.

The price of a T60S or T86S drive depends on the model, whether you also need a matching closed loop motor and cable set, and your order quantity. RB Automation shares a written quotation once it knows your motor frame size and supply voltage. Send your requirement through the inquiry form on this page, call +91 8511104864 or email contact@rbautomate.com.

You can buy the T86S and T60S from RB Automation in Ahmedabad, Gujarat, which supplies machine builders and plants across India. RB Automation is an authorised technical partner of Rtelligent, so the team can also match the drive with the right closed loop motor. The office is at E 206, Ganesh Glory 11, Jagatpur Road, off SG Highway, Jagatpur, Ahmedabad, Gujarat 382470.

Yes. OEM machine builders can order T60S and T86S drives in bulk from RB Automation for repeat production. Share your batch or annual quantity, motor frame size and wiring needs, and the team will prepare a volume quotation and support the first setup through the serial debugging port. WhatsApp +91 9898739737 or email contact@rbautomate.com to start.
