Hybrid 2 Phase Closed Loop Stepper Drive DS86

DS86 digital display closed loop stepper drive on a 32-bit DSP with vector control, 0-6A output and 4000 encoder resolution, for 2-phase motors below 86mm.

Get Free Quote Call +91 8511104864
  • Rtelligent technical partner
  • Supply across India

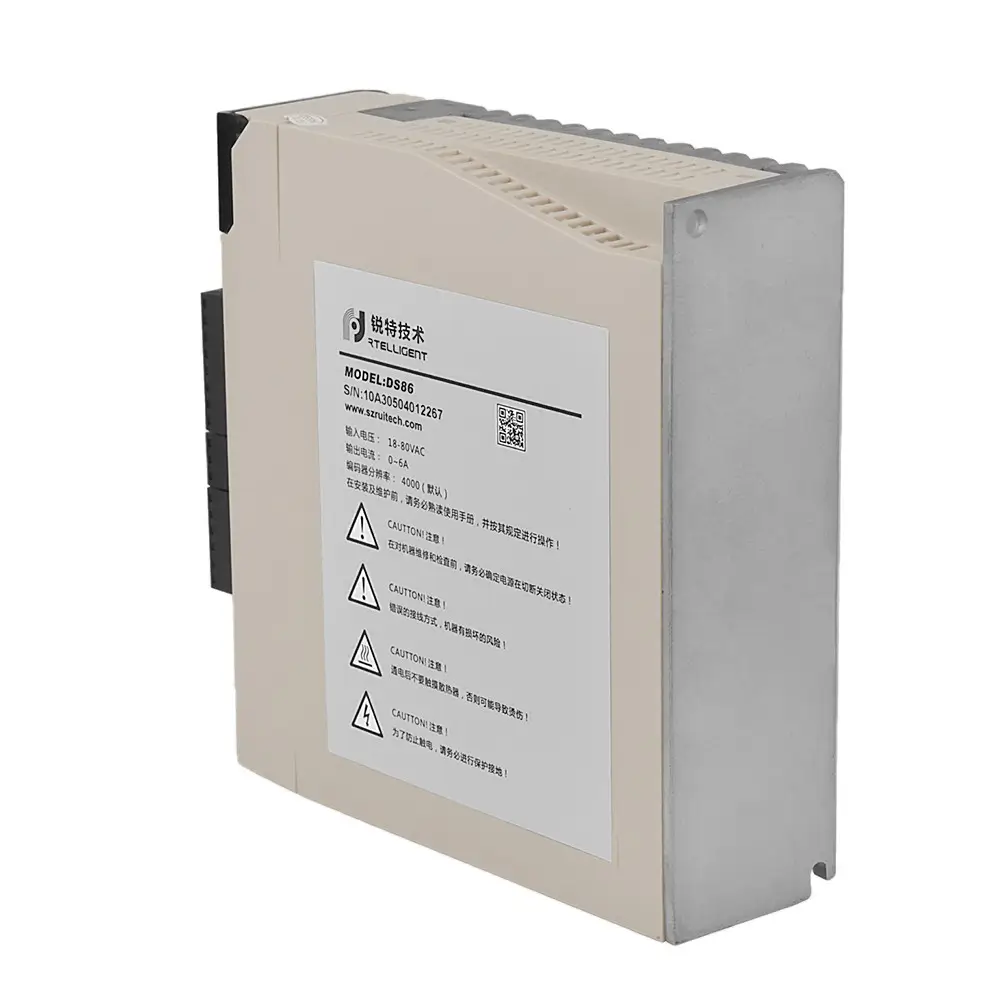

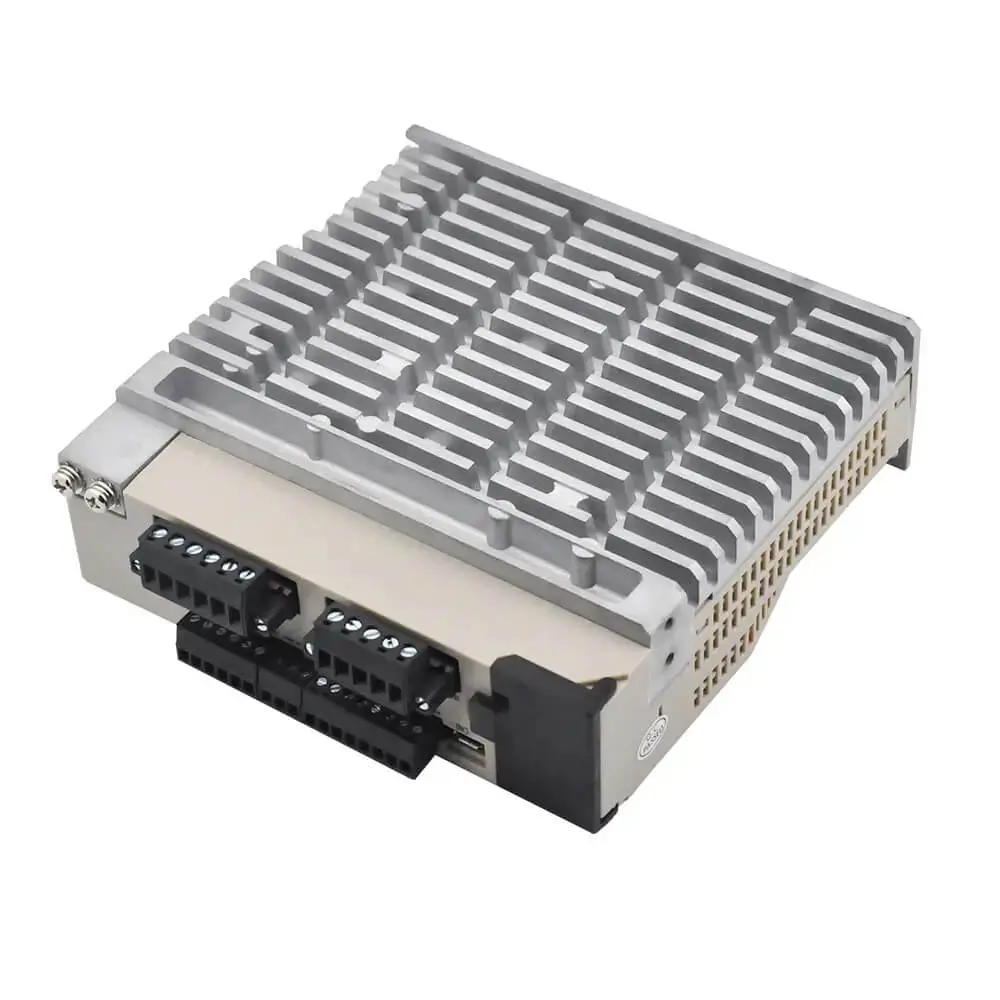

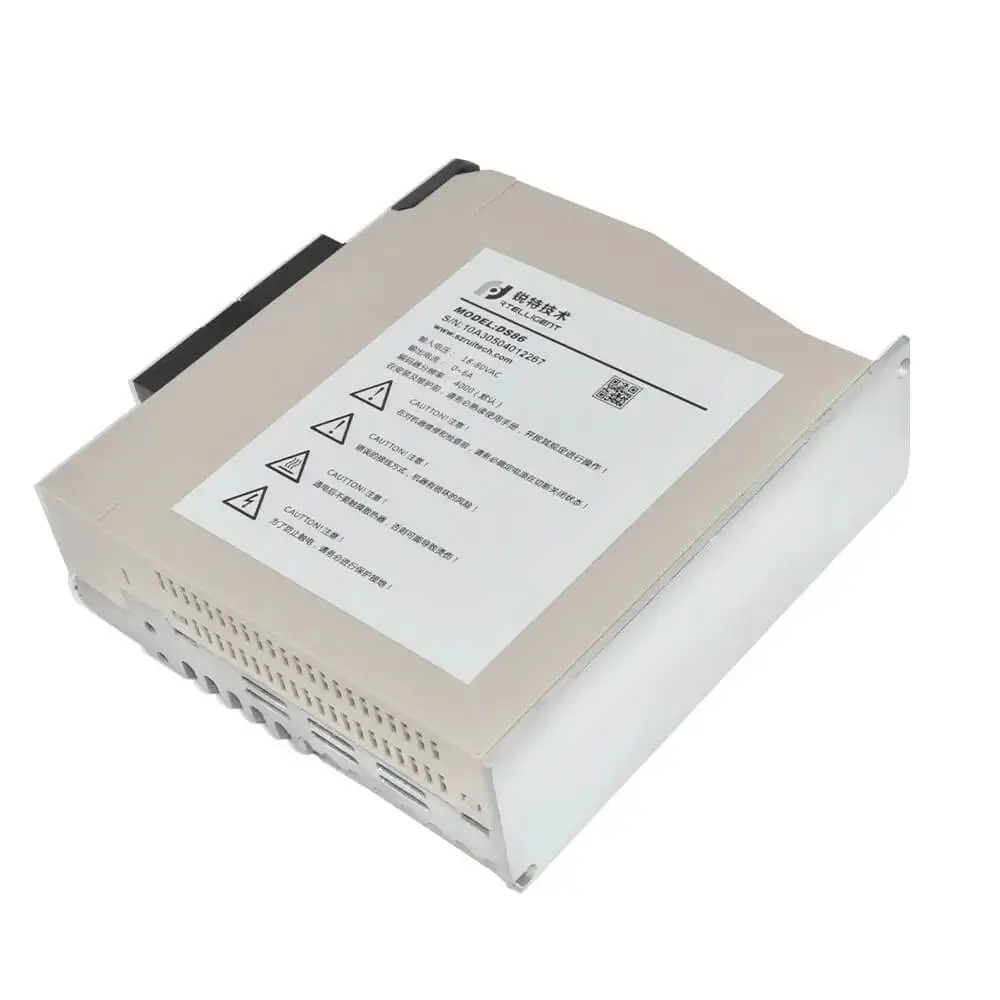

Hybrid 2 Phase Closed Loop Stepper Drive DS86
Hybrid 2 Phase Closed Loop Stepper Drive DS86
Hybrid 2 Phase Closed Loop Stepper Drive DS86
Hybrid 2 Phase Closed Loop Stepper Drive DS86
Hybrid 2 Phase Closed Loop Stepper Drive DS86
Overview

Hybrid 2 Phase Closed Loop Stepper Drive DS86 Overview

The DS86 digital display closed-loop stepper drive is built on an advanced 32-bit DSP platform and incorporates vector control technology along with servo demodulation. This closed-loop stepper servo system delivers smooth operation with low noise and minimal heat generation, ensuring reliable and efficient performance.

DS86 is used to drive the two-phase closed-loop motor below 86mm

  • Pulse mode: PUL&DIR/CW&CCW
  • Signal level: 3.3-24V compatible; serial resistance not required for the application of PLC.
  • Power voltage: 24-100VDC or 18-80VAC, and 75VAC recommended.
  • Typical applications: Auto-screwdriving machine, wire-stripping machine, labeling machine, engraving machine, electronic assembly equipment, etc.
CE certified RoHS compliant
Get a Quote Talk to Engineer

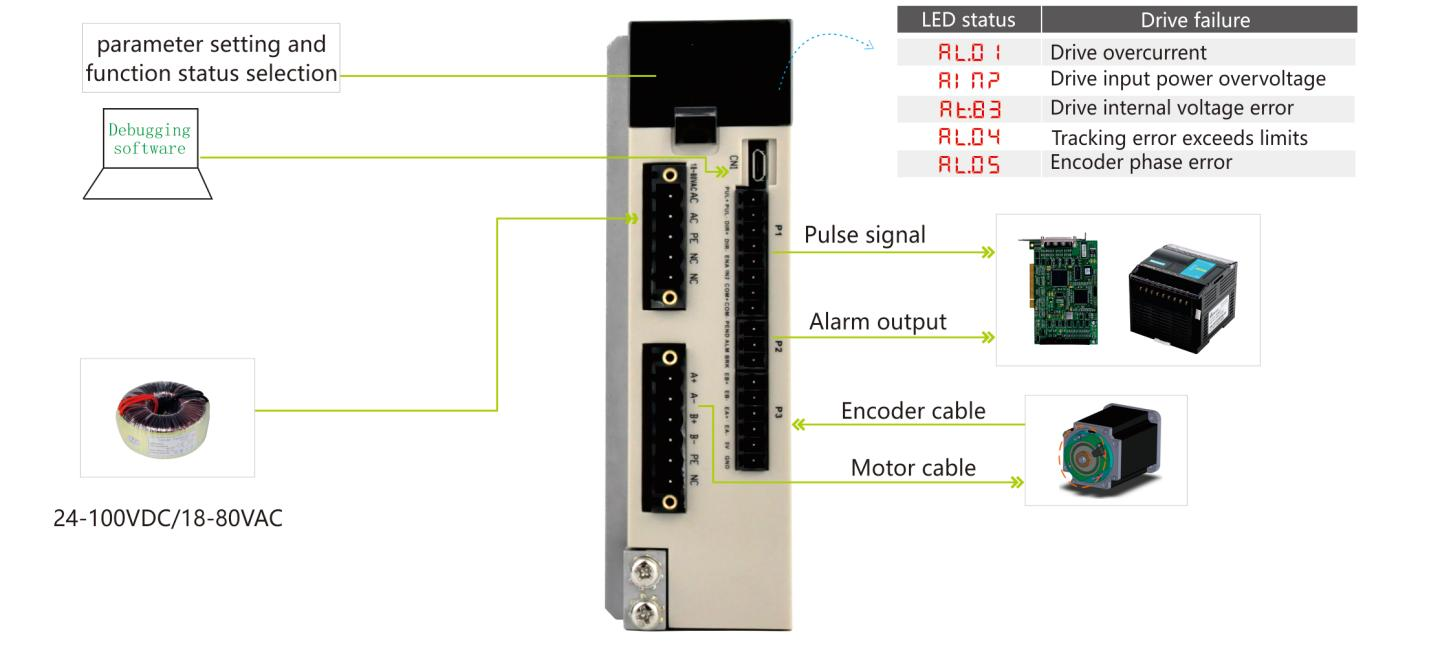

io-speed-regulating-stepper-motor

Pulse Mode


Pulse and direction (PUL + DIR)

io-speed-regulating-stepper-motor

Double pulse (CW +CCW)

ac-speed-regulating-motor
Power supply 18-80VAC
Control interface PUL+DIR; CW+CCW
Microstep settings 200 to 65535
Output current 0~6A (sine peak)
Encoder resolution 4000 (default)
Input signal 3 photoelectric isolation digital signal inputs, high level can be directly received, 5 to 24V DC level
Output signal 1 channel photoelectric isolation digital signal output, maximum tolerance voltage 28V, maximum inputting or pulling current 50mA

Datasheets & Manuals

2 documents for Hybrid 2 Phase Closed Loop Stepper Drive DS86. Free PDF, no form to fill in.

  • Hybrid 2 Phase Closed Loop Stepper Drive DS86 User Manual Manual · PDF · 695 KB Download
  • Stepper System Catalogue 2026 Catalogue · PDF · 19.1 MB Download

Industrial Applications of Hybrid 2 Phase Closed Loop Stepper Drive DS86

RB Automation supplies stepper motors and stepper motor drivers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

SPM Machinery

  • Keyway Milling Machine
  • Gold Refinery Machine
  • Punching Machine
  • Metal Drilling Machine
  • Packing Sheet Cutting Machine

Wood Industry

  • Automatic Edge Bander Machine
  • Auto Panel Saw Machine
  • CNC Machine
  • Engraving Machine

Pharmaceutical Industry

  • Rotary Liquid Filling Machine
  • Linear Liquid Filling Machine
  • Sticker Labeling Machine

Jewellery and Diamond Industry

  • Diamond 4P Cutting Machine
  • Diamond Laser Fiber Cutting Machine
  • Diamond Multi Process Machine

Food Industry

  • Auger Filling Machine

Aluminium and Steel Industry

  • Laser Marking Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right Hybrid 2 Phase Closed Loop Stepper Drive DS86 variant and quote it.

  • Authorised Schneider Electric partner
  • Supply across Gujarat and all India
+91 8511104864 contact@rbautomate.com
FAQs

DS86 Hybrid 2 Phase Closed Loop Stepper Drive FAQs

Straight answers to what buyers ask us most about Hybrid 2 Phase Closed Loop Stepper Drive DS86.

The DS86 is a digital display closed-loop stepper drive from Rtelligent for two-phase closed-loop stepper motors below 86 mm. It is built on a 32-bit DSP platform with vector control and servo demodulation, giving smooth operation with low noise and minimal heat. It accepts pulse and direction (PUL+DIR) or double pulse (CW+CCW) commands.

The DS86 delivers 0 to 6 A output current (sine peak), with microstep settings from 200 to 65535 and a default encoder resolution of 4000. It has 3 photo-isolated digital inputs accepting 5 to 24V DC and 1 photo-isolated output rated for 28V and 50 mA. The page lists a power supply of 18 to 80VAC or 24 to 100VDC, with 75VAC recommended.

Yes. The DS86 signal inputs are compatible with 3.3 to 24V levels, so no series resistor is needed when driving it from a PLC. Typical applications include auto-screwdriving machines, wire-stripping machines, labeling machines, engraving machines and electronic assembly equipment, where smooth and quiet positioning of a two-phase motor is required.

You can buy the DS86 from RB Automation in Ahmedabad, which supplies Rtelligent motion products to machine builders across India. RB Automation is an authorised technical partner of Rtelligent. Call +91 8511104864 or email contact@rbautomate.com with the motor size and quantity, and the team will confirm the drive and motor combination for your axis.

The DS86 price depends on whether you buy the drive alone or with a matching closed-loop motor and cables, and on the quantity. OEMs building several machines can request volume pricing for complete axis sets. Use the inquiry form on this page, or WhatsApp +91 9898739737, and RB Automation will send a quotation for your exact combination.

Yes. RB Automation's team can help match the DS86 to a suitable two-phase closed-loop motor below 86 mm, choose the microstep setting and select the pulse mode that suits your controller. Share your load, speed and controller type at contact@rbautomate.com or on +91 8511104864 before ordering, so the drive and motor are selected correctly.
