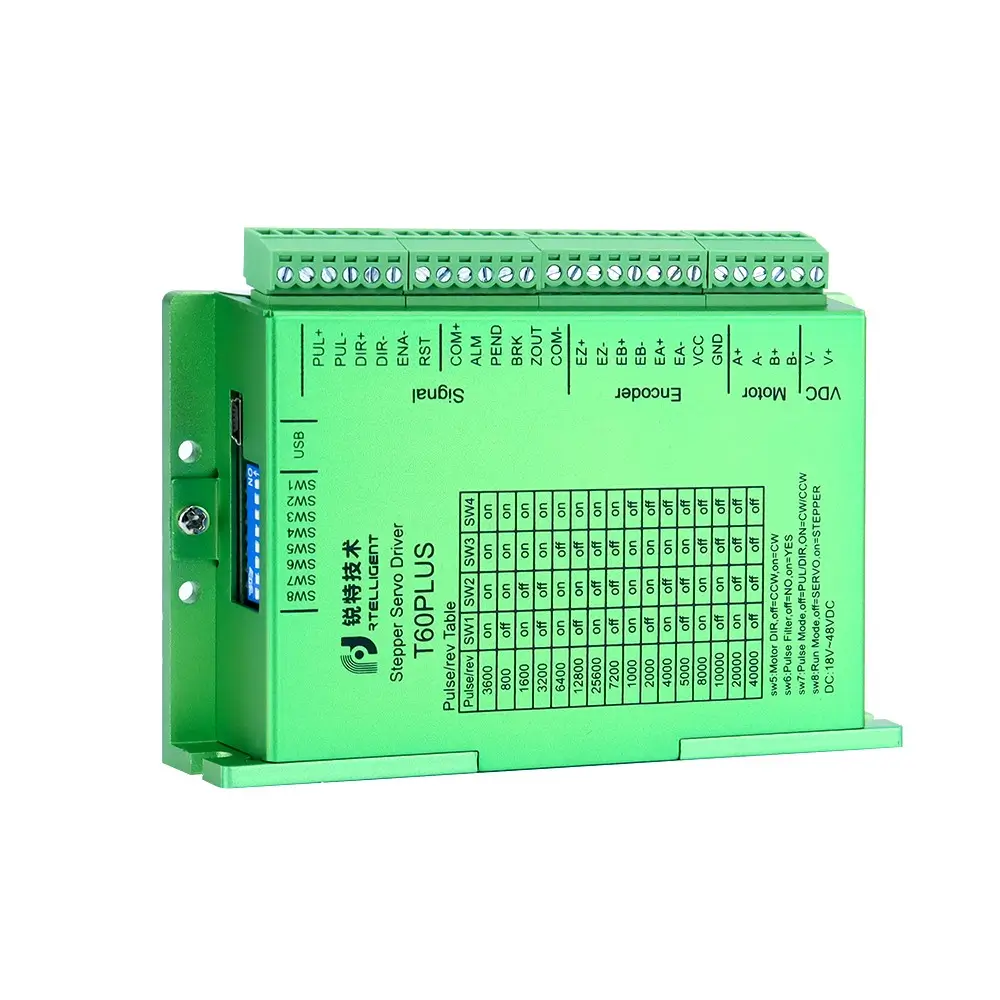

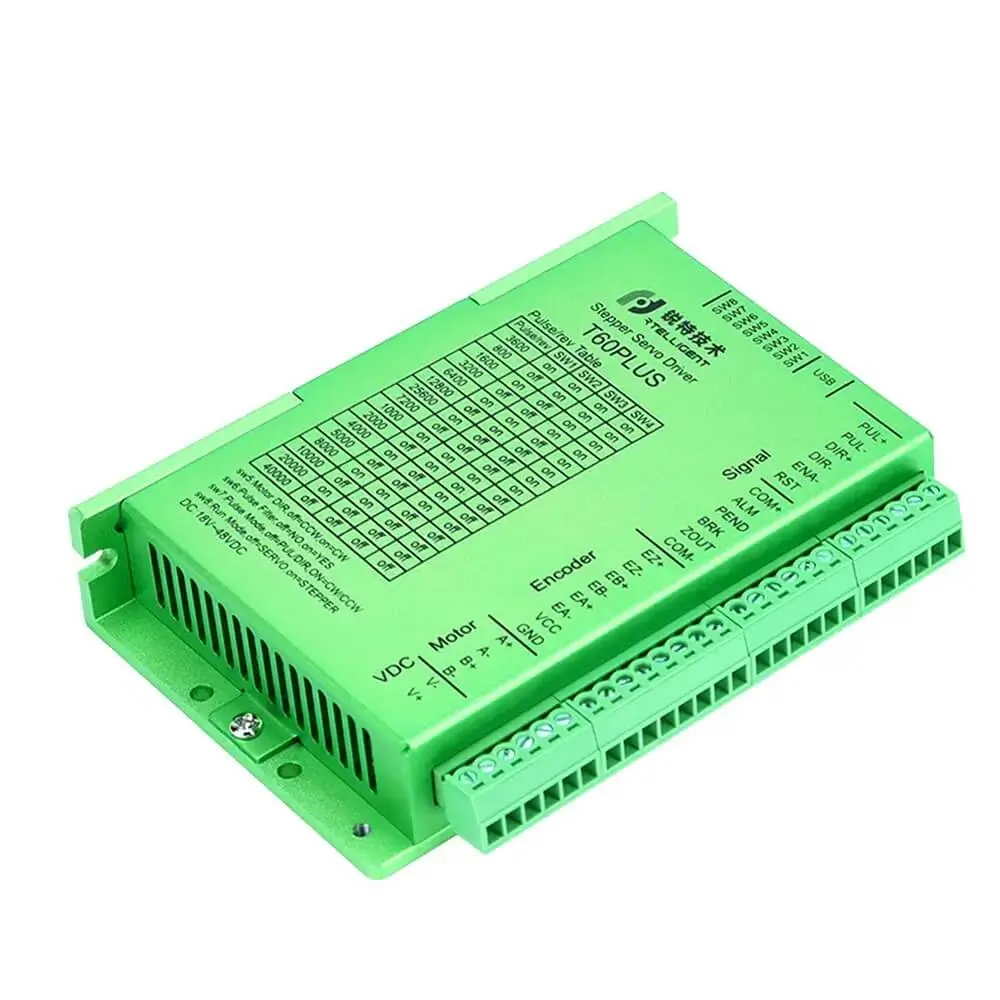

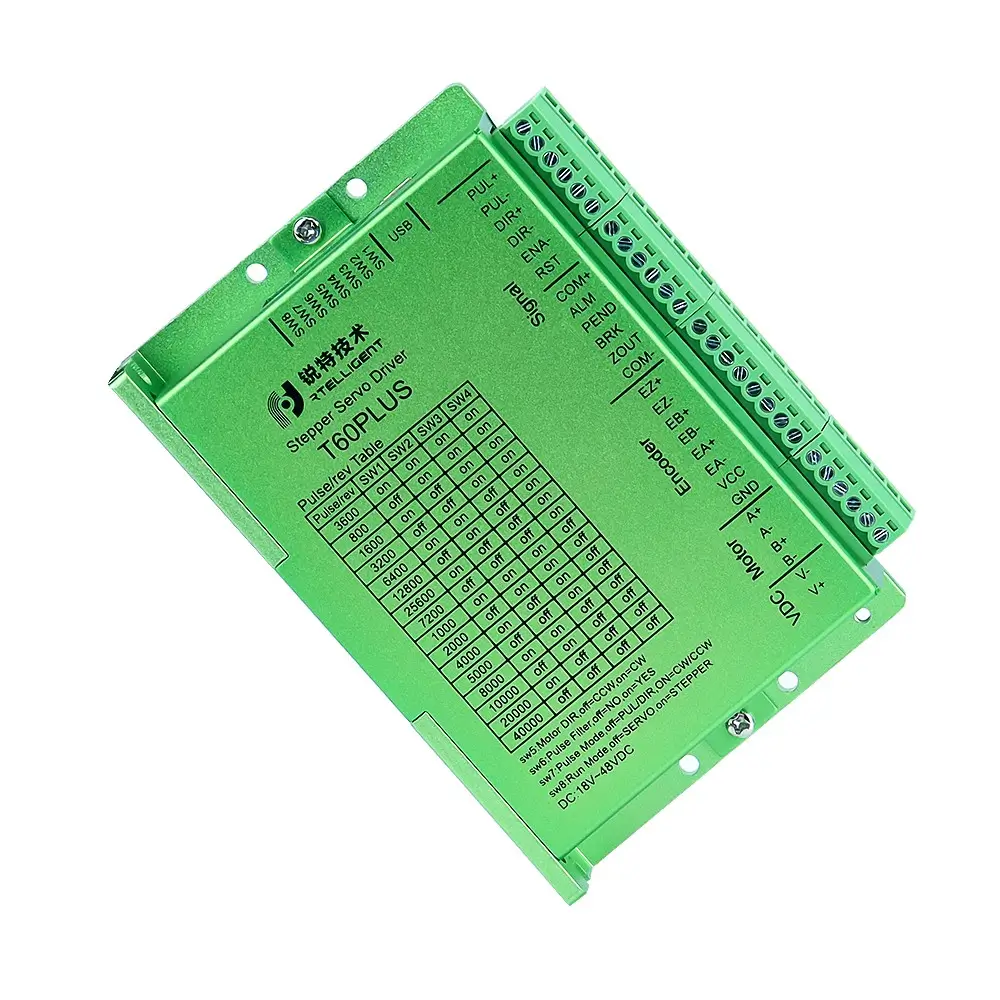

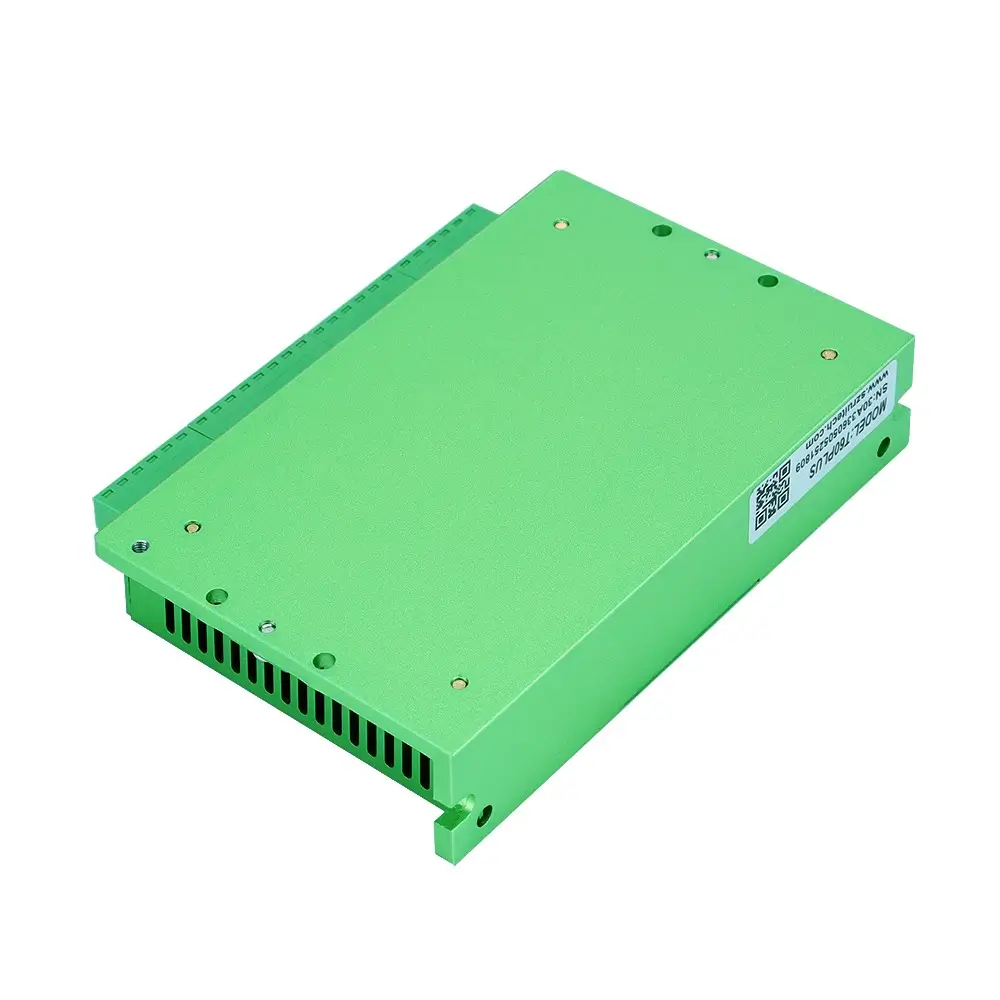

Pulse Control 2 Phase Closed Loop Stepper Drive T60Plus

Name: Pulse Control 2 Phase Closed Loop Stepper Drive T60Plus
Brand: Rtelligent
Rating: 4.5 (100 reviews)

Find trusted Pulse Control 2 Phase Closed Loop Stepper Drive T60Plus suppliers in India delivering high-precision, efficient and robust motion control systems

Get Free Quote Call +91 8511104864 WhatsApp Us

Rtelligent technical partner
Supply across India

Pulse Control 2 Phase Closed Loop Stepper Drive T60Plus

Overview

Pulse Control 2 Phase Closed Loop Stepper Drive T60Plus Overview

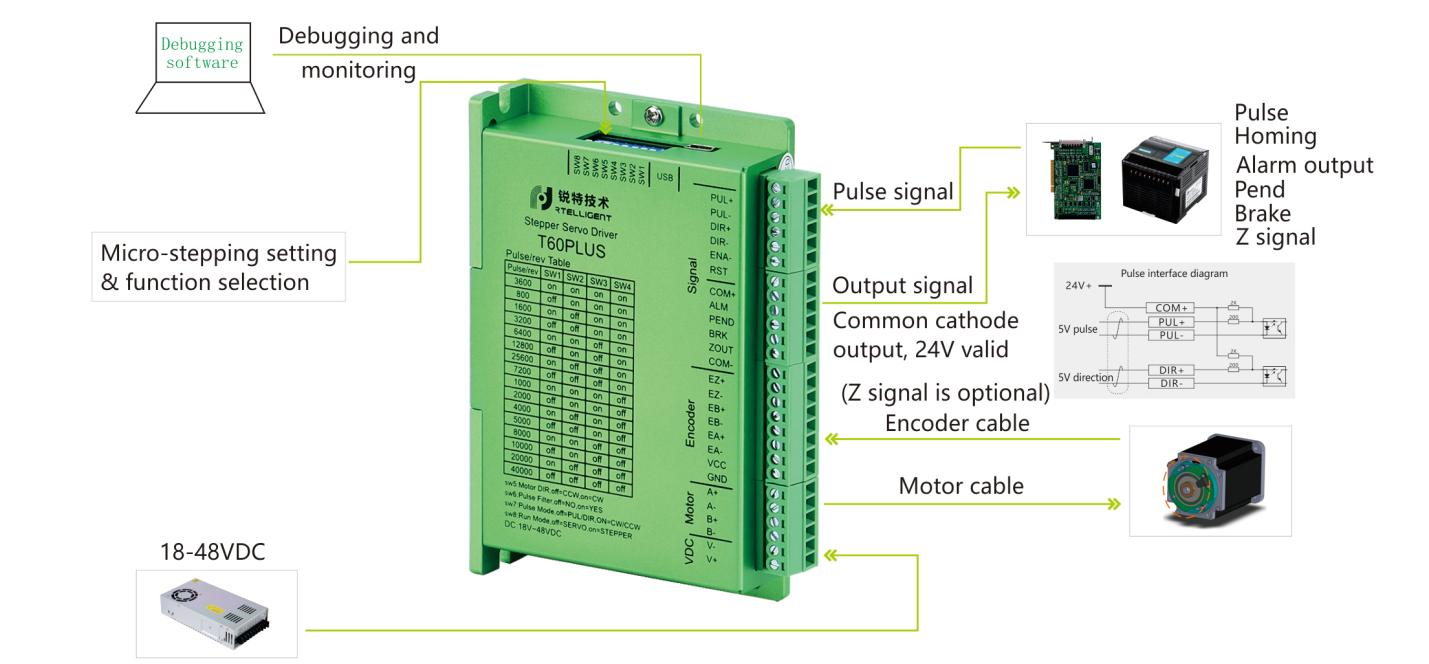

The T60PLUS closed-loop stepper drive features encoder Z-signal input and output capabilities, enabling precise position reference and synchronization. It also includes a built-in mini-USB communication interface, allowing convenient parameter configuration, monitoring, and debugging.

T60PLUS matches closed loop stepper motors with Z signal below 60mm
Pulse mode: PUL&DIR / CW&CCW
Signal level: 5V / 24V
Power voltage: 18–48VDC (36V or 48V recommended)
Typical applications: Auto-screwdriving machine, servo dispenser, wire-stripping machine, labeling machine, medical detector, electronic assembly equipment, etc.

Get a Quote Talk to Engineer

Pulse Mode

The signal interface of standard T series drive is pulse-shaped, and the T60PLUS V3.0 can receive three types of pulse command signals.

Pulse and direction (PUL + DIR)

Double pulse (CW +CCW)

Orthogonal pulse (A/ B orthogonal pulse)

Micro-stepping Setting

Pulse/rev	SW1	SW2	SW3	SW4	Remarks
3600	on	on	on	on	The DIP switch is turned to the “3600” state and the testing software can freely change other subdivisions.
800	off	on	on	on
1600	on	off	on	on
3200	off	off	on	on
6400	on	on	off	on
12800	off	on	off	on
25600	on	off	off	on
7200	off	off	off	on
1000	on	on	on	off
2000	off	on	on	off
4000	on	off	on	off
5000	off	off	on	off
8000	on	on	off	off
10000	off	on	off	off
20000	on	off	off	off
40000	off	off	off	off

Power supply	18–80VAC / 18–110VDC
Control precision	4000 Pulse/r
Pulse mode	Direction&pulse, CW/CCW double pulse, A/B quadrature pulse
Current control	Servo vector control algorithm
Subdivision setting	DIP switch setting, 15 options (or debugging software setting)
Speed range	Conventional 1200~1500rpm, up to 4000rpm
Resonance suppression	Automatic calculation of resonance point to suppress mid-frequency vibration
PID parameter adjustment	Debugging software to adjust motor PID characteristics
Pulse filter	2MHz digital signal filter
Alarm output	Alarm output for overcurrent, overvoltage, position error, etc.

Datasheets & Manuals

2 documents for Pulse Control 2 Phase Closed Loop Stepper Drive T60Plus. Free PDF, no form to fill in.

Pulse Control 2 Phase Closed Loop Stepper Drive T60Plus User Manual Manual · PDF · 352 KB Download
Stepper System Catalogue 2026 Catalogue · PDF · 19.1 MB Download

Industrial Applications of Pulse Control 2 Phase Closed Loop Stepper Drive T60Plus

RB Automation supplies stepper motors and stepper motor drivers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

SPM Machinery

Keyway Milling Machine
Gold Refinery Machine
Punching Machine
Metal Drilling Machine
Packing Sheet Cutting Machine

Wood Industry

Automatic Edge Bander Machine
Auto Panel Saw Machine
CNC Machine
Engraving Machine

Pharmaceutical Industry

Rotary Liquid Filling Machine
Linear Liquid Filling Machine
Sticker Labeling Machine

Jewellery and Diamond Industry

Diamond 4P Cutting Machine
Diamond Laser Fiber Cutting Machine
Diamond Multi Process Machine

Food Industry

Auger Filling Machine

Aluminium and Steel Industry

Laser Marking Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right Pulse Control 2 Phase Closed Loop Stepper Drive T60Plus variant and quote it.

Authorised Schneider Electric partner
Supply across Gujarat and all India

+91 8511104864 WhatsApp contact@rbautomate.com

FAQs

T60Plus Pulse Control 2 Phase Closed Loop Stepper Drive FAQs

Straight answers to what buyers ask us most about Pulse Control 2 Phase Closed Loop Stepper Drive T60Plus.

The Rtelligent T60Plus is a pulse-controlled 2-phase closed loop stepper drive for closed-loop stepper motors with Z signal below 60 mm. It adds encoder Z-signal input and output for precise position reference and synchronisation, plus a built-in mini-USB interface for parameter configuration, monitoring and debugging. It is used on auto-screwdriving, dispensing, wire-stripping and labeling machines.

The T60Plus V3.0 accepts three pulse command types: pulse and direction (PUL + DIR), double pulse (CW + CCW) and A/B orthogonal (quadrature) pulse. The signal level is 5 V or 24 V, a 2 MHz digital signal filter is built in, and control precision is 4000 pulses per revolution, which gives flexibility when connecting to different PLCs and motion controllers.

The T60Plus runs at a conventional 1200-1500 rpm and up to 4000 rpm, using a servo vector control algorithm for current control. It automatically calculates the resonance point to suppress mid-frequency vibration, and motor PID characteristics can be adjusted in the debugging software. Micro-stepping is set with 15 DIP-switch options or in software, and alarms cover overcurrent, overvoltage and position error.

To get a T60Plus quote, send RB Automation your motor frame size, whether the motor has a Z-signal encoder, your controller's pulse type and the quantity needed. Pricing depends on the drive and motor combination and the order volume. Use the inquiry form on this page or email contact@rbautomate.com and the team will respond with a quotation.

You can buy the T60Plus from RB Automation in Ahmedabad, Gujarat, which supplies closed loop stepper drives across India. RB Automation is an authorised technical partner of Rtelligent. Call +91 8511104864, WhatsApp +91 9898739737, or visit E 206, Ganesh Glory 11, Jagatpur Road, off SG Highway, Jagatpur, Ahmedabad, Gujarat 382470.

Yes, RB Automation offers technical support for the T60Plus, including help with parameter configuration and monitoring over the mini-USB interface, PID adjustment and Z-signal wiring for position reference. This is useful for OEMs commissioning a new machine or replacing an existing drive. Share your machine details at contact@rbautomate.com to arrange support.
