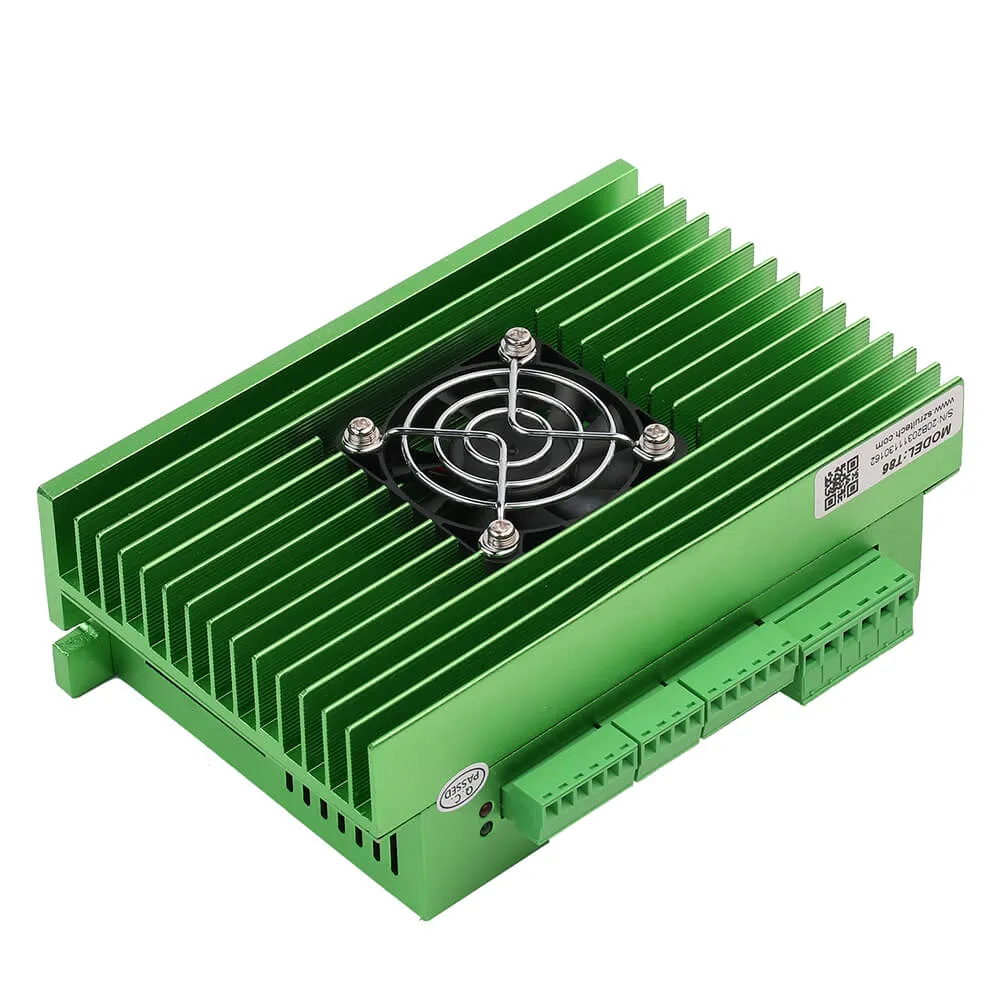

Pulse Control 2 Phase Closed Loop Stepper Drive T86

Overview

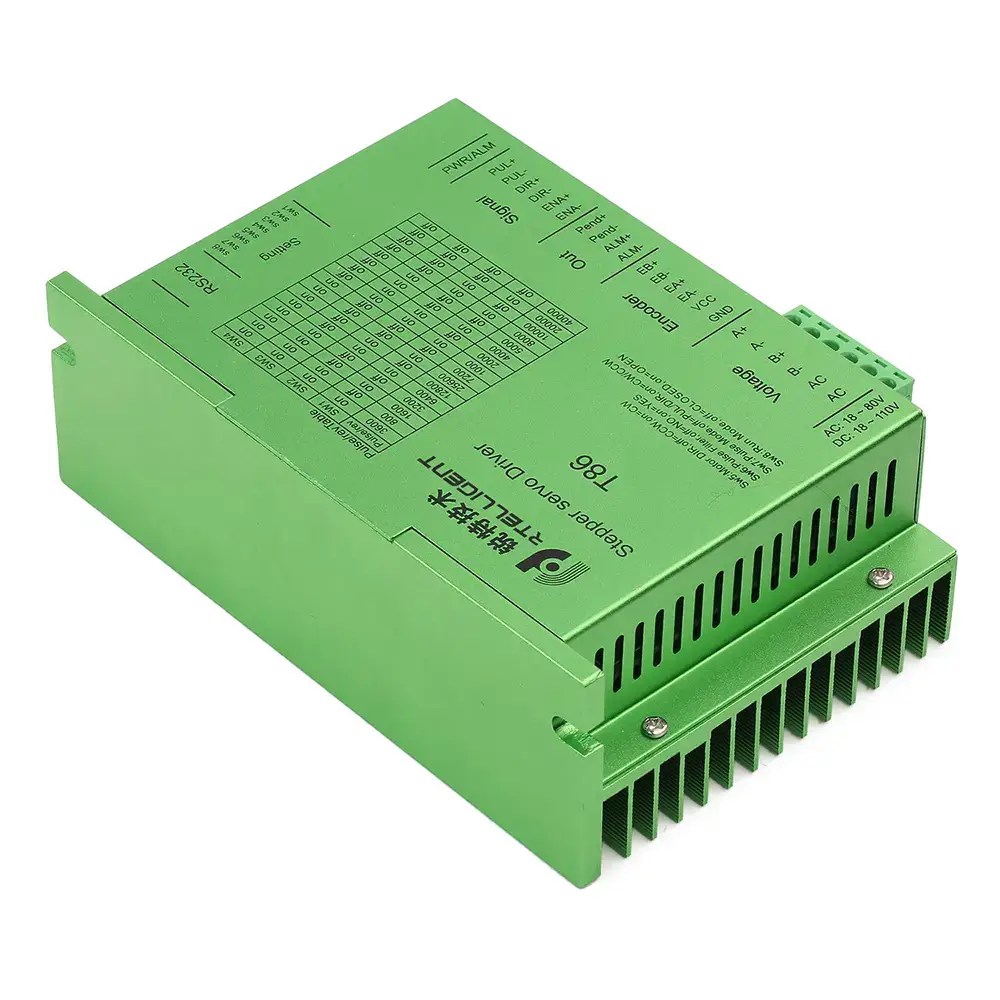

Pulse Control 2 Phase Closed Loop Stepper Drive T86 Overview

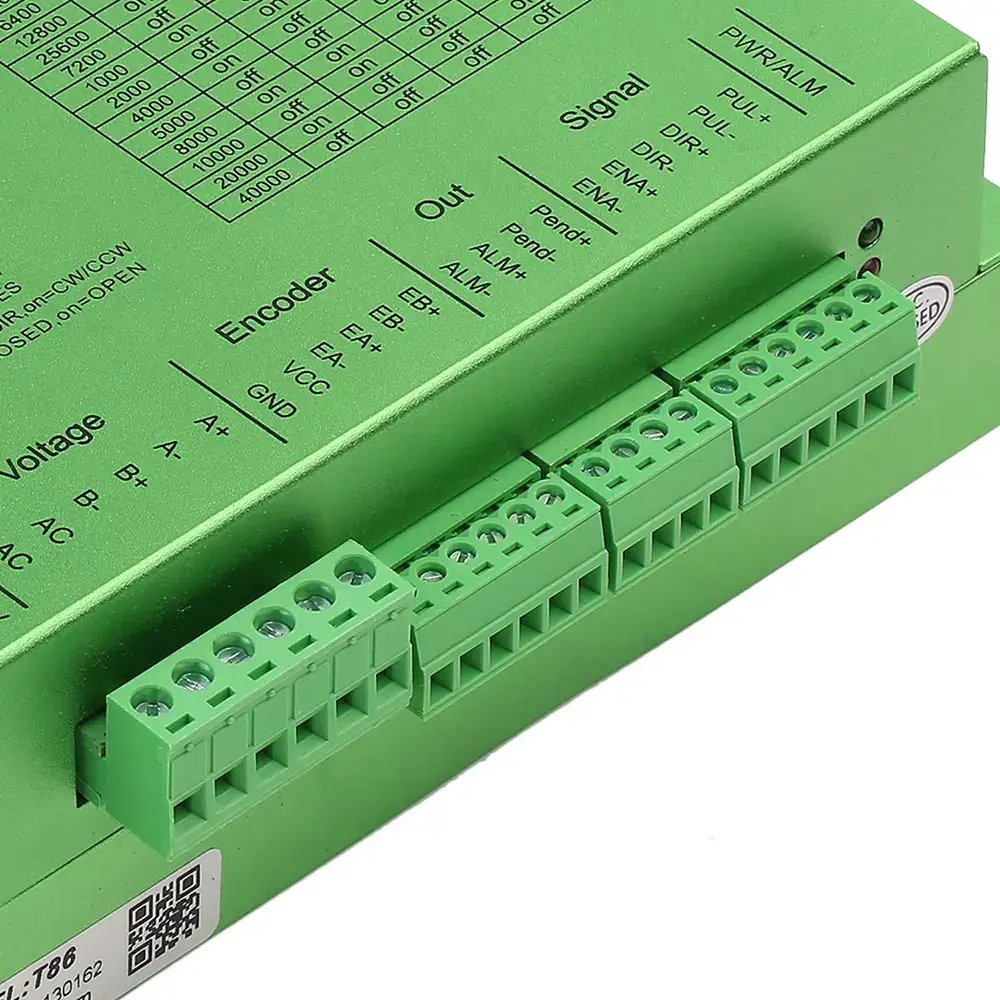

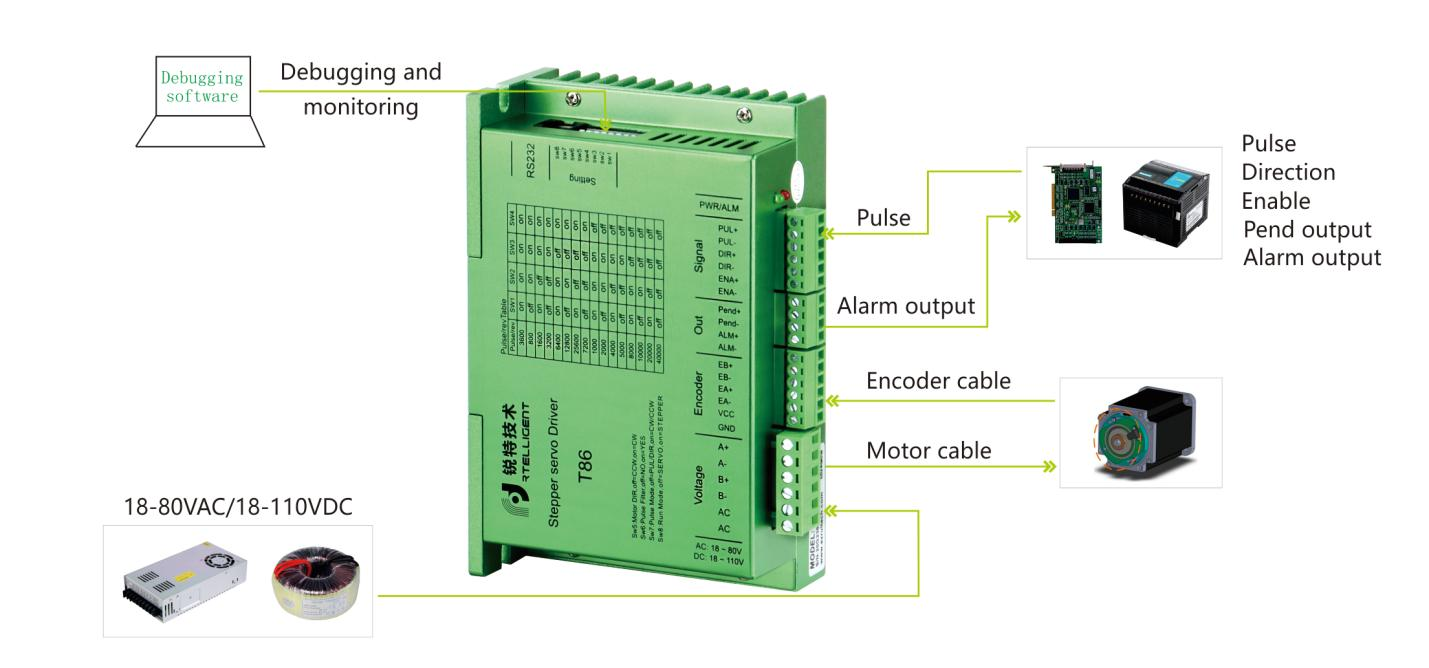

T86 closed loop stepper drive, based on 32-bit DSP platform, built-in vector control technology and servo demodulation function, combined with the feedback of closed-loop motor encoder, makes the closed loop stepper system has the characteristics of low noise, low heat, no loss of step and higher application speed, which can improve the performance of intelligent equipment system in all aspects.

Pulse mode: PUL&DIR/CW&CCW
Signal level: 3.3-24V compatible; serial resistance not required for the application of PLC.
Power voltage: 18-110VDC or 18-80VAC, and 48VAC recommended.
Typical applications: Auto-screwdriving machine, servo dispenser, wire-stripping machine, labeling machine, medical detector

Get a Quote Talk to Engineer

Function Selection

SW5	Running direction	on	Forward
SW5	Running direction			off	Backward
SW6	Command smoothing	on	S-type acceleration and deceleration take effect
SW6	Command smoothing	off	S-type acceleration and deceleration are invalid
SW7	Pulse mode	on	CW/CCW
SW7	Pulse mode	off	PUL&DIR
SW8	Open/closed loop	on	Open loop mode
SW8	Open/closed loop	off	Closed loop mode

Micro-stepping Setting

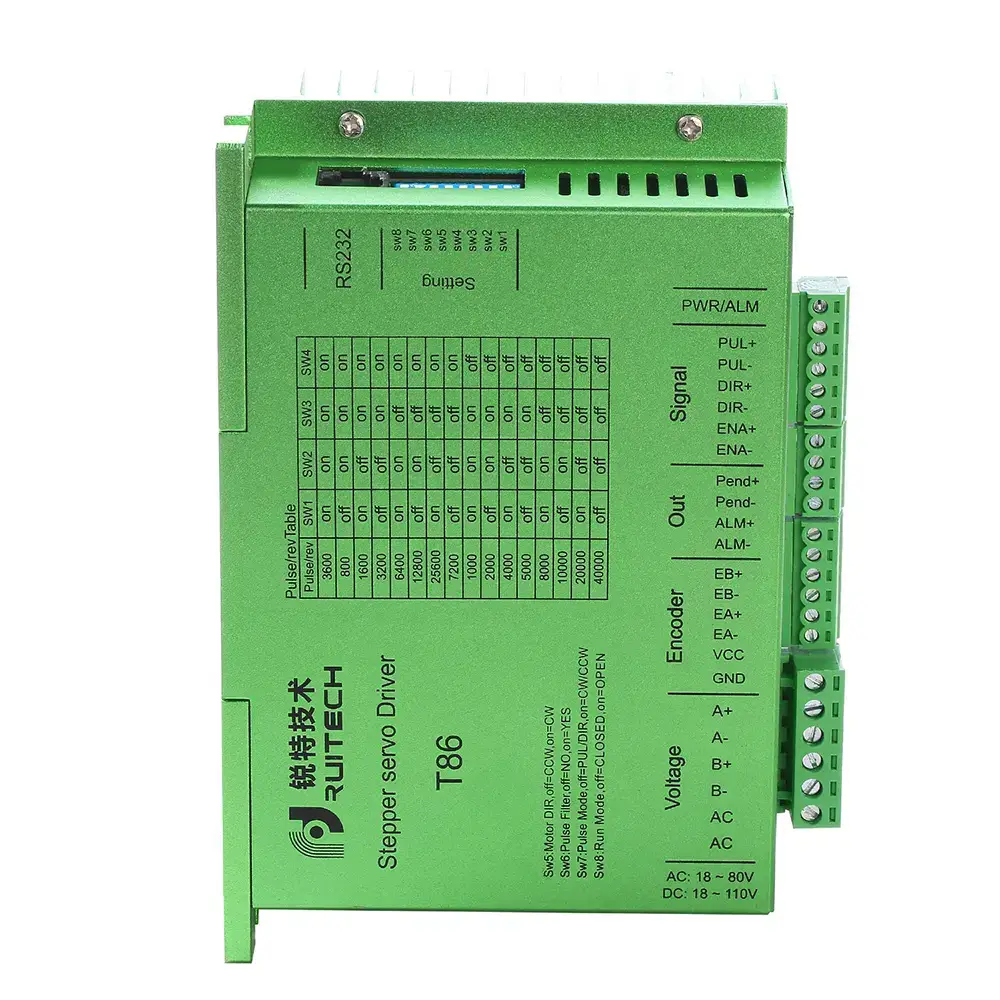

Pulse/rev	SW1	SW2	SW3	SW4	Remarks
3600	on	on	on	on	The DIP switch is turned to the “3600” state and the testing software can freely change other subdivisions.
800	off	on	on	on
1600	on	off	on	on
3200	off	off	on	on
6400	on	on	off	on
12800	off	on	off	on
25600	on	off	off	on
7200	off	off	off	on
1000	on	on	on	off
2000	off	on	on	off
4000	on	off	on	off
5000	off	off	on	off
8000	on	on	off	off
10000	off	on	off	off
20000	on	off	off	off
40000	off	off	off	off

Datasheets & Manuals

2 documents for Pulse Control 2 Phase Closed Loop Stepper Drive T86. Free PDF, no form to fill in.

Pulse Control 2 Phase Closed Loop Stepper Drive T86 User Manual Manual · PDF · 741 KB Download
Stepper System Catalogue 2026 Catalogue · PDF · 19.1 MB Download
