2-Phase Open Loop Stepper Driver - R60
2-Phase Open Loop Stepper Driver - R60
Overview

2-Phase Open Loop Stepper Driver – R60 Overview

The R60 digital 2-phase stepper drive is based on 32-bit DSP platform,with built-in micro-stepping technology & auto tuning of parameters. The drive features low noise, low vibration, low heating and high-speed high torque output.

  • Pulse Mode: PUL&DIR
  • Signal Level: 3.3—24V compatible; series resistance not necessary for the application of PLC.
  • Power Voltage: 18-50V DC supply; 36 or 48V recommended.
  • Typical Applications:Engraving machine , marking machine, cutting machine, plotter, laser, auto assembly equipment, etc.
CE certified RoHS compliant
Get a Quote Talk to Engineer

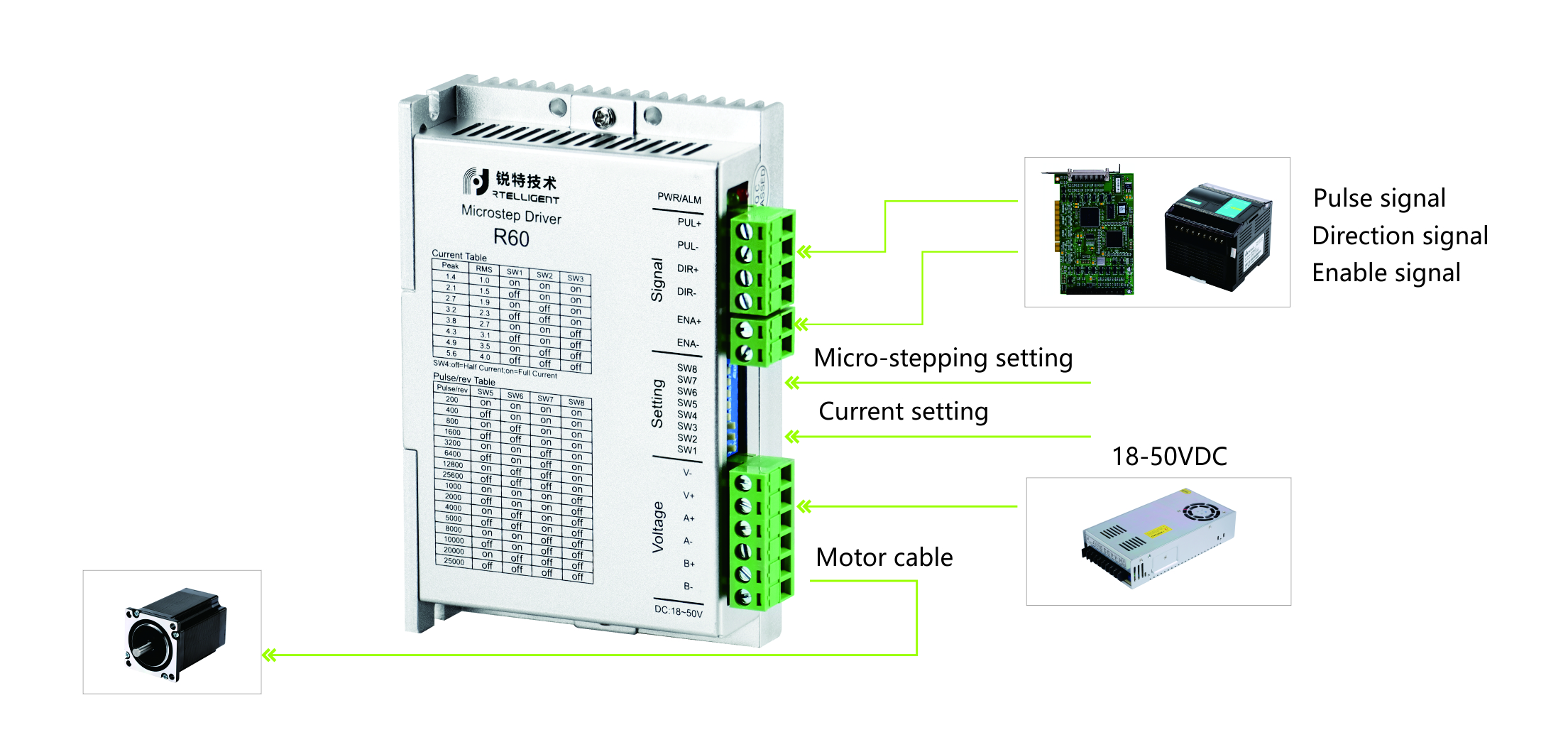

High Performance
On-Site Setup

Working Current Setting

DIP switch reference for setting output current and micro-stepping during commissioning.

Peak Current Average Current SW1 SW2 SW3 Remarks
1.4A 1.0A on on on Other current can be customized.
2.1A 1.5A off on on
2.7A 1.9A on off on
3.2A 2.3A off off on
3.8A 2.7A on on off
4.3A 3.1A off on off
4.9A 3.5A on off off
5.6A 4.0A off off off
On-Site Setup

Micro-stepping Setting

DIP switch reference for setting output current and micro-stepping during commissioning.

Steps/revolution SW5 SW6 SW7 SW8 Remarks
200 on on on on Other subdivisions can be customized.
400 off on on on
800 on off on on
1600 off off on on
3200 on on off on
6400 off on off on
12800 on off off on
25600 off off off on
1000 on on on off
2000 off on on off
4000 on off on off
5000 off off on off
8000 on on off off
10000 off on off off
20000 on off off off
25000 off off off off

Datasheets & Manuals

2 documents for 2-Phase Open Loop Stepper Driver - R60. Free PDF, no form to fill in.

  • 2-Phase Open Loop Stepper Driver - R60 User Manual Manual · PDF · 655 KB Download
  • Stepper System Catalogue 2026 Catalogue · PDF · 19.1 MB Download

Industrial Applications of 2-Phase Open Loop Stepper Driver - R60

RB Automation supplies stepper motors and stepper motor drivers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

SPM Machinery

  • Keyway Milling Machine
  • Gold Refinery Machine
  • Punching Machine
  • Metal Drilling Machine
  • Packing Sheet Cutting Machine

Wood Industry

  • Automatic Edge Bander Machine
  • Auto Panel Saw Machine
  • CNC Machine
  • Engraving Machine

Pharmaceutical Industry

  • Rotary Liquid Filling Machine
  • Linear Liquid Filling Machine
  • Sticker Labeling Machine

Jewellery and Diamond Industry

  • Diamond 4P Cutting Machine
  • Diamond Laser Fiber Cutting Machine
  • Diamond Multi Process Machine

Food Industry

  • Auger Filling Machine

Aluminium and Steel Industry

  • Laser Marking Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right 2-Phase Open Loop Stepper Driver - R60 variant and quote it.

  • Authorised Schneider Electric partner
  • Supply across Gujarat and all India
+91 8511104864 contact@rbautomate.com
FAQs

R60 2-Phase Open Loop Stepper Driver FAQs

Straight answers to what buyers ask us most about 2-Phase Open Loop Stepper Driver.

The R60 is a digital 2-phase open loop stepper drive from Rtelligent built on a 32-bit DSP platform. Built-in micro-stepping and auto tuning of parameters help it run motors with low noise, low vibration and low heating while keeping high torque at speed. It is commonly used on engraving, marking and cutting machines, plotters, lasers and automatic assembly equipment.

The R60 works on an 18-50V DC supply, and 36V or 48V DC is recommended. Its control inputs are 3.3-24V compatible, so PUL and DIR signals from a PLC can be connected without a series resistor. Choose a DC power supply with enough current capacity for the motor current you set on the drive.

Yes. SW1 to SW3 select eight current levels from 1.4A peak (1.0A average) to 5.6A peak (4.0A average), and other currents can be customised. SW5 to SW8 set the resolution from 200 to 25600 steps per revolution, including 1000, 4000, 10000 and 20000 options, and other subdivisions can also be customised on request.

RB Automation supplies R60 stepper drivers from its office in Ahmedabad, Gujarat, and serves customers across India. RB Automation is an authorised technical partner of Rtelligent, so you get selection and setup help along with the product. WhatsApp +91 9898739737 or call +91 8511104864 to check the right setting for your motor and place an order.

Fill in the inquiry form on this page or email contact@rbautomate.com with the number of R60 drivers you need, your motor model and your supply voltage. The quoted price depends on quantity and on whether you add motors or cables, so RB Automation sends a quotation that matches your exact order instead of a general list price.

Yes, the R60 can be ordered in bulk for OEM machines such as engraving, cutting and laser systems. Because the drive supports customised current and subdivision values, RB Automation can agree a standard configuration for your production batch before the order is placed. Share your volume and machine type at contact@rbautomate.com for a bulk quote.
