2-Phase Open Loop Stepper Driver - R86mini

Name: 2-Phase Open Loop Stepper Driver - R86mini
Brand: Rtelligent
Rating: 4.5 (100 reviews)

R86mini 2-phase stepper driver takes 18-80VAC or 24-100VDC, outputs 7.2A per phase and is configured over USB, with built-in S-curve motion and IO speed control. Get a quote.

Get Free Quote Call +91 8511104864 WhatsApp Us

Rtelligent technical partner
Supply across India

Overview

Overview of 2-Phase Open Loop Stepper Driver R86mini

The R86mini is a compact digital two-phase stepper driver that accepts 18~80 V AC or 24~100 V DC and delivers up to 7.2 A per phase. It carries an intelligent motion controller with built-in S-shaped acceleration and deceleration, and a USB port for configuring the drive, so the same unit runs from an external pulse train or from its own internal motion commands triggered over IO.

18~80 V AC or 24~100 V DC, up to 7.2 A per phase
Intelligent motion controller with built-in S-curve acceleration
Configured over USB, with programmable input and output ports
Runs from an external pulse train or its own IO speed control

Get a Quote Talk to Engineer

Technical Details

R86mini Features and Ratings

Working voltage: 18~80 V AC or 24~100 V DC
Maximum phase current 7.2 A (sinusoidal peak), 8 DIP gears, others custom

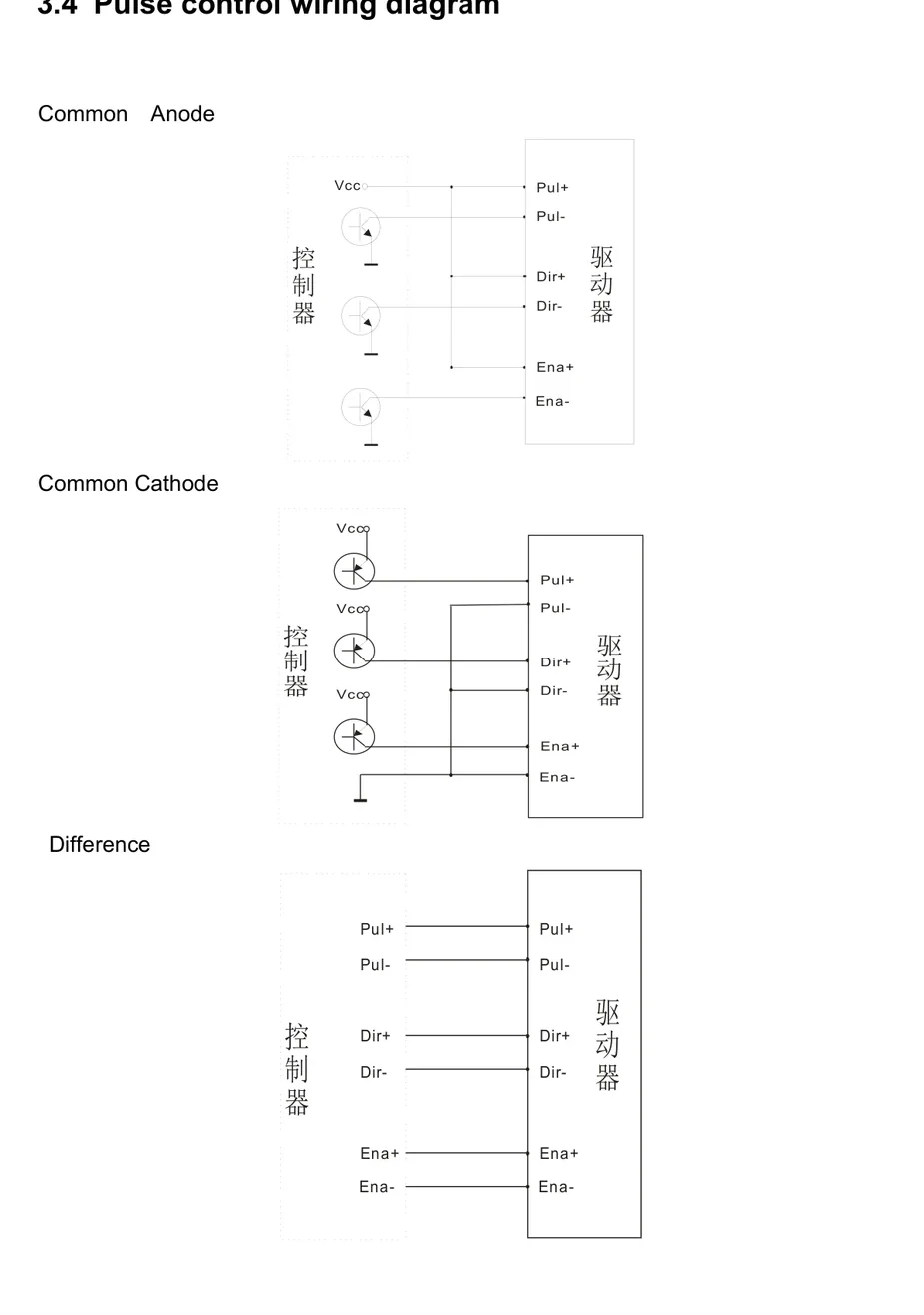

PUL + DIR or CW + CCW pulse modes
Configuration over USB to COM, with the debugging software
Subdivision set by DIP in 16 gears, any resolution from 200 to 65535
IO control mode with 16 user-defined speeds and programmable input and output ports
3 opto-isolated inputs accepting 24 V directly, 1 opto-isolated output (30 V, 50 mA)
Phase loss alarm and half-current standby, IP54, 0~45 °C

On-Site Setup

Working Current Setting

DIP switch reference for setting output current and micro-stepping during commissioning.

Output Current Peak	Output Current RMS	SW1	SW2	SW3
2.40A	2.00A	On	On	On
3.08A	2.57A	Off	On	On
3.77A	3.14A	On	Off	On
4.45A	3.71A	Off	Off	On
5.14A	4.28A	On	On	Off
5.83A	4.86A	Off	On	Off
6.52A	5.43A	On	Off	Off
7.20A	6.00A	Off	Off	Off

On-Site Setup

Micro-stepping Setting

DIP switch reference for setting output current and micro-stepping during commissioning.

Pulse/rev	SW5	SW6	SW7	SW8
400	on	on	on	on
800	off	on	on	on
1600	on	off	on	on
3200	off	off	on	on
6400	on	on	off	on
12800	off	on	off	on
25600	on	off	off	on
51200	off	off	off	on
1000	on	on	on	off
2000	off	on	on	off
4000	on	off	on	off
5000	off	off	on	off
8000	on	on	off	off
10000	off	on	off	off
20000	on	off	off	off
40000	off	off	off	off

Datasheets & Manuals

2 documents for 2-Phase Open Loop Stepper Driver - R86mini. Free PDF, no form to fill in.

2-Phase Open Loop Stepper Driver - R86mini User Manual Manual · PDF · 607 KB Download
Stepper System Catalogue 2026 Catalogue · PDF · 19.1 MB Download

Industrial Applications of 2-Phase Open Loop Stepper Driver - R86mini

RB Automation supplies stepper motors and stepper motor drivers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

SPM Machinery

Keyway Milling Machine
Gold Refinery Machine
Punching Machine
Metal Drilling Machine
Packing Sheet Cutting Machine

Wood Industry

Automatic Edge Bander Machine
Auto Panel Saw Machine
CNC Machine
Engraving Machine

Pharmaceutical Industry

Rotary Liquid Filling Machine
Linear Liquid Filling Machine
Sticker Labeling Machine

Jewellery and Diamond Industry

Diamond 4P Cutting Machine
Diamond Laser Fiber Cutting Machine
Diamond Multi Process Machine

Food Industry

Auger Filling Machine

Aluminium and Steel Industry

Laser Marking Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right 2-Phase Open Loop Stepper Driver - R86mini variant and quote it.

Authorised Schneider Electric partner
Supply across Gujarat and all India

+91 8511104864 WhatsApp contact@rbautomate.com

FAQs

2-Phase Open Loop Stepper Driver - R86mini FAQs

Straight answers to what buyers ask us most about the R86mini.

The R86mini is a digital two-phase open loop stepper driver from Rtelligent. It takes 18~80 V AC or 24~100 V DC, outputs up to 7.2 A per phase and integrates an intelligent motion controller with built-in S-shaped acceleration and deceleration. A USB port is used to configure it, so the drive can be tuned and its IO reassigned without changing the wiring.

The R86mini accepts PUL + DIR or CW + CCW pulse commands from an external controller. It also has an internal pulse mode in which the PUL and DIR terminals become IO inputs, so a start/stop signal and a direction signal run the motor at one of 16 speeds selected by DIP switches SW5 to SW8. Acceleration and deceleration are set in the debugging software.

Output current is set by SW1 to SW3 in 8 gears from 2.40 A to 7.20 A peak, and other currents can be custom-made. SW4 sets the standby current: with SW4 off the winding current falls to 50 percent one second after the pulses stop. SW5 to SW8 set steps per revolution from 400 to 40000, and because control is digital any subdivision between 200 and 65535 can be set.

Yes. The R86mini has a phase loss alarm that detects a loose or broken motor winding both at standstill and while running, and outputs an alarm signal so the machine does not make a wrong move. The LED shows the fault: one green and seven red flashes is motor phase loss, one green and one red is overcurrent, one green and two red is input overvoltage. Below 300 mA the detection can be switched off in the software.

The price of an R86mini depends on quantity and on whether a matching stepper motor, cable or power supply is ordered with it. RB Automation quotes each requirement separately and supplies drive and motor sets to OEM machine builders. Email contact@rbautomate.com or call +91 8511104864 with your motor frame size and quantity.

Both drive the same class of two-phase open loop motors at up to 7.2 A per phase. The R86mini adds a USB configuration port, programmable IO and an internal motion mode with 16 stored speeds, so it can run an axis without an external pulse source. If your controller already sends a pulse train, either drive works; if you want the drive to generate the motion, choose the R86mini. WhatsApp +91 9898739737.
