Fieldbus Stepper Drive Series EST60X2: Technical Overview

The EST60X2 is a dual-axis EtherCAT stepper drive: two axes in one housing, each with its own current setting, IO and brake output. It speaks CoE (CANopen over EtherCAT) to the CiA 402 standard and supports CSP, CSV, PP, PV and homing modes with a minimum sync cycle of 100 microseconds. It runs 2-phase and 3-phase steppers, open loop or closed loop, from 20~80 V DC or 18~50 V AC at 0.5 to 6 A per axis.

  • Two stepper axes in one EtherCAT drive
  • CoE (CANopen over EtherCAT), CiA 402 compliant
  • Open loop and closed loop, 2-phase and 3-phase motors
  • 0.5–6 A per axis, with a direct brake output on each
    Fieldbus Stepper Drive Series - EST60X2 model naming rule
CE certified RoHS compliant
Get a Quote Talk to Engineer
Technical Details

EST60X2 Features and Ratings

  • Two axes in one drive, halving the panel width of two single-axis drives
  • CoE (CANopen over EtherCAT), CiA 402 compliant, minimum sync cycle 100 µs
  • Operation modes: CSP, CSV, PP, PV and Homing
  • Open loop and closed loop control, 2-phase and 3-phase stepper motors
  • 0.5–6 A per axis from 20~80 V DC or 18~50 V AC
  • 8 opto-isolated 24 V inputs and 4 opto-isolated outputs across the two axes
  • Direct brake connection per axis, no external relay
  • 5-digit LED display for live parameters, Type-C debug port, dual RJ45

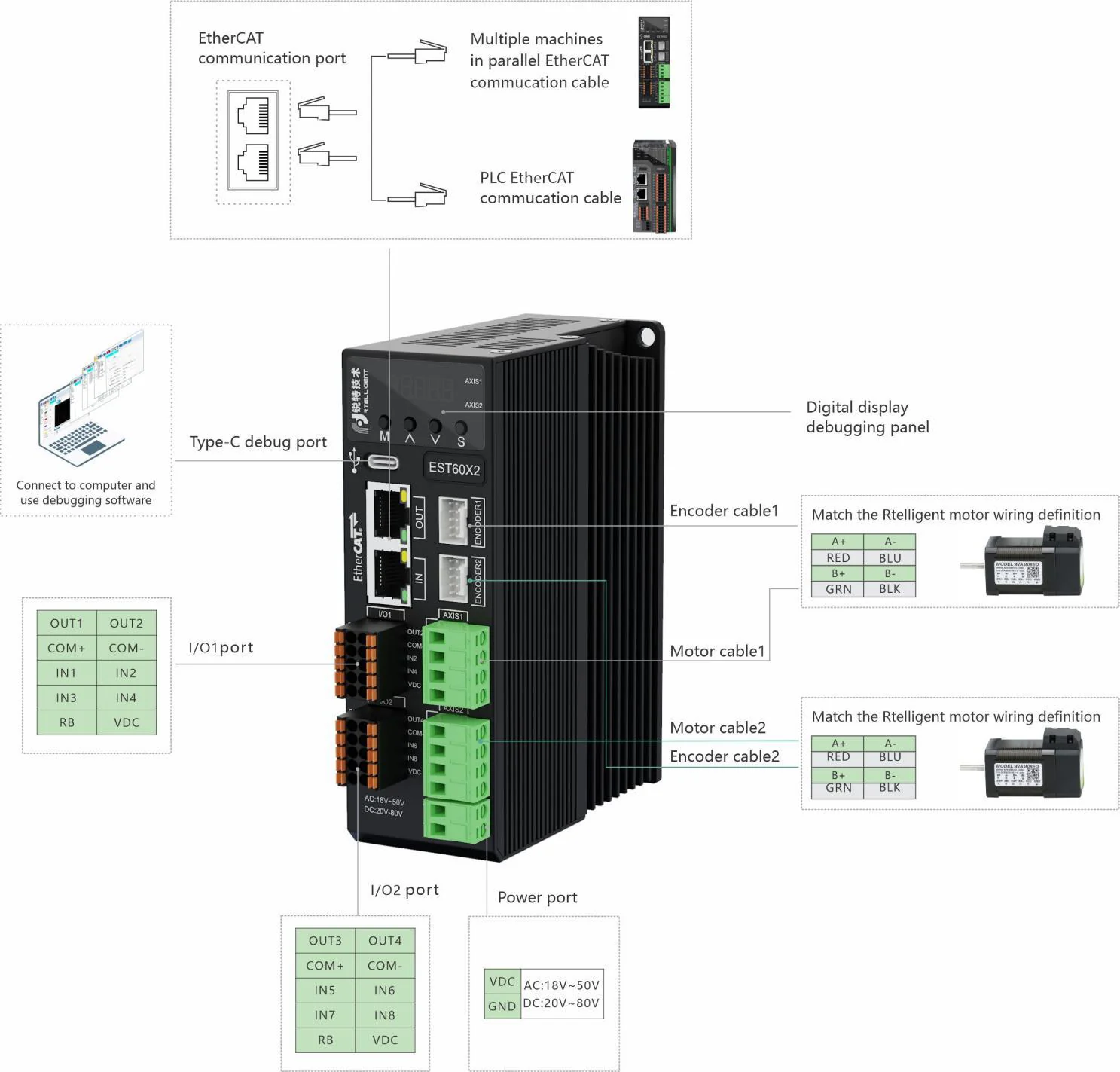

EST60X2 ports, IO, encoder and brake connections
01

Matching motor frame below 86

02

Comply with the CiA402 specification

03

Support multiple internal homing

04

The synchronization period is 500μs

05

Support CSP / CSV / HM / PP / PV control mode

06

Support multi-axis

Item EST60X2
Axes Two, one drive per axis in a single housing
Output current 0.5–6A per axis
Supply voltage 20–80VDC or 18–50VAC
Control method Open loop and closed loop
Compatible motors 2-phase and 3-phase steppers; closed loop up to 60mm frame
Bus protocol EtherCAT with CoE (CANopen over EtherCAT), CiA 402 compliant
Operation modes CSP, CSV, PP, PV and Homing
Minimum sync cycle 100µs
Encoder interface Incremental quadrature, resolution 0–65535
Digital inputs 8 opto-isolated, common anode, 24V (4 per axis)
Digital outputs 4 opto-isolated: alarm, positioning complete, general output
Output rating 30V, 100mA sink or source, common cathode
Communication interface Dual RJ45 for EtherCAT in and out
Brake interface Direct brake connection, no external relay needed
Display 5-digit LED for live parameter monitoring and adjustment
Debug interface Type-C

Datasheets & Manuals

2 documents for Fieldbus Stepper Drive Series - EST60X2. Free PDF, no form to fill in.

  • Fieldbus Stepper Drive Series - EST60X2 User Manual Manual · PDF · 4.6 MB Download
  • Stepper System Catalogue 2026 Catalogue · PDF · 19.1 MB Download
