RSDA Series AC Servo Motor
RSDA Series AC Servo Motor
Overview

RSDA Series AC Servo Motor Overview

These AC servo motors feature an optimized magnetic circuit design based on SMD technology and use rare-earth neodymium-iron-boron permanent magnet rotors to deliver high torque density, strong peak torque, low noise, reduced temperature rise, and lower current consumption. The RSDA series is built with an ultra-short body to save installation space. An optional permanent-magnet brake offers quick, sensitive response, making it ideal for Z-axis applications.

  • Rated voltage: 220VAC
  • Rated power range: 100W to 1kW
  • Frame sizes: 60mm / 80mm
  • Encoder options: 17-bit magnetic / 23-bit optical absolute encoder
  • Designed for low noise and minimal temperature rise
  • Supports overload capacity up to 3×
CE certified RoHS compliant
Get a Quote Talk to Engineer
Model Code

Naming Rule

How to read the model number and order the exact RSDA Series AC Servo Motor variant you need.

RSNA
1 M
2 06
3 J
4 13
5 30
6 A
7 -
 Z
8

  • Product series
  • Motor interia code
    S: Small inertia
    M: Medium inertia
    H: large inertia
  • Motor flange size
    06: 60mm 13: 130mm
  • Encoder resolution
    J: 17 bits magnetic programmed single figure absolute value
    G: 17 bits magnetic programmed multi-turn absolute value
    L: 23 bit optical multi-turn absolute value
  • Motor rated torque
    13: 1.3N.M 150: 15N.M
  • Motor rated speed
    30: 3000rpm
  • Output mode
    A: Wire type C: Connector type
  • Brake code
    Z: With brake

*Model naming rules are only used for model meaning analysis.
For specific optional models, please refer to the details page.

Overview

AC Servo Motor Model below Frame Size 80(mm)

Motor RSDA-H06J0630C V3.0 RSDA-H06J1330C V3.0 RSDA-H08J2430C V3.0 RSDA-H08J3230C V3.0
Rated power (W) 200 400 750 1000
Rated voltage (V) 220 220 220 220
Rated current (A) 1.9 2.5 4.9 5
Rated torque (N.M) 0.64 1.27 2.39 3.2
Maximum torque (N.M) 1.28 2.54 4.78 6.4
Rated speed (rpm) 3000 3000 3000 3000
Maximum speed (rpm) 5000 5000 5000 4000
Back EMF (V/Krpm) 23.5 38.5 34 45
Torque constant (N.M/A) 0.33 0.5 0.49 0.65
Wire resistance (Ω,20℃) 8.4 6.5 1.7 1.5
Wire inductance (mH,20℃) 15 14.6 8.2 5.5
Rotational inertia (×10⁻⁴ kg·m²) 0.2
Brake 0.25		 0.5
Brake 0.6		 1.5
Brake 1.7		 1.9
Brake 2.1
Length L (mm) 70.5
Brake 100.5		 89
Brake 119		 97
Brake 135		 109
Brake 147

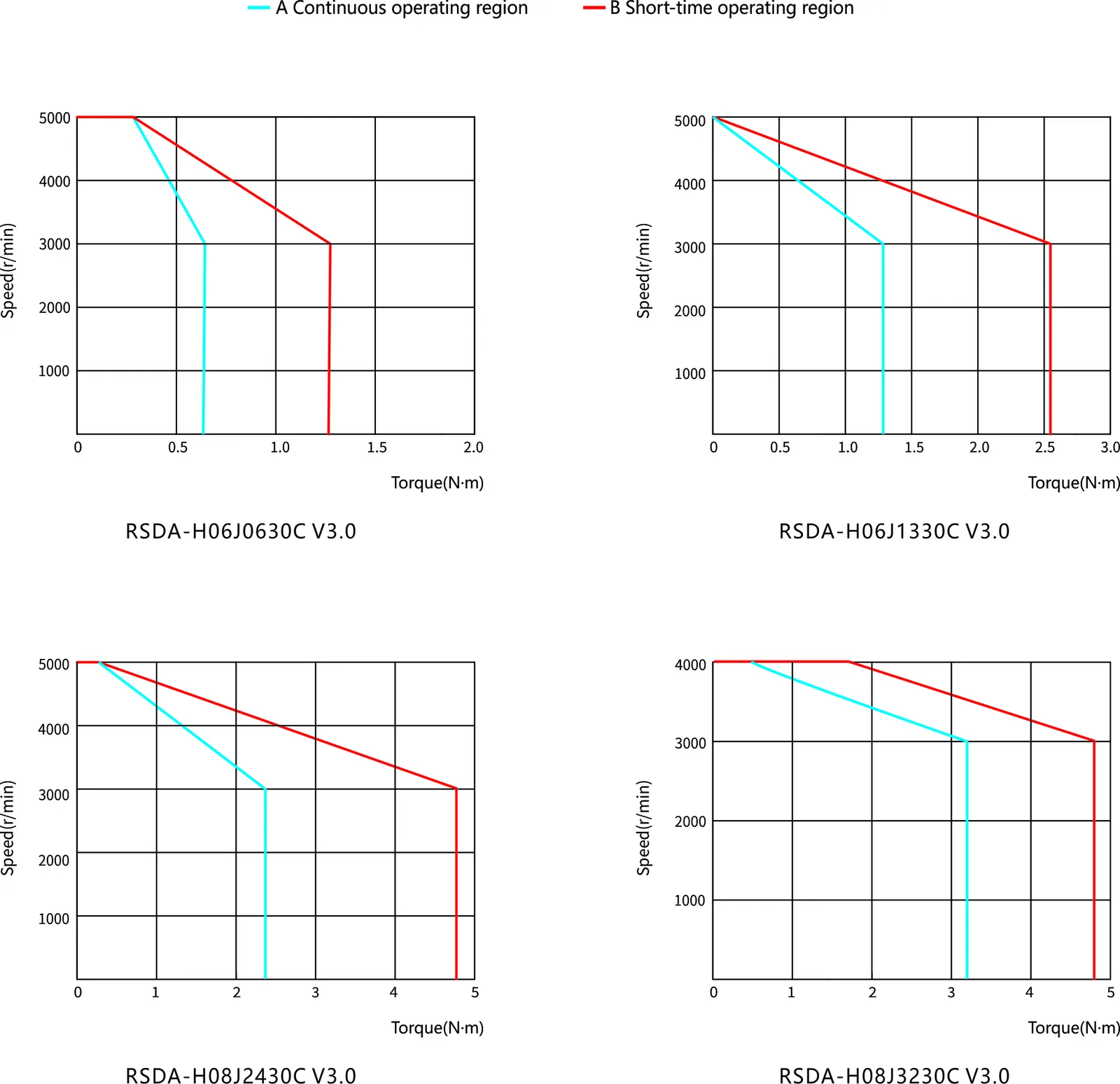

High Performance

Datasheets & Manuals

9 documents for RSDA Series AC Servo Motor. Free PDF, no form to fill in.

  • Motion Control Products Catalogue 2026 Catalogue · PDF · 24.6 MB Download
  • RSDA-H06JGL0630C Datasheet Datasheet · PDF · 530 KB Download
  • RSDA-H06JGL0630C-Z Datasheet Datasheet · PDF · 562 KB Download
  • RSDA-H06JGL1330C Datasheet Datasheet · PDF · 527 KB Download
  • RSDA-H06JGL1330C-Z Datasheet Datasheet · PDF · 558 KB Download
  • RSDA-H08JGL2430C Datasheet Datasheet · PDF · 530 KB Download
  • RSDA-H08JGL2430C-Z Datasheet Datasheet · PDF · 561 KB Download
  • RSDA-H08JGL3230C Datasheet Datasheet · PDF · 531 KB Download
  • RSDA-H08JGL3230C-Z Datasheet Datasheet · PDF · 143 KB Download

Industrial Applications of RSDA Series AC Servo Motor

RB Automation supplies AC servo drives, servo motors and servo reducers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

Aluminium and Steel Industry

  • Laser Marking Machine
  • Laser Cutting Machine
  • Pipe Cutting Machine
  • Drilling Machine
  • Keyway Milling Machine
  • Sheet Cutting Machine

Pharmaceutical Industry

  • Rotary Liquid Filling Machine
  • Linear Liquid Filling Machine
  • Powder Filling Machine
  • Sticker Labeling Machine

Food Industry

  • Cup Cone Filling Machine
  • Candy Making Machine
  • Pouch Packaging Machine
  • Auger Filling Machine

SPM Machinery

  • Keyway Milling Machine
  • PVC Pipe Cutting Machine
  • Metal Drilling Machine
  • Busbar Bending Machine

Jewellery and Diamond Industry

  • Diamond 4P Cutting Machine
  • Diamond Laser Fiber Cutting Machine
  • Diamond Multi Process Machine

Wood Industry

  • CNC Machine
  • Engraving Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right RSDA Series AC Servo Motor variant and quote it.

  • Authorised Schneider Electric partner
  • Supply across Gujarat and all India
+91 8511104864 contact@rbautomate.com
FAQs

Rtelligent RSDA Series AC Servo Motor FAQs

Straight answers to what buyers ask us most about RSDA Series AC Servo Motor.

The RSDA series is a 220VAC AC servo motor range from Rtelligent with an ultra-short body that saves installation space. It uses an SMD-optimised magnetic circuit and rare-earth neodymium-iron-boron permanent magnet rotors for high torque density, strong peak torque, low noise, reduced temperature rise and lower current consumption. Frame sizes are 60 mm and 80 mm.

The listed RSDA models cover 200 W, 400 W, 750 W and 1000 W at 220 V, with rated torque of 0.64, 1.27, 2.39 and 3.2 N·m and maximum torque of 1.28, 2.54, 4.78 and 6.4 N·m. Rated speed is 3000 rpm, with a maximum of 5000 rpm on the 200 W to 750 W models and 4000 rpm on the 1 kW model.

The RSDA body is 70.5 mm long for the 200 W model, 89 mm for 400 W, 97 mm for 750 W and 109 mm for 1 kW, which suits compact machines where axial space is tight. An optional permanent-magnet brake adds 30 to 38 mm and gives quick, sensitive response, making the motor a good fit for vertical Z-axis applications.

RSDA motors are offered with a 17-bit magnetic absolute encoder or a 23-bit optical absolute encoder. In listed models such as RSDA-H06J1330C V3.0, the J code denotes a 17-bit magnetic single-turn absolute encoder, H denotes large inertia and the C suffix indicates connector-type output. Tell RB Automation which servo drive you use so the encoder and cables match.

RSDA servo motor price depends on the power rating, encoder type, brake option, connector style, whether you also need a matching servo drive and cables, and the quantity. RB Automation quotes motor and drive sets for exact configurations. Share the model code or your torque and speed requirement via the inquiry form on this page or call +91 8511104864.

RB Automation in Ahmedabad supplies Rtelligent RSDA servo motors to OEMs and plants in Gujarat and across India, including bulk quantities for series machine builds. RB Automation is an authorised technical partner of Rtelligent. Email contact@rbautomate.com or WhatsApp +91 9898739737 with the required power, brake option and quantity for a quote.
