RSHA Series AC Servo Motor

RSHA series AC servo motor, 200W to 1kW in 60/80mm frames, with 17-bit magnetic or 23-bit optical absolute encoder, optional brake and 3x overload. Get a quote.

Get Free Quote Call +91 8511104864
  • Rtelligent technical partner
  • Supply across India
RSHA Series AC Servo Motor
RSHA Series AC Servo Motor
Overview

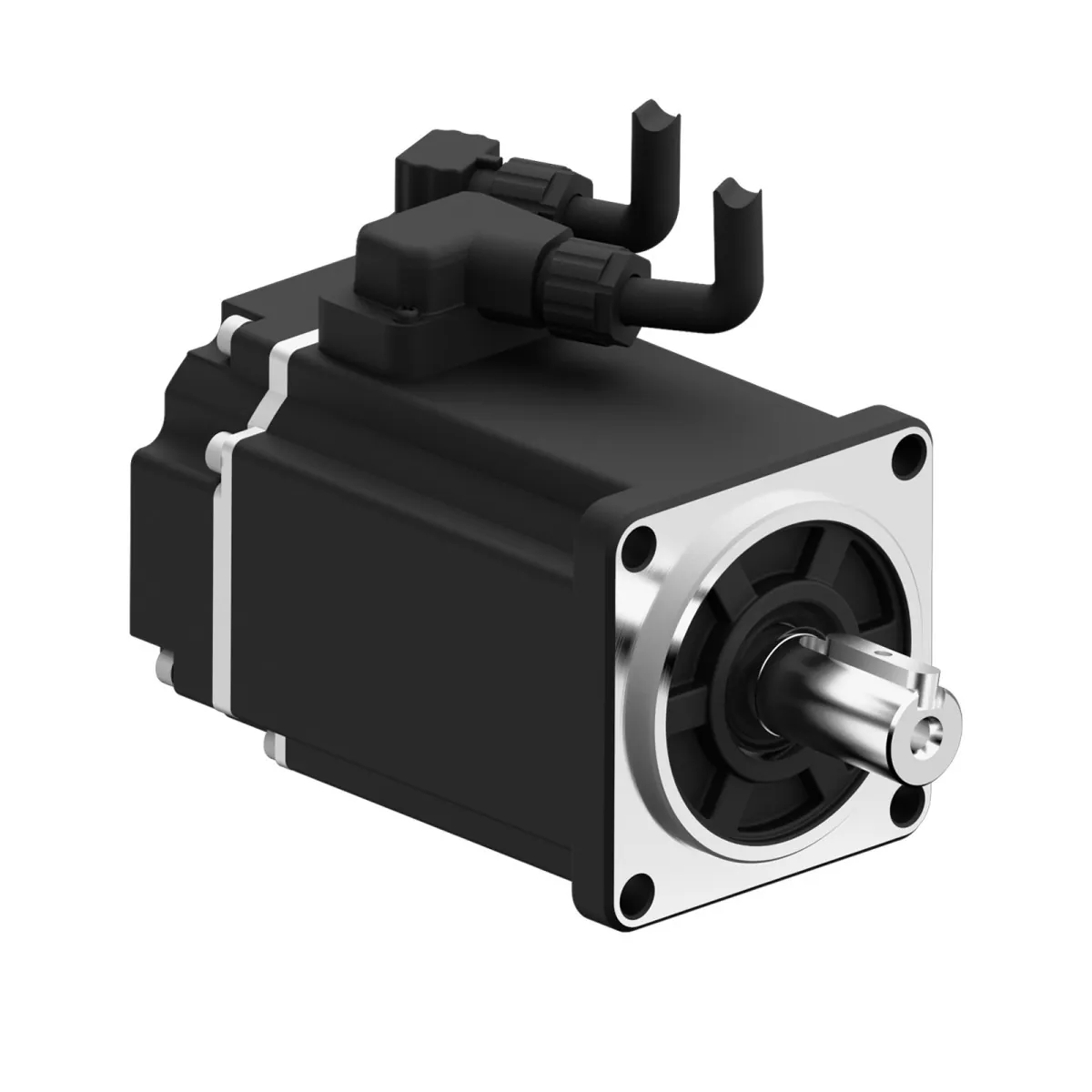

RSHA Series AC Servo Motor

These AC servo motors feature an optimized magnetic circuit design based on SMD technology and incorporate rare-earth neodymium-iron-boron permanent magnet rotors. They offer high torque density, strong peak torque output, low noise, reduced temperature rise, and lower current consumption. An optional permanent-magnet brake ensures precise, responsive performance, making them ideal for Z-axis applications.

  • Rated voltage: 220VAC
  • Rated power range: 200W to 1kW
  • Frame sizes: 60mm / 80mm
  • Encoder options: 17-bit magnetic or 23-bit optical absolute encoder
  • Designed for lower noise and minimal temperature rise
  • Supports up to 3× overload capacity
CE certified RoHS compliant
Get a Quote Talk to Engineer
Model Code

Naming Rule

How to read the model number and order the exact RSHA Series AC Servo Motor variant you need.

RSMA
1 M
2 06
3 J
4 13
5 30
6 A
7 -
 Z
8

  • Product series
  • Motor interia code
    S: Small inertia
    M: Medium inertia
    H: large inertia
  • Motor flange size
    06: 60mm 13: 130mm
  • Encoder resolution
    J: 17 bits magnetic programmed single figure absolute value
    G: 17 bits magnetic programmed multi-turn absolute value
    L: 23 bit optical multi-turn absolute value
  • Motor rated torque
    13: 1.3N.M 150: 15N.M
  • Motor rated speed
    30: 3000rpm
  • Output mode
    A: Wire type C: Connector type
  • Brake code
    Z: With brake

*Model naming rules are only used for model meaning analysis.
For specific optional models, please refer to the details page.

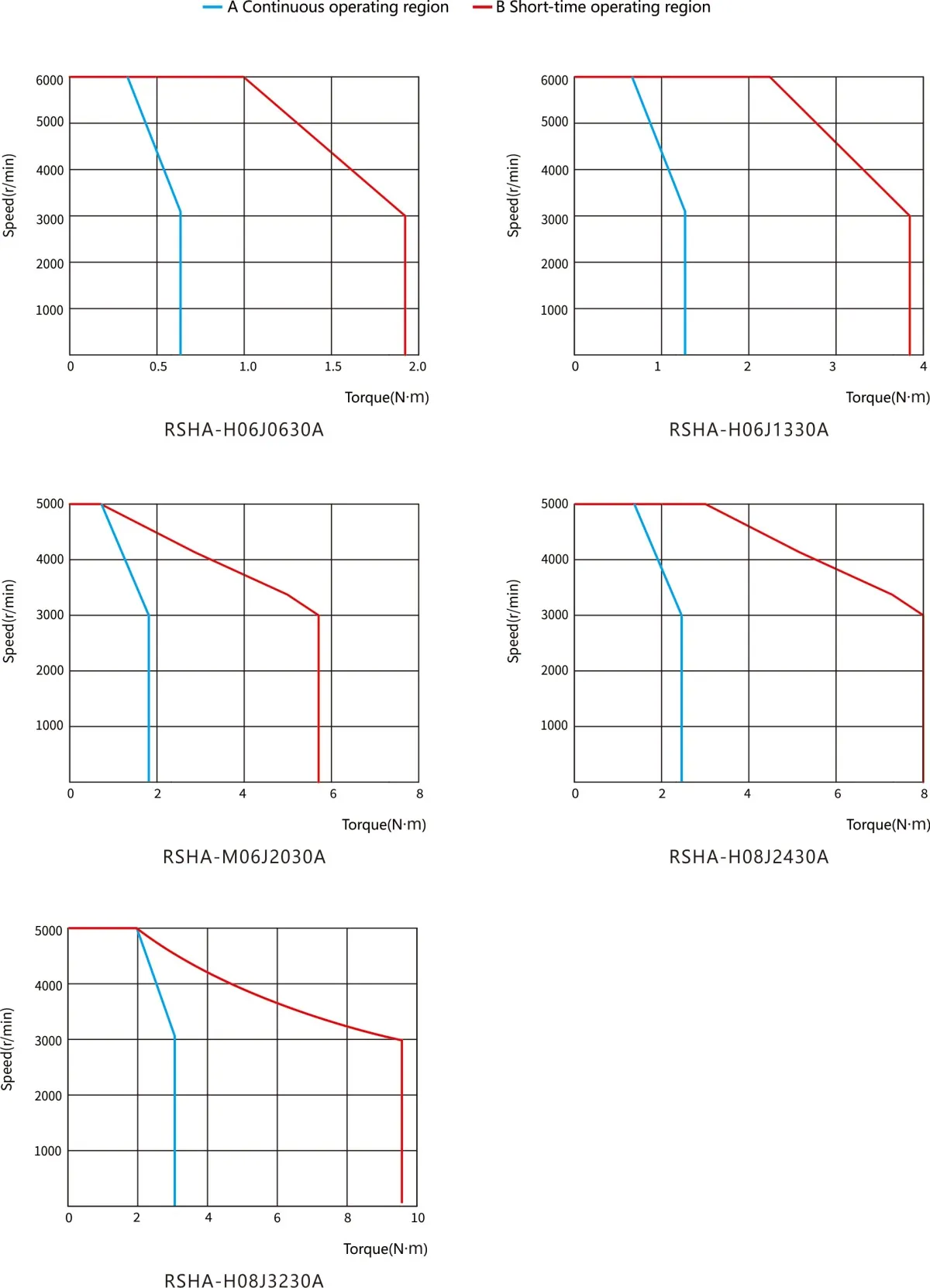

High Performance
Overview

AC Servo Motor Model below Frame Size 80(mm)

Rated power (W) 200 400 600 750 1000
Rated voltage (V) 220 220 220 220 220
Rated current (A) 1.8 3.6 4 4.8 4.8
Rated torque (N·m) 0.64 1.27 1.91 2.4 3.2
Maximum torque (N·m) 1.92 3.82 5.73 8 9.6
Rated speed (rpm) 3000 3000 3000 3000 3000
Maximum speed (rpm) 6000 6000 5000 5000 5000
Back EMF (V/Krpm) 21.8 23.2 32.7 35 42
Torque constant (N·m/A) 0.36 0.36 0.54 0.5 0.7
Wire resistance (Ω,20℃) 4.4 1.95 3.2 1.4 1.4
Wire inductance (mH,20℃) 11 4.7 8.5 6.8 7.2
Rotational inertia (×10⁻⁴ kg·m²) 0.32 0.68 0.84 1.72 2.4
Length L (mm) 77
Brake 104		 96
Brake 123		 114
Brake 141		 106
Brake 140		 120
Brake 154

Datasheets & Manuals

1 document for RSHA Series AC Servo Motor. Free PDF, no form to fill in.

  • Motion Control Products Catalogue 2026 Catalogue · PDF · 24.6 MB Download

Industrial Applications of RSHA Series AC Servo Motor

RB Automation supplies AC servo drives, servo motors and servo reducers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

Aluminium and Steel Industry

  • Laser Marking Machine
  • Laser Cutting Machine
  • Pipe Cutting Machine
  • Drilling Machine
  • Keyway Milling Machine
  • Sheet Cutting Machine

Pharmaceutical Industry

  • Rotary Liquid Filling Machine
  • Linear Liquid Filling Machine
  • Powder Filling Machine
  • Sticker Labeling Machine

Food Industry

  • Cup Cone Filling Machine
  • Candy Making Machine
  • Pouch Packaging Machine
  • Auger Filling Machine

SPM Machinery

  • Keyway Milling Machine
  • PVC Pipe Cutting Machine
  • Metal Drilling Machine
  • Busbar Bending Machine

Jewellery and Diamond Industry

  • Diamond 4P Cutting Machine
  • Diamond Laser Fiber Cutting Machine
  • Diamond Multi Process Machine

Wood Industry

  • CNC Machine
  • Engraving Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right RSHA Series AC Servo Motor variant and quote it.

  • Authorised Schneider Electric partner
  • Supply across Gujarat and all India
+91 8511104864 contact@rbautomate.com
FAQs

Rtelligent RSHA Series AC Servo Motor FAQs

Straight answers to what buyers ask us most about RSHA Series AC Servo Motor.

The RSHA series is a 220VAC AC servo motor range from Rtelligent for automation axes that need high torque density and strong peak torque in 60 mm and 80 mm frames. Rare-earth neodymium-iron-boron magnet rotors and SMD magnetic circuit optimisation give low noise, reduced temperature rise and lower current draw, and an optional brake suits Z-axis duty.

RSHA motors are listed at 200 W, 400 W, 600 W, 750 W and 1000 W, all at 220 V with a 3000 rpm rated speed. Rated torque runs from 0.64 N·m to 3.2 N·m and maximum torque from 1.92 N·m to 9.6 N·m, in line with the up to 3x overload capacity. The 600 W size adds a 1.91 N·m rated torque option.

The 200 W and 400 W RSHA motors reach 6000 rpm, while the 600 W, 750 W and 1000 W models reach 5000 rpm. Encoder choices are a 17-bit magnetic or 23-bit optical absolute encoder. Motor length runs from 77 mm on the 200 W model to 120 mm on the 1 kW model, and the brake version adds 27 to 34 mm.

The cost of an RSHA servo motor depends on the power rating, encoder choice, brake option, cable length, matching servo drive and order quantity, so RB Automation quotes each requirement individually. To get a price, send the motor power or torque you need, the drive you plan to use and the quantity through the inquiry form on this page or to contact@rbautomate.com.

RB Automation supplies Rtelligent RSHA AC servo motors from its Ahmedabad office to customers across Gujarat and India. RB Automation is an authorised technical partner of Rtelligent. Motors can be supplied together with a compatible Rtelligent servo drive and cables. Call +91 8511104864 to confirm the right model for your axis.

Yes, the team compares your load, speed and space needs against the RSHA ratings and recommends a model. RSHA suits 60 mm and 80 mm frame axes from 200 W to 1 kW that need up to 3x overload, and the 600 W size fills the gap between 400 W and 750 W. For OEM builds, bulk quantities can be quoted with drives. WhatsApp +91 9898739737 to start.
