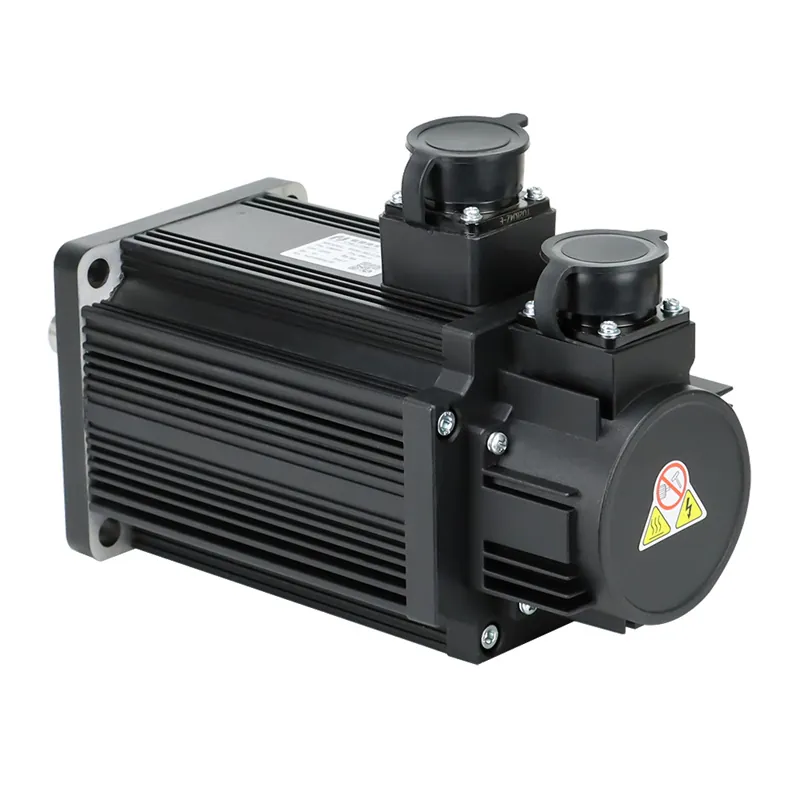

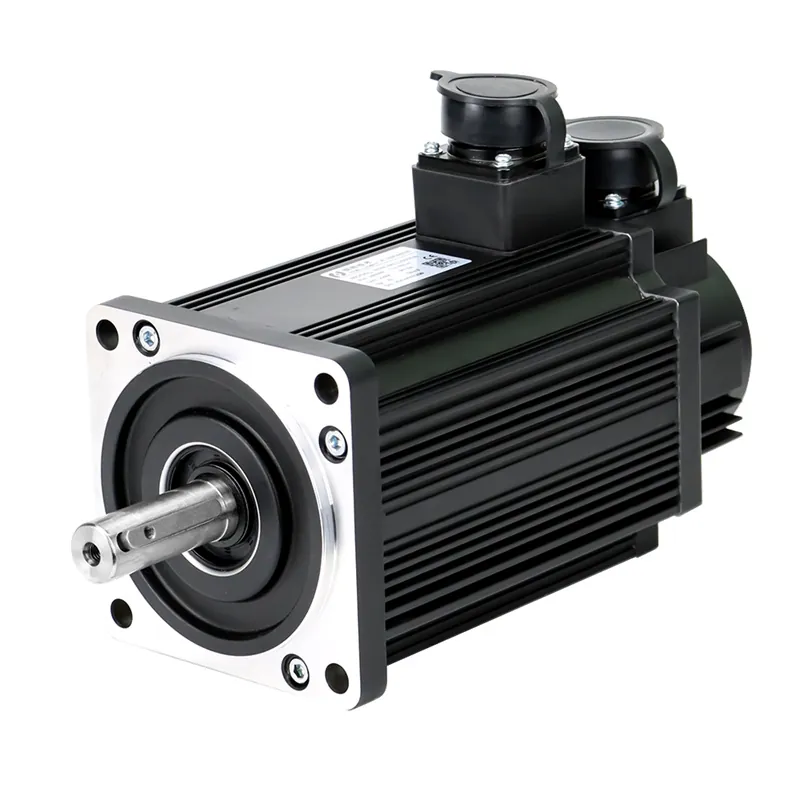

5-Pole Pairs High Performance AC Servo Motor
The RSN series AC servo motors feature an SMD-optimized magnetic circuit design and utilize high-density stator and rotor materials, resulting in excellent energy efficiency. They support a variety of encoder options, including optical, magnetic, and multi-turn absolute types.
- The RSNA60/80 models offer a more compact structure, helping reduce installation space and cost.
- An optional permanent-magnet brake provides smooth, responsive movement, ideal for Z-axis applications.
- Brake options available as required.
- Multiple encoder types can be selected to match application needs.
- IP65 or IP66 protection levels available as optional configurations.
Naming Rule
How to read the model number and order the exact 5-Pole Pairs High Performance AC Servo Motor variant you need.
RSMA
1
M
2
06
3
J
4
13
5
30
6
A
7
-
Z
8
- Series name
A: Five pairs of poles,ultra-thin, silver - Motor interia code
S: Small inertia
M: Medium inertia
H: large inertia - Motor flange size
06: 60mm 13: 130mm - Encoder resolution
J: 17 bits magnetic programmed single figure absolute value
H: 23 bits optical unicyclic absolute encoder
G: 17 bits magnetic programmed multi-turn absolute value
L: 23 bit optical multi-turn absolute value - Motor rated torque
13: 1.3N.M 150: 15N.M - Motor rated speed
30: 3000rpm 15: 1500rpm - is there an oil seal
A: With Oil Seal inside
None: No oil seal inside - Brake code
Z: With brake
*Model naming rules are only used for model meaning
analysis.
For
specific
optional models, please refer to the details page.
Servo motor with brake
- Suitable for Z-axis application environment
- When the driver is powered off or alarms, the brake will be applied,
- Keep the workpiece locked and avoid free fall
Permanent magnet brake
- Can use drive brake output port control
- The output port can directly drive the relay to
- control the brake on and off
24V DC power supply
- Can use drive brake output port control
- The output port can directly drive the relay to
- control the brake on and off
Model Size Details
How to read the model number and order the exact 5-Pole Pairs High Performance AC Servo Motor variant you need.
| Model | RSNA-M04J0130A | RSNA-M04J0330A | RSNA-M06J0630A | RSNA-M06J1330A | RSNA-M08J2430A | RSNA-M08J3230A |
|---|---|---|---|---|---|---|
| Rated power (W) | 50 | 100 | 200 | 400 | 750 | 1000 |
| Rated voltage (V) | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated current (A) | 1.1 | 1.1 | 1.9 | 2.3 | 4.2 | 5.6 |
| Rated torque (N.M) | 0.16 | 0.32 | 0.64 | 1.27 | 2.39 | 3.20 |
| Maximum torque (N.M) | 0.48 | 0.96 | 1.92 | 3.81 | 7.17 | 9.60 |
| Rated speed (rpm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum speed (rpm) | 6500 | 6500 | 5000 | 5000 | 5000 | 5000 |
| Back EMF (V/Krpm) | 10.5 | 18.8 | 26.6 | 37.0 | 35.7 | 34.6 |
| Torque constant (N.M/A) | 0.14 | 0.29 | 0.33 | 0.55 | 0.57 | 0.57 |
| Wire resistance (Ω,20℃) | 14.30 | 14.90 | 10.72 | 6.60 | 2.03 | 1.26 |
| Wire inductance (mH,20℃) | 14.80 | 14.80 | 21.04 | 20.56 | 10.20 | 6.86 |
| Rotor inertia (X10'kg.m²) | 0.036 | 0.079 | 0.26 | 0.61 | 1.71 | 2.11 |
| Weight (kg) | 0.35 | 0.46 (Brake 0.66) | 0.84 (Brake 1.21) | 1.19 (Brake 1.56) | 2.27 (Brake 3.05) | 2.95 (Brake 3.73) |
| Length L (mm) | 61.5 | 81.5 (Brake 110) | 80 (Brake 109) | 98 (Brake 127) | 107 (Brake 144) | 127 (Brake 163) |
Datasheets & Manuals
1 document for 5-Pole Pairs High Performance AC Servo Motor. Free PDF, no form to fill in.
-
Motion Control Products Catalogue 2026 Download
AC Servo Motor in India
The RSMA series is a 5-pole pairs high performance AC servo motor supplied in India by RB Automation, matched to the R5, R6, S5L and S6L AC servo drives. Frame sizes, flange dimensions and shaft options are selected against your torque and inertia requirement.
This Rtelligent motor uses a five-pole-pair rotor and an SMD-optimised magnetic circuit. High-density stator and rotor materials give it high energy efficiency. The technical table lists six ratings from 50 W to 1000 W, all at 220 V with a 3000 rpm rated speed. The model code sets inertia class, flange, encoder, rated torque, rated speed, oil seal and brake.
- Ratings: 50, 100, 200, 400, 750 and 1000 W at 220 V, with rated current from 1.1 A to 5.6 A.
- Overload torque: maximum torque is three times rated torque on every size, up to 9.60 N·m on the 1000 W model.
- Inertia and speed codes: S, M or H for small, medium or large inertia; 3000 rpm or 1500 rpm rated speed.
- Encoders: 17-bit magnetic or 23-bit optical, each in single-turn or multi-turn absolute form.
- Brake: optional 24 V DC permanent-magnet brake, switched through a relay from the drive's brake output.
- Size and sealing: body length from 61.5 mm to 127 mm without brake, IP65 or IP66 protection and an internal oil seal as options.
The brake version holds the load when the drive is off or in alarm, so it is used on vertical Z-axes. The motor goes into laser cutting and pipe cutting machines in aluminium and steel, rotary liquid filling and labeling machines in pharma, pouch packaging machines in food, diamond cutting machines, and CNC and engraving machines in wood. Pair it with a drive from the AC servo drive range, or compare other motor families on the AC servo motor page.
RB Automation sizes the motor against your load torque, inertia, speed and duty. The team then matches the drive, encoder, brake and cables, and supports wiring and commissioning. Send your application details for a quote.
