RSNA Series AC Servo Motor

Rtelligent RSNA Series AC servo motors, 50W to 1000W at 220V, with 17-bit magnetic or 23-bit optical encoder, optional brake and IP65/IP66 options. Enquire now.

Get Free Quote Call +91 8511104864
  • Rtelligent technical partner
  • Supply across India
RSNA Series AC Servo Motor
RSNA Series AC Servo Motor
RSNA Series AC Servo Motor
Overview

RSNA Series AC Servo Motor Overview

Rtelligent RSN series AC servo motors, based on Smd optimized magnetic circuit design, use high magnetic density stator and rotor materials, and have high energy efficiency.

Multiple types of encoders are available, including optical, magnetic, and multi-turn absolute encoder.

  • RSNA60/80 motors have more compact size, saving installation cost.
  • Permanent magnet brake is optional, moves flexible, suit for Z -axis applications.
  • Brake optional or Bake for option
  • Multi type of encoder available.
  • IP65/IP66 Optional or IP65/66 for option.
CE certified RoHS compliant
Get a Quote Talk to Engineer
Overview

RSNA Series Servo Motor

Motor RS□A-M
04J0130A		 RS□A-M
04J0330A		 RSNA-M
06J0630A		 RSNA-M
06J1330A		 RSNA-M
08J2430A		 RSNA-M
08J3230A
Rated power (W) 50 100 200 400 750 1000
Rated voltage (V) 220 220 220 220 220 220
Rated current (A) 1.1 1.1 1.9 2.3 4.2 5.6
Rated torque (N·m) 0.16 0.32 0.64 1.27 2.39 3.20
Maximum torque (N·m) 0.48 0.96 1.92 3.81 7.17 9.60
Rated speed (rpm) 3000 3000 3000 3000 3000 3000
Maximum speed (rpm) 6500 6500 6000 6000 6000 6000
Back EMF (V/Krpm) 10.5 18.8 26.6 37.0 35.7 34.6
Torque constant (N·m/A) 0.14 0.29 0.33 0.55 0.57 0.57
Wire resistance (Ω,20℃) 14.30 14.90 10.72 6.60 2.03 1.26
Wire inductance (mH,20℃) 14.80 14.80 21.04 20.56 10.20 6.86
Rotational inertia (×10⁻⁴ kg·m²) 0.036 0.079 0.26 0.61 1.71 2.11
Weight (kg) 0.35 0.46
Brake 0.66		 0.84
Brake 1.21		 1.19
Brake 1.56		 2.27
Brake 3.05		 2.95
Brake 3.73
Length L (mm) 61.5 81.5
Brake 110		 80
Brake 109		 98
Brake 127		 107
Brake 144		 127
Brake 163

*The encoder comes standard with 17bit magnetic encoding, 23bit optical encoding is optional, and multi-turn absolute value specifications are available.

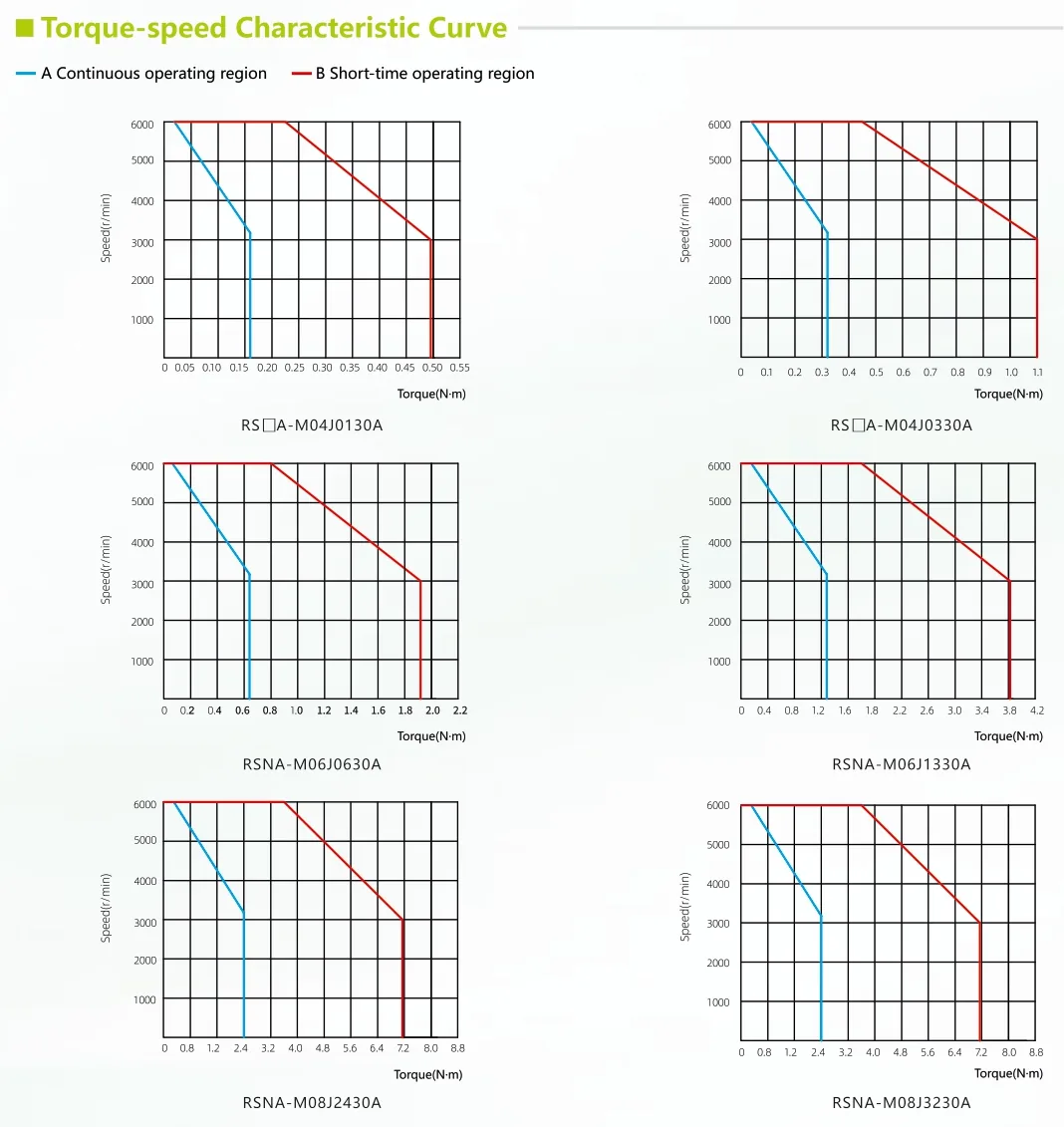

graph

Datasheets & Manuals

12 documents for RSNA Series AC Servo Motor. Free PDF, no form to fill in.

  • Motion Control Products Catalogue 2026 Catalogue · PDF · 24.6 MB Download
  • RSNA-M04JGL0130A Datasheet Datasheet · PDF · 238 KB Download
  • RSNA-M04JGL0130A-Z Datasheet Datasheet · PDF · 197 KB Download
  • RSNA-M04JGL0330A Datasheet Datasheet · PDF · 240 KB Download
  • RSNA-M06JGL0630A Datasheet Datasheet · PDF · 246 KB Download
  • RSNA-M06JGL0630A-Z Datasheet Datasheet · PDF · 205 KB Download
  • RSNA-M06JGL1330A Datasheet Datasheet · PDF · 247 KB Download
  • RSNA-M06JGL1330A-Z Datasheet Datasheet · PDF · 254 KB Download
  • RSNA-M08JGL2430A Datasheet Datasheet · PDF · 260 KB Download
  • RSNA-M08JGL2430A-Z Datasheet Datasheet · PDF · 213 KB Download
  • RSNA-M08JGL3230A Datasheet Datasheet · PDF · 258 KB Download
  • RSNA-M08JGL3230A-Z Datasheet Datasheet · PDF · 218 KB Download

Industrial Applications of RSNA Series AC Servo Motor

RB Automation supplies AC servo drives, servo motors and servo reducers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

Aluminium and Steel Industry

  • Laser Marking Machine
  • Laser Cutting Machine
  • Pipe Cutting Machine
  • Drilling Machine
  • Keyway Milling Machine
  • Sheet Cutting Machine

Pharmaceutical Industry

  • Rotary Liquid Filling Machine
  • Linear Liquid Filling Machine
  • Powder Filling Machine
  • Sticker Labeling Machine

Food Industry

  • Cup Cone Filling Machine
  • Candy Making Machine
  • Pouch Packaging Machine
  • Auger Filling Machine

SPM Machinery

  • Keyway Milling Machine
  • PVC Pipe Cutting Machine
  • Metal Drilling Machine
  • Busbar Bending Machine

Jewellery and Diamond Industry

  • Diamond 4P Cutting Machine
  • Diamond Laser Fiber Cutting Machine
  • Diamond Multi Process Machine

Wood Industry

  • CNC Machine
  • Engraving Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right RSNA Series AC Servo Motor variant and quote it.

  • Authorised Schneider Electric partner
  • Supply across Gujarat and all India
+91 8511104864 contact@rbautomate.com
FAQs

Rtelligent RSNA Series AC Servo Motor FAQs

Straight answers to what buyers ask us most about RSNA Series AC Servo Motor.

The RSNA series belongs to Rtelligent's RSN AC servo motor family, based on an SMD-optimised magnetic circuit with high magnetic-density stator and rotor materials for high energy efficiency. The RSNA60 and RSNA80 motors are more compact, which saves installation cost, and options include multiple encoder types, a permanent-magnet brake and IP65 or IP66 protection.

Six ratings are listed at 220 V: 50 W and 100 W (M04 models), 200 W as RSNA-M06J0630A and 400 W as RSNA-M06J1330A, and 750 W as RSNA-M08J2430A and 1000 W as RSNA-M08J3230A. Rated speed is 3000 rpm, with a maximum speed of 6500 rpm on the 50 W and 100 W motors and 6000 rpm on the others.

RSNA weights range from 0.35 kg for the 50 W motor to 2.95 kg for the 1000 W motor, or 3.73 kg with brake. Lengths run from 61.5 mm on the 50 W model to 127 mm on the 1000 W model, or 163 mm with brake. For example, the 400 W RSNA-M06J1330A weighs 1.19 kg at 98 mm, or 1.56 kg at 127 mm with brake.

Yes, when ordered with the optional IP65 or IP66 protection, which should be selected when the motor is exposed to dust or water spray. The encoder is 17-bit magnetic as standard, with 23-bit optical and multi-turn absolute versions available. Mention the operating environment when you ask RB Automation for a quote so the correct protection, brake and encoder are included.

RSNA servo motor prices vary with the power rating from 50 W to 1000 W, the encoder type, brake, IP65 or IP66 option, the matching servo drive and the quantity ordered. RB Automation does not list fixed prices and instead quotes the exact configuration. Send your requirement through the inquiry form on this page or email contact@rbautomate.com.

RB Automation in Ahmedabad supplies Rtelligent RSNA AC servo motors in Gujarat and across India, for single replacements as well as bulk OEM orders. RB Automation is an authorised technical partner of Rtelligent. Matching servo drives and cables can be supplied with the motor. Call +91 8511104864 or message +91 9898739737 on WhatsApp to discuss the model you need.
