Switching Stepper Driver Series R60IR
Overview

Switching Stepper Driver Series R60IR: Technical Overview

The R60IR is a potentiometer speed-control switch drive from the Rtelligent R series. A potentiometer wired to the ENA port sets the running speed and can change it at any time, while IN1 and IN2 start, stop and reverse the motor from plain ON/OFF signals. Built on a 32-bit DSP with PID current control, it drives open-loop stepper motors below 60 mm frame size from a 24~48 V DC supply at up to 5.6 A peak.

  • Speed set by a potentiometer and adjustable while the motor runs
  • Start, stop and reverse from plain ON/OFF signals
  • Open loop stepper motors below 60 mm, up to 5.6 A peak
  • 24~48 V DC supply, optically isolated control, IP54
CE certified RoHS compliant
Get a Quote Talk to Engineer
Technical Details

R60IR Features and Ratings

  • Speed set by potentiometer and adjustable while the motor runs
  • DIP switch settings: 8 output currents, 16 speed levels, 2 acceleration gears
  • Start, stop and reverse from simple ON/OFF signals (IN1, IN2)
  • 3.3~24 V level compatible, optically isolated inputs and outputs
  • Automatic resonance point calculation and IF vibration suppression
  • Motor parameters detected at power-up and the control loop tuned to them
  • Half current after stop, 2 MHz digital pulse filter
  • Over-voltage, under-voltage and over-current protection, IP54

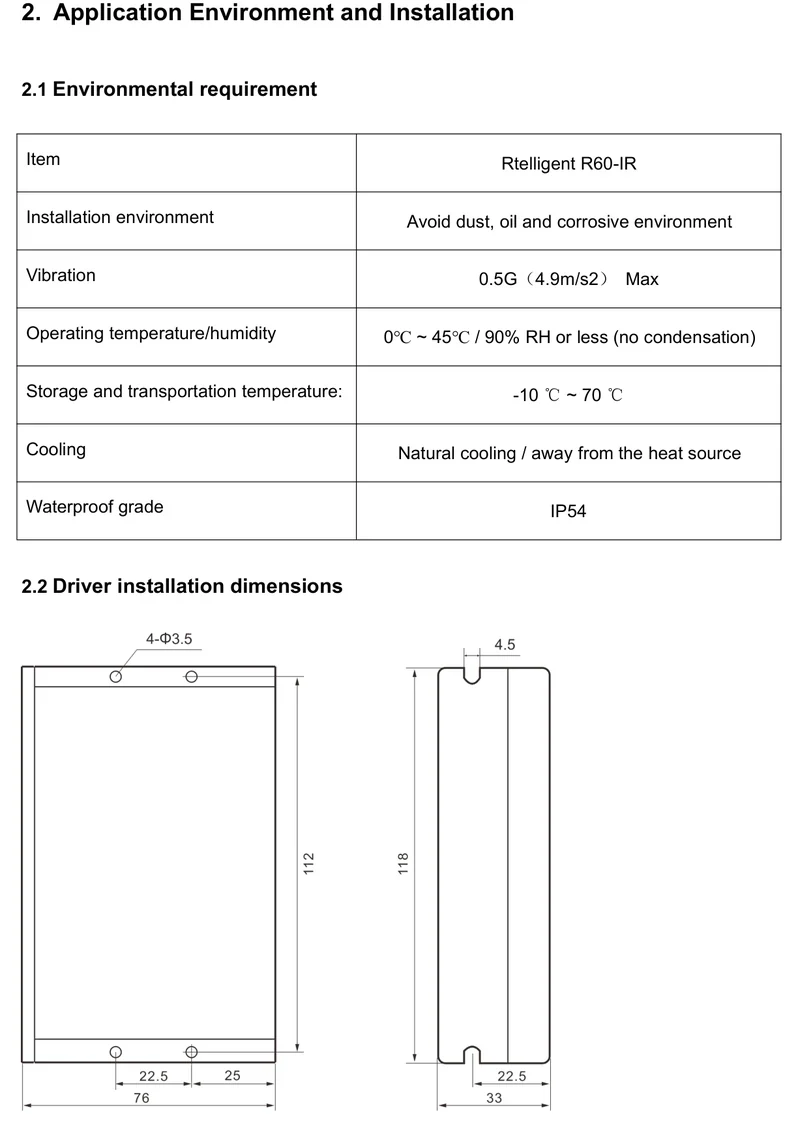

Switching Stepper Driver Series R60IR installation dimensions
Model No. R42-IR R60-IR R86-IR
DC input 24~48VDC 24~48VDC 24~100VDC
AC input Non support Non support 20~80VAC
Output current (peak) Up to 2.2A Up to 5.6A Up to 7.2A
Matching motor Open loop motor below 42mm Open loop motor below 60mm Open loop motor below 86mm
Speed setting Potentiometer on the ENA port, plus 16 DIP speed levels
Current setting DIP switch, 8 options
Acceleration setting DIP switch, 2 gears (off = 1, on = 2)
Current control PID current control algorithm
Speed range Up to 3000rpm with a suitable motor
Trigger inputs IN1 start/stop, IN2 reversing, 3.3~24V level compatible
Signal isolation Optically isolated input and output
Resonance suppression Calculates the resonance point and suppresses IF vibration
Parameter adaption Detects motor parameters at power-up and tunes the loop
Pulse filtering 2MHz digital signal processing filter
Neutral current Current halved automatically after the motor stops
Protection Over-voltage, under-voltage and over-current
Operating temperature 0~45°C, 90% RH or less (no condensation)
Protection grade IP54
Dimensions (mm) - 118 × 76 × 33 151 × 97.5 × 52
Mounting 4 x Φ3.5 holes, M3 screws, vertical or horizontal
