Switching Stepper Driver Series R86IR
Overview

Switching Stepper Driver Series R86IR: Technical Overview

The R86IR is the 86 mm frame member of the Rtelligent R-IR potentiometer speed-control family. It accepts either supply, 20~80 V AC or 24~100 V DC, and delivers up to 7.2 A peak per phase, so it drives the larger open-loop stepper motors used on gantries, winders and heavy conveyors. Speed comes from a potentiometer on the ENA port, and IN1 and IN2 start, stop and reverse the motor from plain ON/OFF signals.

  • Speed set by a potentiometer and adjustable while the motor runs
  • Start, stop and reverse from plain ON/OFF signals
  • Open loop stepper motors below 86 mm, up to 7.2 A peak
  • 20~80 V AC or 24~100 V DC supply, optically isolated control, IP54
CE certified RoHS compliant
Get a Quote Talk to Engineer
Technical Details

R86IR Features and Ratings

  • AC or DC supply: 20~80 V AC or 24~100 V DC
  • Up to 7.2 A peak per phase for open-loop motors below 86 mm
  • Speed set by potentiometer and adjustable while the motor runs
  • DIP switch settings: 8 output currents, 16 speed levels, 2 acceleration gears
  • Start, stop and reverse from simple ON/OFF signals (IN1, IN2)
  • 3.3~24 V level compatible, optically isolated inputs and outputs
  • Resonance suppression and automatic motor parameter adaption
  • Half current after stop, 2 MHz digital pulse filter, IP54

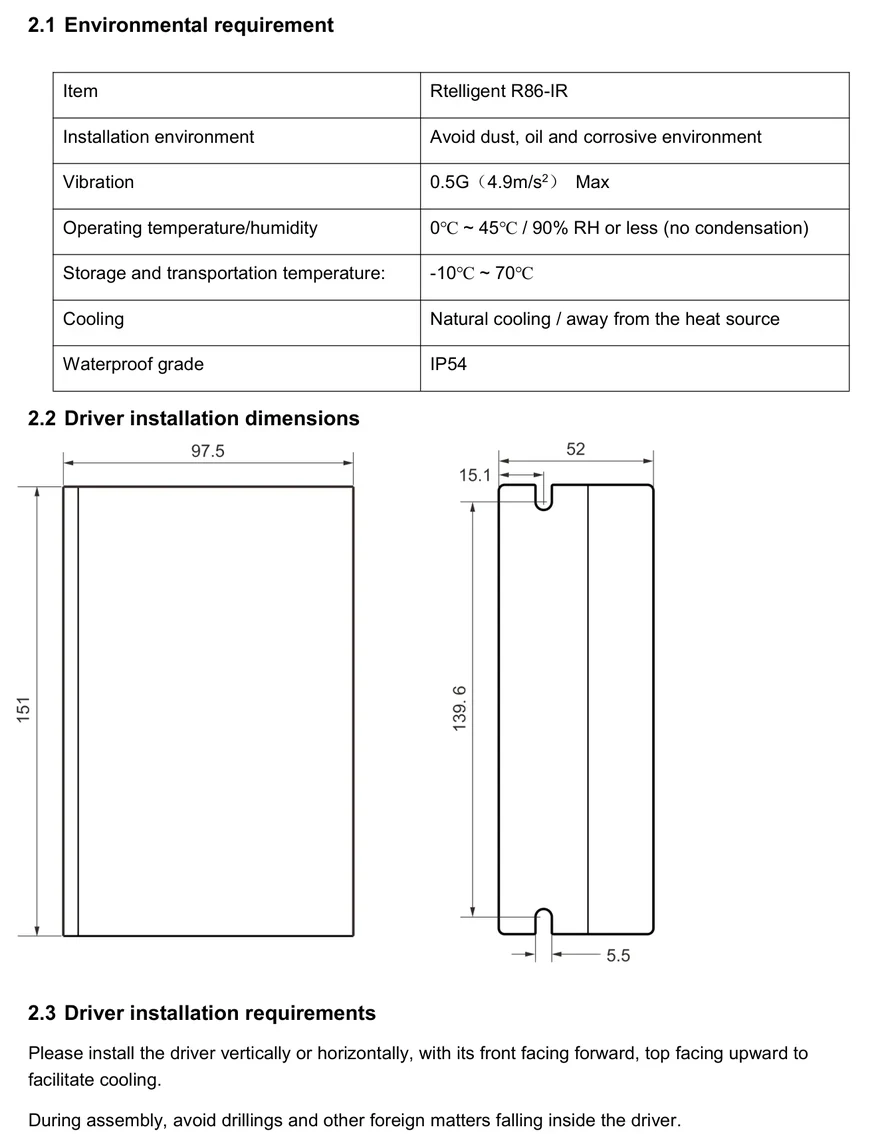

Switching Stepper Driver Series R86IR installation dimensions
Model No. R42-IR R60-IR R86-IR
DC input 24~48VDC 24~48VDC 24~100VDC
AC input Non support Non support 20~80VAC
Output current (peak) Up to 2.2A Up to 5.6A Up to 7.2A
Matching motor Open loop motor below 42mm Open loop motor below 60mm Open loop motor below 86mm
Speed setting Potentiometer on the ENA port, plus 16 DIP speed levels
Current setting DIP switch, 8 options
Acceleration setting DIP switch, 2 gears (off = 1, on = 2)
Current control PID current control algorithm
Speed range Up to 3000rpm with a suitable motor
Trigger inputs IN1 start/stop, IN2 reversing, 3.3~24V level compatible
Signal isolation Optically isolated input and output
Resonance suppression Calculates the resonance point and suppresses IF vibration
Parameter adaption Detects motor parameters at power-up and tunes the loop
Pulse filtering 2MHz digital signal processing filter
Neutral current Current halved automatically after the motor stops
Protection Over-voltage, under-voltage and over-current
Operating temperature 0~45°C, 90% RH or less (no condensation)
Protection grade IP54
Dimensions (mm) - 118 × 76 × 33 151 × 97.5 × 52
Mounting 4 x Φ3.5 holes, M3 screws, vertical or horizontal

Datasheets & Manuals

1 document for Switching Stepper Driver R86IR. Free PDF, no form to fill in.

  • Switching Stepper Driver R86IR Datasheet Datasheet · PDF · 533 KB Download

Industrial Applications of Switching Stepper Driver Series R86IR

RB Automation supplies stepper motors and stepper motor drivers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

SPM Machinery

  • Keyway Milling Machine
  • Gold Refinery Machine
  • Punching Machine
  • Metal Drilling Machine
  • Packing Sheet Cutting Machine

Wood Industry

  • Automatic Edge Bander Machine
  • Auto Panel Saw Machine
  • CNC Machine
  • Engraving Machine

Pharmaceutical Industry

  • Rotary Liquid Filling Machine
  • Linear Liquid Filling Machine
  • Sticker Labeling Machine

Jewellery and Diamond Industry

  • Diamond 4P Cutting Machine
  • Diamond Laser Fiber Cutting Machine
  • Diamond Multi Process Machine

Food Industry

  • Auger Filling Machine

Aluminium and Steel Industry

  • Laser Marking Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right Switching Stepper Driver R86IR variant and quote it.

  • Authorised Schneider Electric partner
  • Supply across Gujarat and all India
+91 8511104864 contact@rbautomate.com
FAQs

R86IR Switching Stepper Driver FAQs

Straight answers to what buyers ask us most about Switching Stepper Driver Series R86IR.

The R86IR is a switch stepper driver in which a potentiometer sets the running speed and IN1 and IN2 take simple ON/OFF signals to start, stop and reverse the motor. It is built on a 32-bit DSP with PID current control and drives open-loop stepper motors below 86 mm frame size, so larger axes run without a pulse generator or motion controller.

The R86IR accepts either an AC or a DC supply: 20~80 V AC or 24~100 V DC. Output current is set by DIP switch from 8 options up to 7.2 A peak. A higher supply voltage holds more torque at speed, while a lower one keeps the motor cooler on slow axes.

Both use the same potentiometer speed control and the same DIP switch scheme. The R60IR runs motors below 60 mm from 24~48 V DC at up to 5.6 A, while the R86IR runs motors below 86 mm, accepts 20~80 V AC as well as 24~100 V DC and delivers up to 7.2 A peak. The choice follows the motor frame size and the supply available in the panel.

The R86IR has over-voltage, under-voltage and over-current protection with optically isolated control signals. It calculates the resonance point and suppresses intermediate frequency vibration, detects motor parameters at power-up, filters commands through a 2 MHz digital filter and halves the current after the motor stops. It is rated IP54 and runs from 0 to 45 degrees Celsius.

The price of an R86IR depends on quantity and on whether a matching 86 mm stepper motor, cable or power supply is ordered with it. RB Automation quotes each requirement separately, including drive and motor sets for OEM machines. Email contact@rbautomate.com or call +91 8511104864 with your motor frame size and quantity.

Yes. RB Automation supplies Rtelligent stepper motors for 86 mm frames alongside the R86IR, so the drive current, the supply voltage and the motor winding are matched before dispatch. Share the torque and speed the axis needs and the team will confirm the pairing. WhatsApp +91 9898739737.
