Rotary Encoder
Absolute Rotary Encoder
Rotary encoder are used to provide accurate position measurement and speed feedback in many machine and control system. we are providing complete range of incremental and absolute encoder in solid and hollow shaft design for various application in automation industries.
At A Glance
- Robust construction provides extreme Shock & vibration resistance
- Precise measurement
- High degree of protection Up to IP69K
- Absolute encoders with industry protocols e.g. Profinet,Ethernet,Profibus,Canopen Analog
- Encoder housing with anti corrosive CS painting
Incremental Rotary Encoder
The Incremental Rotary Encoder by Baumer is designed to deliver high precision, reliability, and durability for a wide range of industrial applications. Available in both optical and magnetic versions, it offers excellent signal quality, robustness, and longevity to ensure maximum productivity with minimal downtime. Its modular design supports various shaft types and mounting options, providing exceptional flexibility and compatibility. Engineered with a solid, torsion-resistant housing and ShaftLock bearing design, it withstands extreme conditions while maintaining consistent performance and cost efficiency.
At A Glance
- Compact in size
- Robust and modular design
- From 24 mm design on to 85 mm hollow shaft diameter
- Precise optical sensing
- All common installation options, HTL, TTL and Sin/Cos output signals
58 mm – Precise Optical
The 58 mm Precise Optical Incremental Rotary Encoder offers high-resolution performance ranging from 1 to 65,536 pulses per revolution (ppr). Designed for accuracy and stability, it supports solid shafts up to 12 mm and hollow shafts up to 15 mm, with multiple mounting options including clamping, synchro, and square flanges, making it ideal for versatile industrial applications.
Large Hollow Shaft up to ø85 mm
The Large Hollow Shaft Incremental Rotary Encoder features a hollow shaft up to Ø85 mm and delivers exceptional precision with resolutions of up to 80,000 pulses per revolution (ppr). Its optical sensing technology ensures high accuracy, while the compact, shallow installation depth allows easy integration into space-constrained industrial systems.
Programmable Resolution and Signals

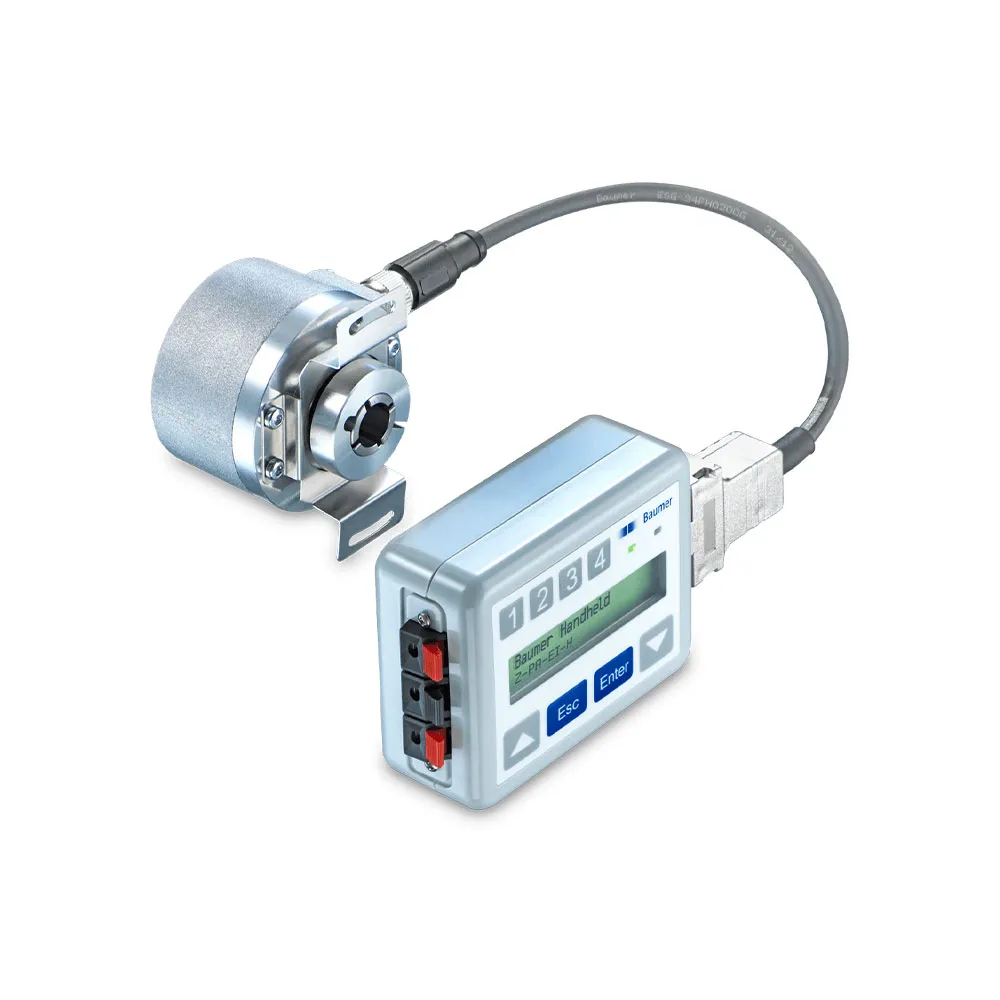

The Programmable Resolution and Signals Incremental Rotary Encoder offers flexible configuration with 1 to 65,536 programmable pulses per revolution (ppr). Designed in a 58 mm housing with up to 1-inch hollow shaft, it supports HTL and TTL signal outputs. Users can easily program pulse sequences and zero pulses via a handheld tool or PC software, ensuring adaptability for diverse automation and motion control applications.
Applications
- Distance measurement & speed Monitoring in motor feedback system
- Positioning in packaging industries
- Angle measurement
Technical Specifications
| Type | Incremental/ Absolute |
|---|---|
| Shaft. Type | Solid shaft / hollow shaft |
| Shaft Dia | 6mm/8mm/10mm/15mm |
| PPR | 100….10000 |
| Power Supply | 5 VDC / 8..30 VDC / 4.75…30 VDC |
| Output | TTL/RS422 or HTL/Pushpull |
| Electrical Connection | Radial & Axial cable / connector |
