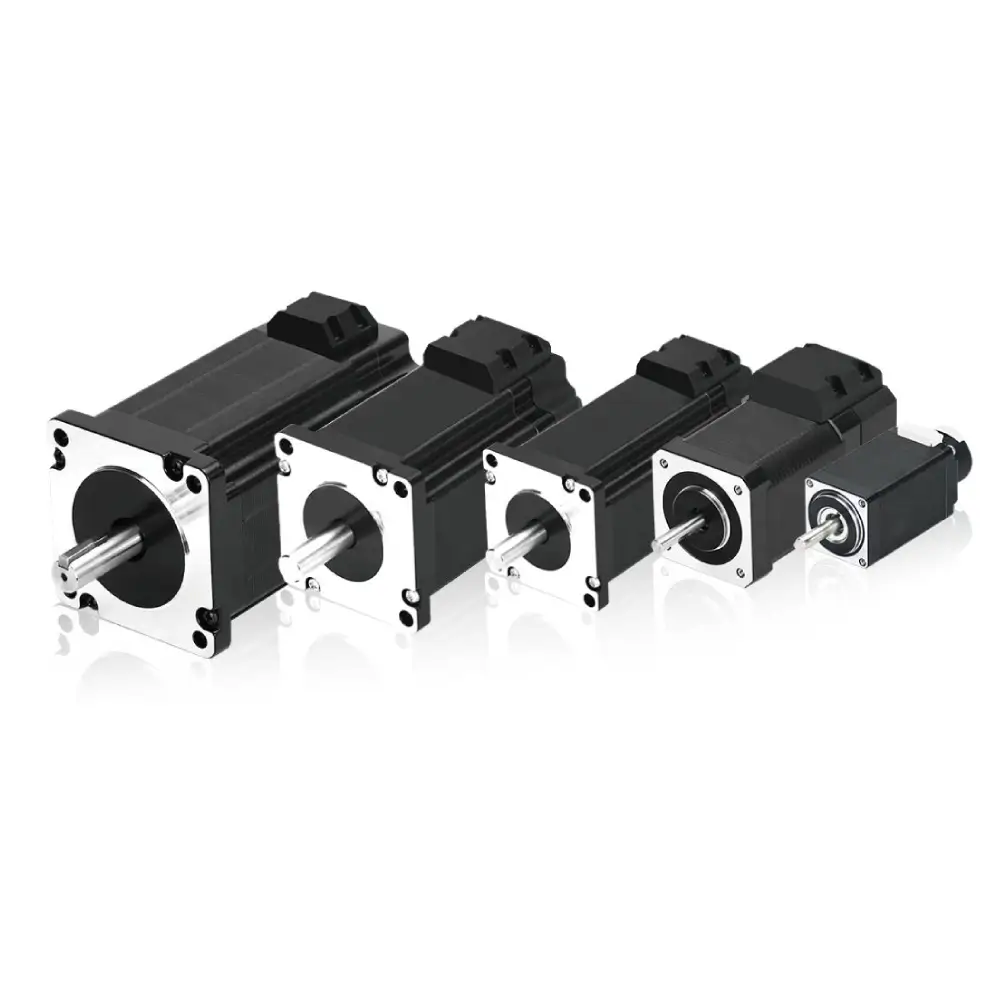

Stepper Motors
Two Phase Stepper Motors
The Stepper motor is a special motor specially designed for accurate control of position and speed. the biggest characteristics of stepper motor is 'digital'. For each pulse signal from the controller, the stepper motor driven by its drive runs at a fixed angle('one step for short').
Naming Rule
57
1
A
2
M
3
23
4
-
◻
5
- Base size
- Step angle type code
A: 1.8 degrees
B: 1.2 degrees
C: 0.72 degrees - Motor series code
M: M series - Motor torque
06:0.6Nm
30:3.0Nm
120:12.0Nm - Non- standard code
D: double Shaft
Z2: With brake
*Model naming rules are only used for model meaning
analysis.
For
specific optional models, please refer to the details page.

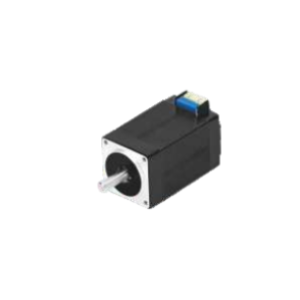

20AM Series Dimension (mm)

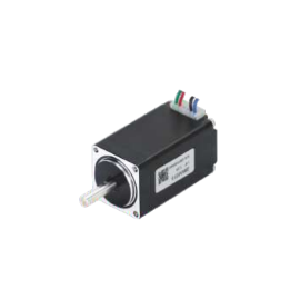

28AM Series Dimension (mm)
20/28mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 20AM003 | 1.8 | 0.03 | 0.6 | 5.7 | 2.6 | 3 | 4 | 10 | 33 | 0.07 |
| 20AM005 | 1.8 | 0.05 | 0.6 | 7.0 | 3.4 | 38 | 4 | 10 | 45 | 0.110 |
| 28AM006 | 1.8 | 0.06 | 1.2 | 1.4 | 1.0 | 90 | 5 | 20 | 32 | 0.11 |
| 28AM01 | 1.8 | 0.10 | 1.2 | 1.8 | 1.6 | 130 | 5 | 20 | 41 | 0.13 |
| 28AM013 | 1.8 | 0.13 | 1.2 | 2.2 | 2.3 | 180 | 5 | 20 | 51 | 0.18 |
|
*NEMA8 (20mm), NE-MA 11 (28mm) |
||||||||||

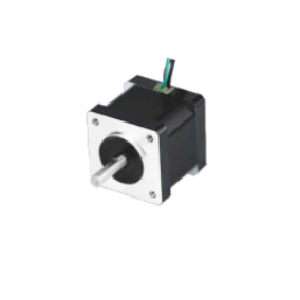

35A Series Dimension (mm)

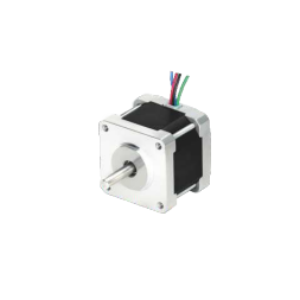

39A Series Dimension (mm)
35/39mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 35A02 | 1.8 | 0.2 | 1.0 | 3.8 | 5.3 | 22 | 5 | 20 | 34 | 0.18 |
| 39A02 | 1.8 | 0.2 | 1.0 | 4.1 | 7.1 | 30 | 5 | 20 | 36 | 0.28 |
|
*NEMA 14 (35mm),NEMA 16 (39mm) |
||||||||||

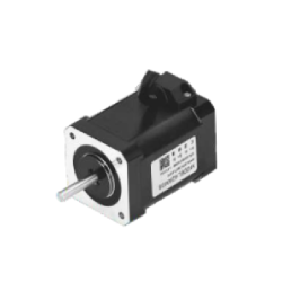

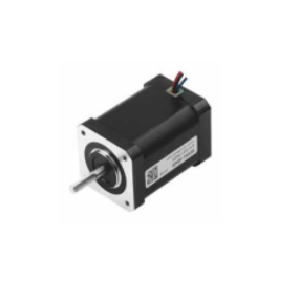

42A Series Dimension (mm)
42mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 42A01 | 1.8 | 0.15 | 1.0 | 1.3 | 1.9 | 41 | 5 | 24 | 34 | 0.23 |
| 42A02 | 1.8 | 0.2 | 1.2 | 2.6 | 5.1 | 57 | 5 | 24 | 40 | 0.29 |
| 42A03 | 1.8 | 0.3 | 2.0 | 1.8 | 3.8 | 82 | 5 | 24 | 47 | 0.37 |
| 42A08 | 1.8 | 0.8 | 2.0 | 1.9 | 5.0 | 114 | 5 | 24 | 60 | 0.48 |
|
*NEMA 17 (42mm) |
||||||||||
42A Series Dimension (mm)
42mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 42AM02 | 1.8 | 0.2 | 1.5 | 1.3 | 1.9 | 41 | 5 | 24 | 34 | 0.23 |
| 42AM04 | 1.8 | 0.4 | 1.5 | 2.6 | 5.1 | 57 | 5 | 24 | 40 | 0.29 |
| 42AM06 | 1.8 | 0.6 | 2.0 | 1.8 | 3.8 | 82 | 5 | 24 | 47 | 0.37 |
| 42AM08 | 1.8 | 0.8 | 2.0 | 1.9 | 5.0 | 114 | 5 | 24 | 60 | 0.48 |
|
*NEMA 17 (42mm) |
||||||||||

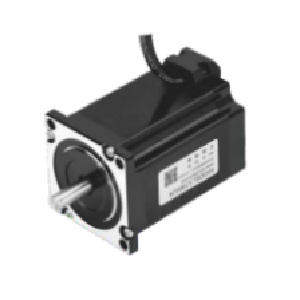

57AM Series Dimension (mm)
D57AM Series Dimension (mm)
57mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 57AM13 | 1.8 | 1.3 | 3.0 | 0.42 | 1.5 | 260 | 8 | 21 | 55 | 0.67 |
| 57AM23 | 1.8 | 2.3 | 5.0 | 0.64 | 2.7 | 460 | 8 | 21 | 76 | 1.03 |
| 57AM24 | 1.8 | 2.4 | 5.6 | 0.41 | 2.0 | 460 | 8 | 21 | 80 | 1.11 |
| 57AM26 | 1.8 | 2.6 | 5.0 | 0.47 | 2.1 | 520 | 8 | 21 | 84 | 1.20 |
| 57AM30 | 1.8 | 3.0 | 5.0 | 0.82 | 3.7 | 720 | 8 | 21 | 102 | 1.48 |
| D57AM30 | 1.8 | 3.0 | 5.0 | 0.50 | 2.2 | 690 | 8 | 21 | 86 | 1.39 |
|
*NEMA 23 (57mm) |
||||||||||

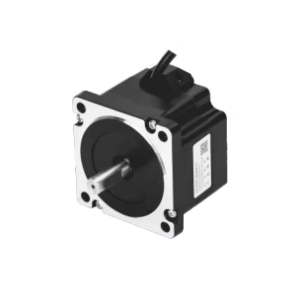

86AM3E Dimension (mm)
86AM65/86AM85 Dimension (mm)
86mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 86AM35 | 1.8 | 3.5 | 4.0 | 0.81 | 3.87 | 800 | 9.5 | 32 | 64 | 1.70 |
| 86AM45 | 1.8 | 4.5 | 6.0 | 0.41 | 2.82 | 1400 | 12.7 | 32 | 78 | 2.25 |
| 86AM65 | 1.8 | 6.5 | 6.0 | 0.47 | 4.18 | 2300 | 12.7 | 32 | 98 | 2.95 |
| 86AM85 | 1.8 | 8.5 | 6.0 | 0.53 | 5.54 | 2800 | 12.7 | 32 | 112 | 3.67 |
| 86AM120 | 1.8 | 12 | 6.0 | 1.72 | 8.30 | 4000 | 15.875 | 32 | 155 | 5.10 |
| 86AM45- 14 | 1.8 | 4.5 | 6.0 | 0.41 | 2.82 | 1400 | 14 | 32 | 78 | 2.25 |
| 86AM65- 14 | 1.8 | 6.5 | 6.0 | 0.47 | 4.18 | 2300 | 14 | 32 | 98 | 2.95 |
| 86AM85- 14 | 1.8 | 8.5 | 6.0 | 0.53 | 5.54 | 2800 | 14 | 32 | 112 | 3.67 |
| 86AM100 | 1.8 | 10 | 6.0 | 0.75 | 5.30 | 3400 | 14 | 32 | 128 | 4.10 |
| 86AM120 | 1.8 | 12 | 6.0 | 1.72 | 8.30 | 4000 | 14 | 32 | 155 | 5.10 |
|
*NEMA 34 (86mm) |
||||||||||
110A Series Dimension (mm)

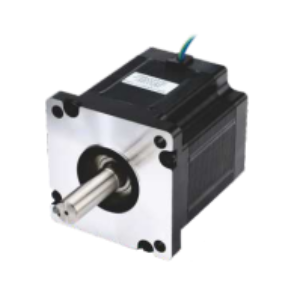

130A Series Dimension (mm)
110/130mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 110A12 | 1.8 | 12 | 6.0 | 0.37 | 4.9 | 7200 | 19 | 56 | 115 | 6.0 |
| 110A20 | 1.8 | 20 | 6.0 | 0.80 | 15.0 | 11000 | 19 | 56 | 150 | 8.4 |
| 110A28 | 1.8 | 28 | 6.5 | 1.20 | 22 | 16200 | 19 | 56 | 201 | 11.7 |
| 130A27 | 1.8 | 27 | 6.0 | 0.65 | 13.8 | 35000 | 19 | 45 | 226 | 13.0 |
| 130A45 | 1.8 | 45 | 7.0 | 0.90 | 9.5 | 48400 | 19 | 45 | 283 | 19.0 |
|
*NEMA 42 (110mm), NEMA 52 (130mm) |
||||||||||
57AM Series Dimension (mm)
D57AM Series Dimension (mm)
57mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 57AM13 | 1.8 | 1.3 | 3.0 | 0.42 | 1.5 | 260 | 8 | 21 | 55 | 0.67 |
| 57AM23 | 1.8 | 2.3 | 5.0 | 0.64 | 2.7 | 460 | 8 | 21 | 76 | 1.03 |
| 57AM24 | 1.8 | 2.4 | 5.6 | 0.41 | 2.0 | 460 | 8 | 21 | 80 | 1.11 |
| 57AM26 | 1.8 | 2.6 | 5.0 | 0.47 | 2.1 | 520 | 8 | 21 | 84 | 1.20 |
| 57AM30 | 1.8 | 3.0 | 5.0 | 0.82 | 3.7 | 720 | 8 | 21 | 102 | 1.48 |
| D57AM30 | 1.8 | 3.0 | 5.0 | 0.50 | 2.2 | 690 | 8 | 21 | 86 | 1.39 |
|
*NEMA 23 (57mm) |
||||||||||
86AM3E Dimension (mm)
86AM65/86AM85 Dimension (mm)
86mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 86AM35 | 1.8 | 3.5 | 4.0 | 0.81 | 3.87 | 800 | 9.5 | 32 | 64 | 1.70 |
| 86AM45 | 1.8 | 4.5 | 6.0 | 0.41 | 2.82 | 1400 | 12.7 | 32 | 78 | 2.25 |
| 86AM65 | 1.8 | 6.5 | 6.0 | 0.47 | 4.18 | 2300 | 12.7 | 32 | 98 | 2.95 |
| 86AM85 | 1.8 | 8.5 | 6.0 | 0.53 | 5.54 | 2800 | 12.7 | 32 | 112 | 3.67 |
| 86AM120 | 1.8 | 12 | 6.0 | 1.72 | 8.30 | 4000 | 15.875 | 32 | 155 | 5.10 |
| 86AM45- 14 | 1.8 | 4.5 | 6.0 | 0.41 | 2.82 | 1400 | 14 | 32 | 78 | 2.25 |
| 86AM65- 14 | 1.8 | 6.5 | 6.0 | 0.47 | 4.18 | 2300 | 14 | 32 | 98 | 2.95 |
| 86AM85- 14 | 1.8 | 8.5 | 6.0 | 0.53 | 5.54 | 2800 | 14 | 32 | 112 | 3.67 |
| 86AM100 | 1.8 | 10 | 6.0 | 0.75 | 5.30 | 3400 | 14 | 32 | 128 | 4.10 |
| 86AM120 | 1.8 | 12 | 6.0 | 1.72 | 8.30 | 4000 | 14 | 32 | 155 | 5.10 |
|
*NEMA 34 (86mm) |
||||||||||

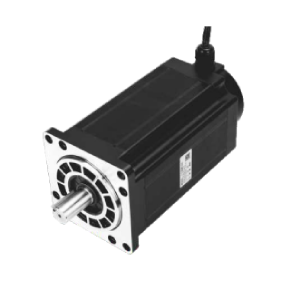

110BM Series Dimension (mm)
110mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 110BM80 | 1.2 | 8.0 | 4.3 | 1.0 | 11.9 | 8600 | 19 | 40 | 137 | 5.5 |
| 110BM120 | 1.2 | 12 | 6.0 | 1.1 | 12.4 | 11900 | 19 | 40 | 161 | 7.1 |
| 110BM160 | 1.2 | 16 | 6.5 | 1.3 | 19.0 | 14800 | 19 | 40 | 185 | 10.7 |
| 110BM200 | 1.2 | 20 | 7.0 | 1.7 | 22.0 | 19800 | 19 | 40 | 220 | 11.0 |
|
*NEMA 17 (110mm) |
||||||||||

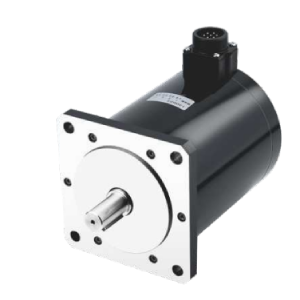

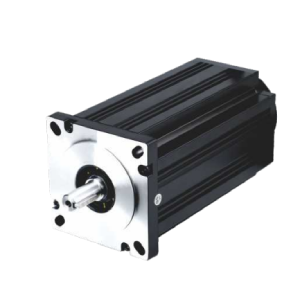

K5: 130B Series Dimension (mm)
K6: 130B50 Series Dimension (mm)
130mm series technical specifications
| Model | Step Angle(○) | Holding torque(N.m) | Rated current(A) | Resistance/phase (ohm) | Inductance/phase (mh) | Rotor inertia (g.cm2) | Shaft diameter(mm) | Shaft Length(mm) | Length(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 130B23 | 1.2 | 23 | 5.0 | 0.95 | 9.5 | 26800 | 19(K5) | 45 | 170 | 13.7 |
| 130B36 | 1.2 | 36 | 5.0 | 1.30 | 13.1 | 35000 | 19(K5) | 45 | 226 | 18.4 |
| 130B50 | 1.2 | 50 | 5.0 | 1.70 | 18.0 | 45500 | 19(K5) | 45 | 282 | 22.8 |
| 130B50 | 1.2 | 50 | 6.0 | 0.99 | 18.3 | 42500 | 19(K5) | 44 | 271 | 16.5 |
|
*NEMA 52 (130mm) |
||||||||||
