DC Servo Motor
DC Servo Motor

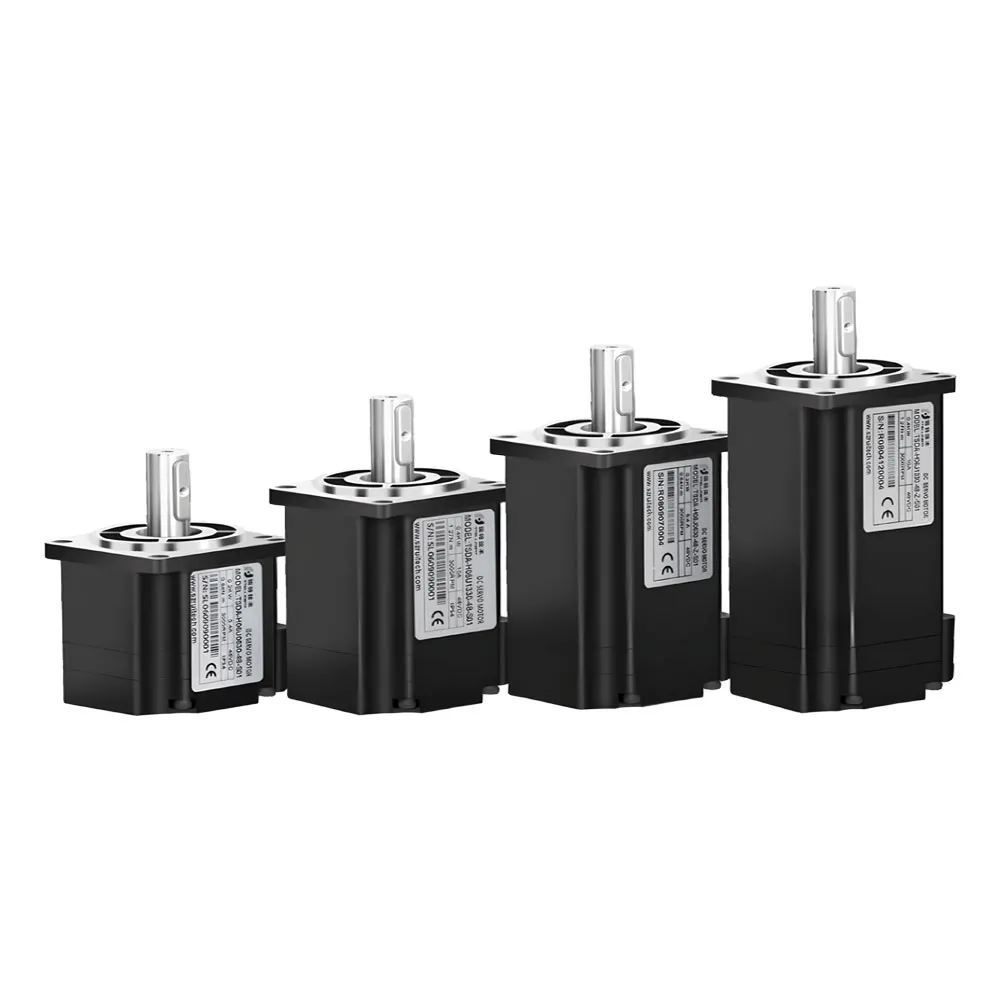

S01 ultra-short series low-voltage servo motor based on Reiter RSD series short motor magnetic circuit transformation and structure optimization, relative to the traditional motor greatly shorten the body length, suitable in all kinds of space requirements are relatively high occasions. Products can be used with all kinds of Reiter low-voltage servo drives, cost and performance are far ahead of the market.
- Ultra-short body, saving installation space.
- The shaft end can be customized to fit the ultra-short reducer.
- Permanent magnet lock brake optional for Z-axis applications.
- New 5-pole electromagnetic solution
- Lower slot torque and fluctuation
- Less heating
- High torque output
- More compact size
- More cost effecitve
DC Servo Motor 60mm / 80mm Series Technical Specifications
|
Model |
TSDA- H06J0630-48-S01 |
TSDA- H06J1330-48-S01 |
TSDA- H08J2430-48-S01 |
TSDA- H08J3230-48-S01 |
| Rated power (W) | 200 | 400 | 750 | 1000 |
| Rated voltage (V) | 48 | 48 | 48 | 48 |
| Rated current (A) | 5.40 | 10 | 20.3 | 31.3 |
| Rated torque (N·m) | 0.64 | 1.27 | 2.39 | 3.2 |
| Maximum torque (N·m) | 0.82 | 1.9 | 3.10 | 4.2 |
| Rated speed (rpm) | 3000 | 3000 | 3000 | 3000 |
| Maximum speed (rpm) | 4000 | 5000 | 5000 | 5000 |
| Back EMF (V/Krpm) | 6.90 | 8.4 | 7.40 | 6.90 |
| Torque constant (N·m/A) | 0.12 | 0.12 | 0.12 | 0.10 |
| Wire resistance (Ω, 20°C) | 0.75 | 0.32 | 0.11 | 0.06 |
| Wire inductance (mH, 20°C) | 0.89 | 0.46 | 0.22 | 0.13 |
| Rotot inertia (×10-4 kg·m2) | 0.20 Brake 0.30 |
0.5 Brake 0.6 |
1.50 Brake 1.70 |
1.90 Brake 2.10 |
| Length L (mm) | 52 Brake 86 |
70 Brake 104 |
108 Brake 125 |
120 Brake 137 |
