Overview

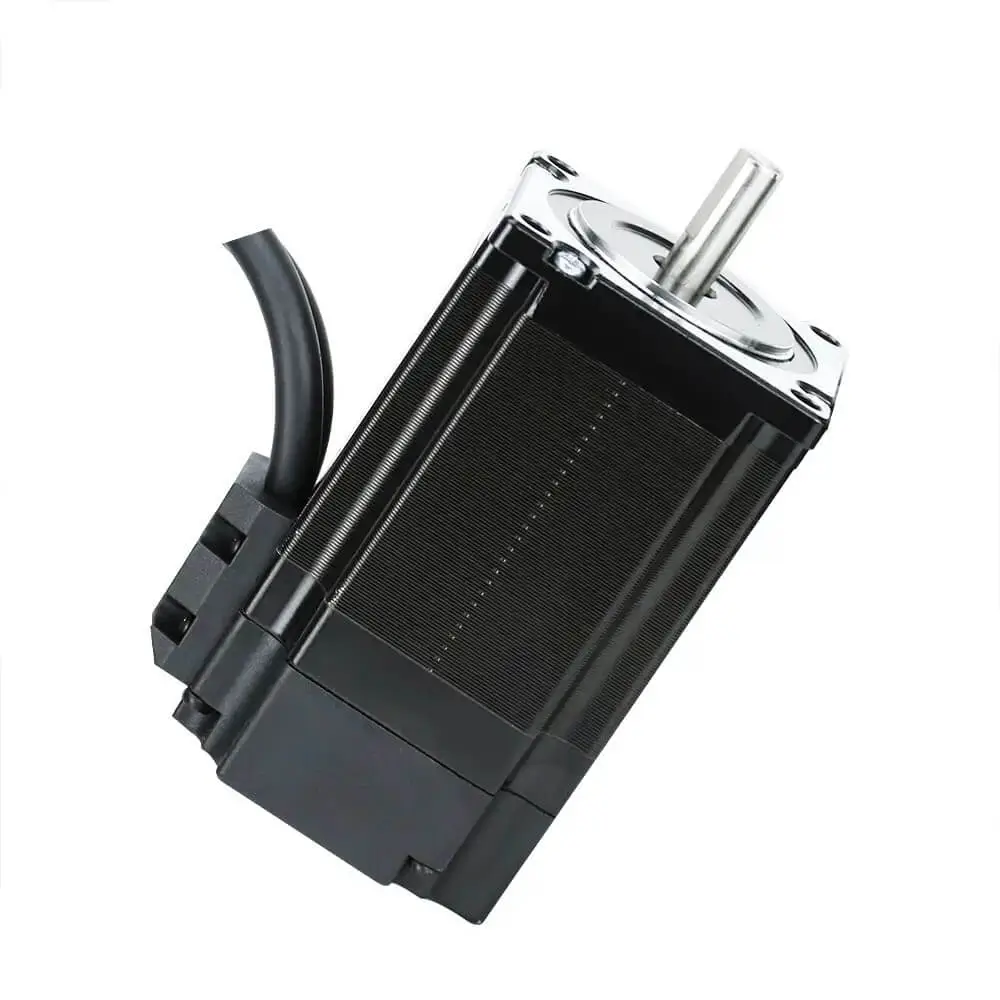

Overview 2 Phase Closed-Loop Stepper Motor

New 2-phase closed loop stepper motors AM seriesare based on Cz optimized magnetic circuit design and the latest compact M-shaped molds. The motor body uses high magnetic density stator and rotor materials with high energy efficiency.

  • Built-in high-resolution encoder, optional Z signal.
  • The lightweight design of the AM series reduces the installation.
  • Space of the motor.
  • Permanent magnet brake is optional, Z-axis brake is faster.
CE certified RoHS compliant
Get a Quote Talk to Engineer
Model Code

Naming Rule

How to read the model number and order the exact 2 Phase Closed-Loop Stepper Motor variant you need.

57
1 A
2 M
3 23
4 E
5 D
6 Z
7 -

 ◻
8

  • Base size
  • Step angle type code
    A: 1.8 degrees
    B: 1.2 degrees
    C: 0.72 degrees
  • Motor series code
    M: M series
  • Motor torque
    06:0.6Nm 30:3.0Nm 120:12Nm
  • Encoder type
    E: 1000 line photoelectric encoder
  • Type of plug
    C: Encoder AMP6 plug outlet
    D: Encoder DB9 plug outlet
    X: Encoder DB9/Motor AMP4 plug
    T: Encoder AMP6/Motor AMP4 plug
    H: Encoder AMP9/Motor AMP4 plug (high voltage)
  • Supplementary code
    Z: Encoder with Z signal
  • Non-standard code
    Z2: with brake

*Note: Model naming rules are only used for model meaning analysis. For specific optional models, please refer to the details page.

io-speed-regulating-stepper-motor
20
ac-speed-regulating-motor
28
io-speed-regulating-stepper-motor
42
ac-speed-regulating-motor
57
ac-speed-regulating-motor
60
ac-speed-regulating-motor
86

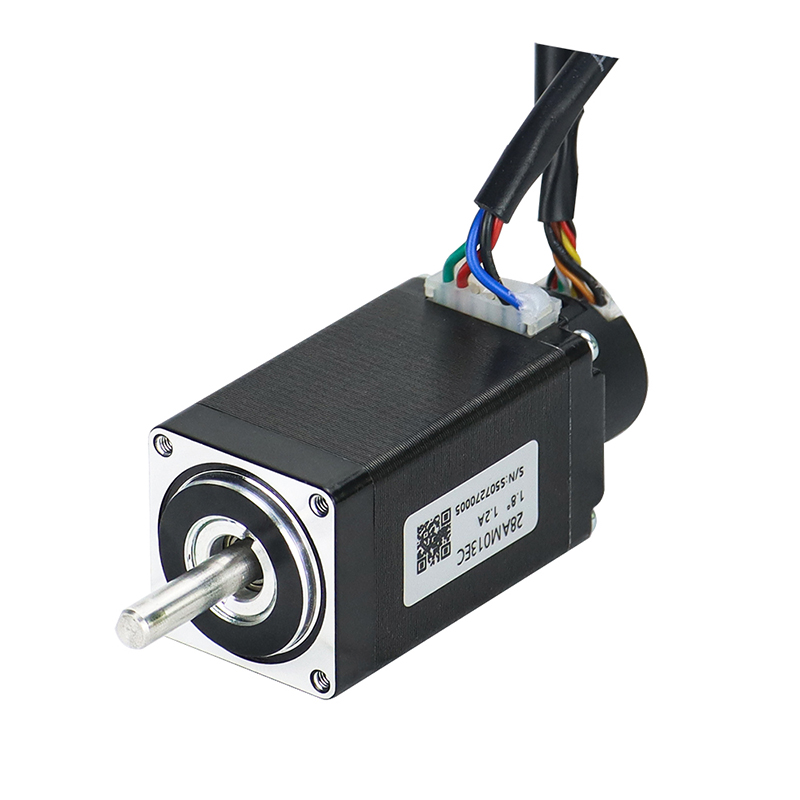

2-phase Stepper Motor 20/28mm Series Technical Specifications

42SPX-Series

20 Series Dimension (mm)

60SPX-Series

28 Series Dimension (mm)


Model Step Angle(○) Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)

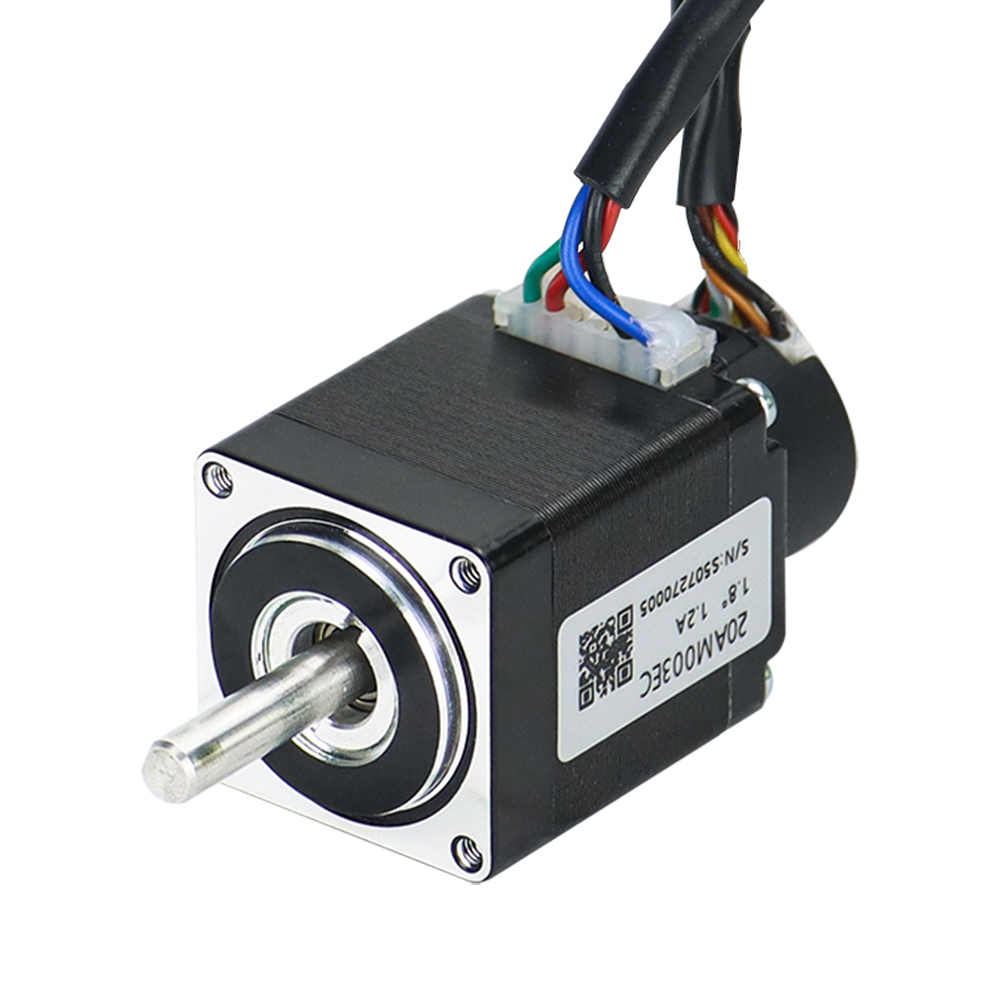

20AM003EC 1.8 0.03 0.6 5.7 2.6 3 4 20 46.0 0.09
28AM006EC 1.8 0.06 1.2 1.4 1.0 90 5 20 44.7 0.13
28AM013EC 1.8 0.13 1.2 2.2 2.3 180 5 20 63.6 0.22

Note: NEMA 8 (20mm)， NEMA 11 (28mm)

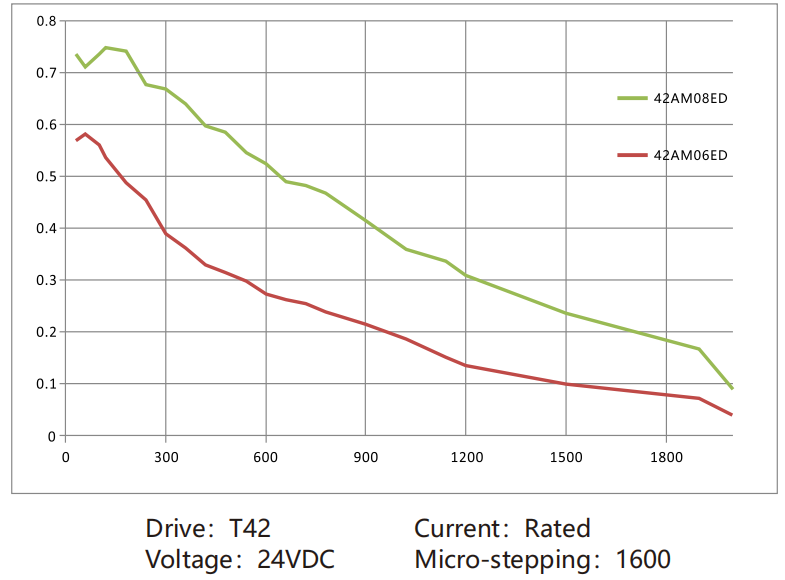

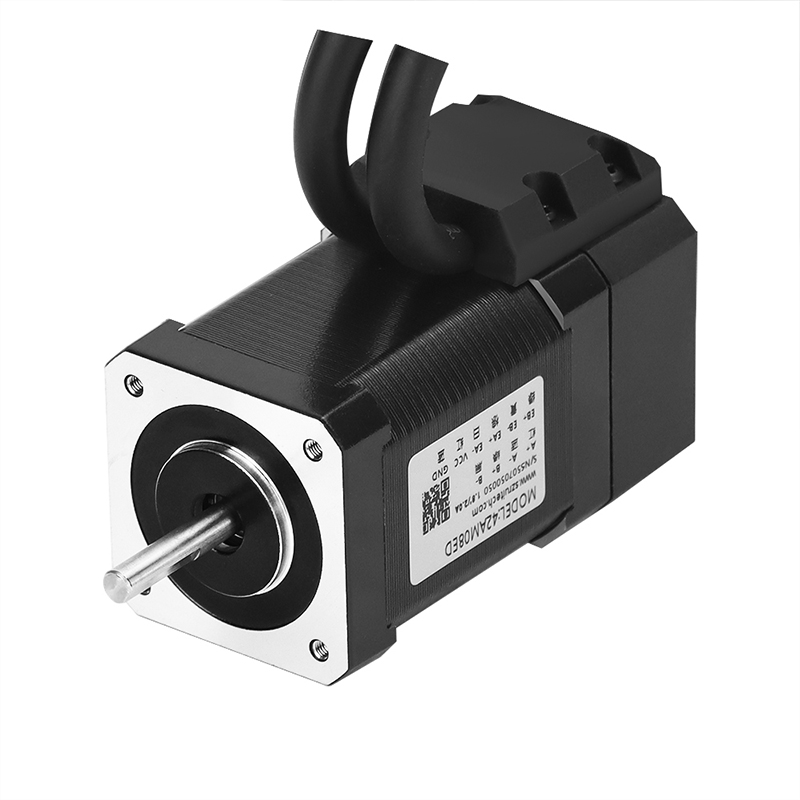

2-phase Stepper Motor 42mm Series Technical Specifications

42SPX-Series

42A Series Dimension (mm)

60SPX-Series

42A Series Dimension (mm)


Model Step angle (°) Holding torque (N.m) Rated current (A) Resistance/Phase (Ohm) Inductance/Phase (mH) Rotor inertia (g.cm²) Shaft diameter (mm) Shaft length (mm) Length (mm) Weight (kg)
42A03EC 1.8 0.3 2.0 1.6 1.9 77 8 21 69 0.5
42A08EC 1.8 0.8 2.8 2.7 2.3 115 8 21 85 0.6
42AM06ED 1.8 0.6 2.0 1.1 1.5 82 5 24 67 0.4
42AM08ED 1.8 0.8 2.0 1.9 5.0 114 5 24 79 0.6

Note: *NEMA 17 (42mm)

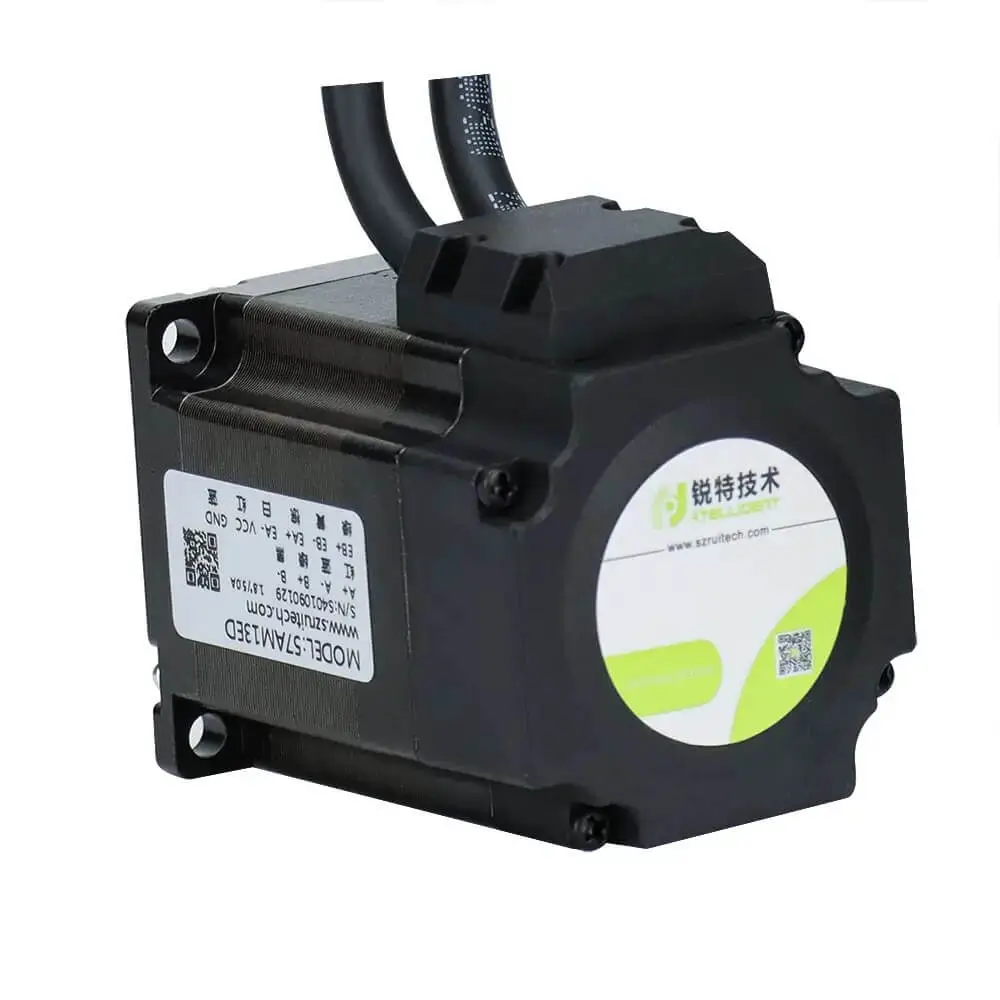

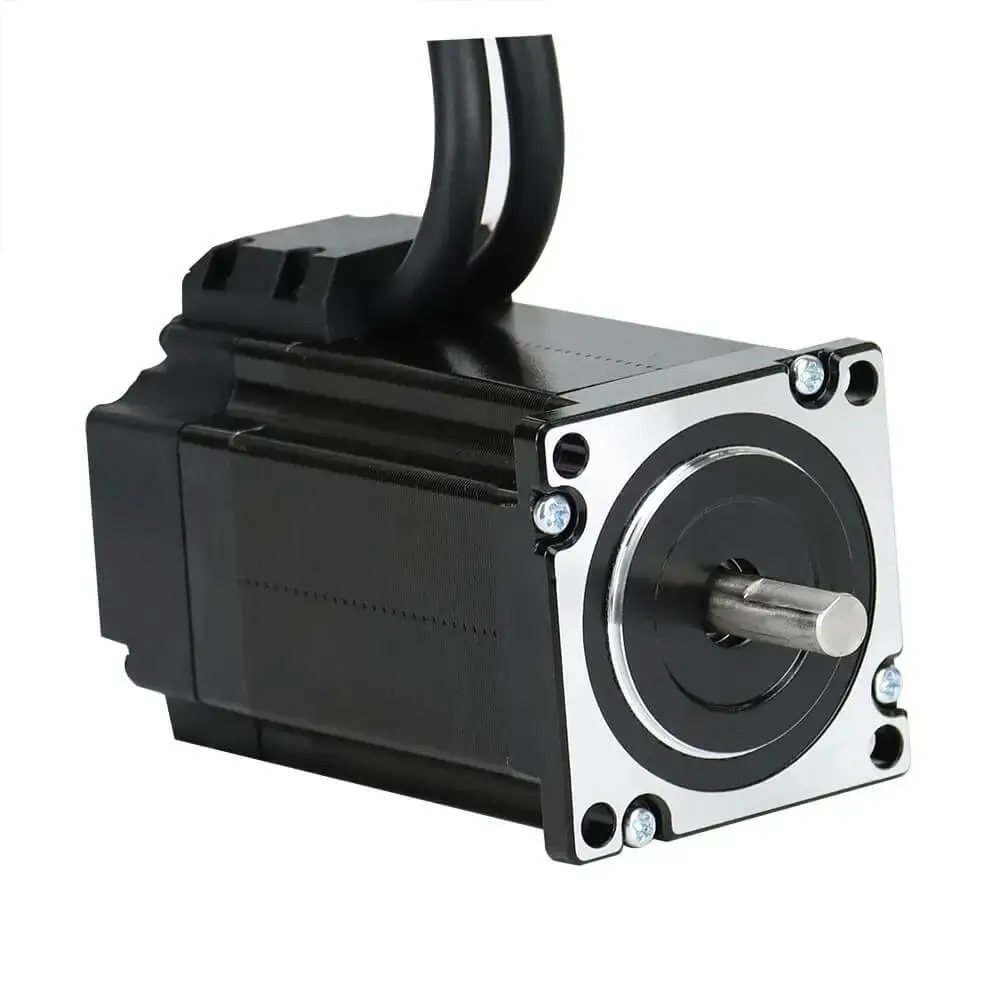

2-phase Stepper Motor 57mm Series Technical Specifications

42SPX-Series

57 Series Dimension (mm)

60SPX-Series

D57 Series Dimension (mm)


Model Step angle () Holding torque (N.m) Rated current (A) Resistance / Phase (Ohm) Inductance Phase (mH) Rotor inertia (g.cm²) Shaft diameter (mm) Shaft length (mm) Length (mm) Weight (kg)

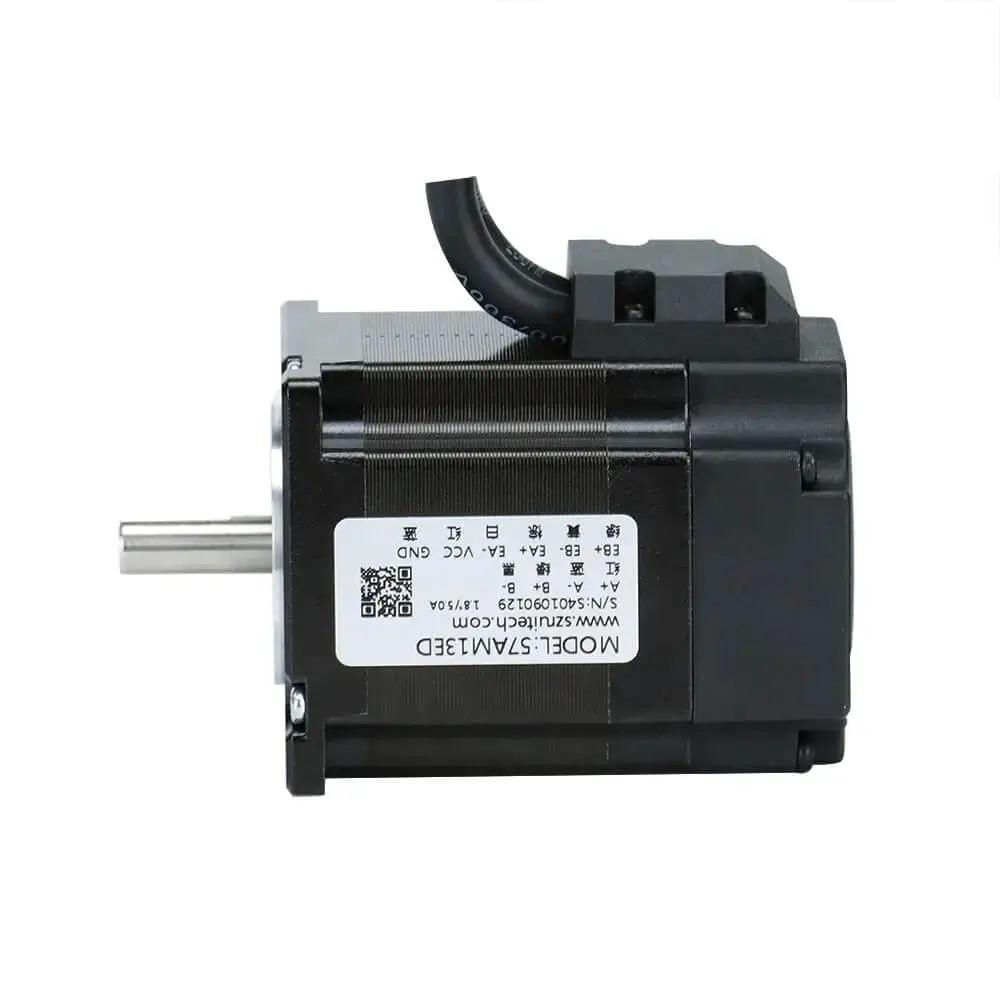

57AM13ED 1.8 1.3 4.0 0.4 1.6 260 8 22 77 0.8
57AM23ED 1.8 2.3 5.0 0.6 2.4 460 8 22 98 1.2
57AM26ED 1.8 2.6 5.0 0.5 2.1 520 8 22 106 1.4
57AM30ED 1.8 3.0 5.0 0.8 3.7 720 8 22 124 1.5
D57AM30ED 1.8 3.0 5.0 0.5 2.2 690 8 22 107 1.5

*NEMA 23 (57mm)

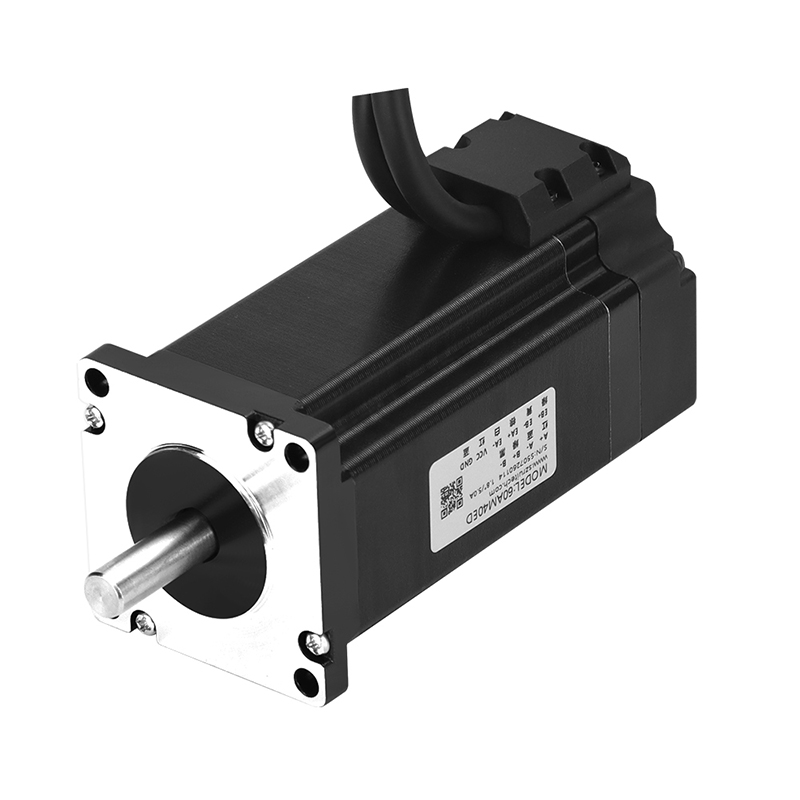

2-phase Stepper Motor 60mm Series Technical Specifications

60SPX-Series

60 Series Dimension (mm)

Model Step angle ) Holding torque(N.m) Rated current(A) Resistance/ Phase(Ohm) Inductance Phase(mH) Rotor inertia (g.cm²) Shaft diameter(mm) Shaft length (mm) Length (mm) Weight (kg)
60AM22ED 1.8 2.2 5.0 0.4 1.3 330 8 22 79 1.1
60AM30ED 1.8 3.0 5.0 0.5 2.2 690 8 22 107 1.5
60AM40ED 1.8 4.0 5.0 0.9 3.5 880 10 30 123 2.1

*NEMA 24 (60mm)

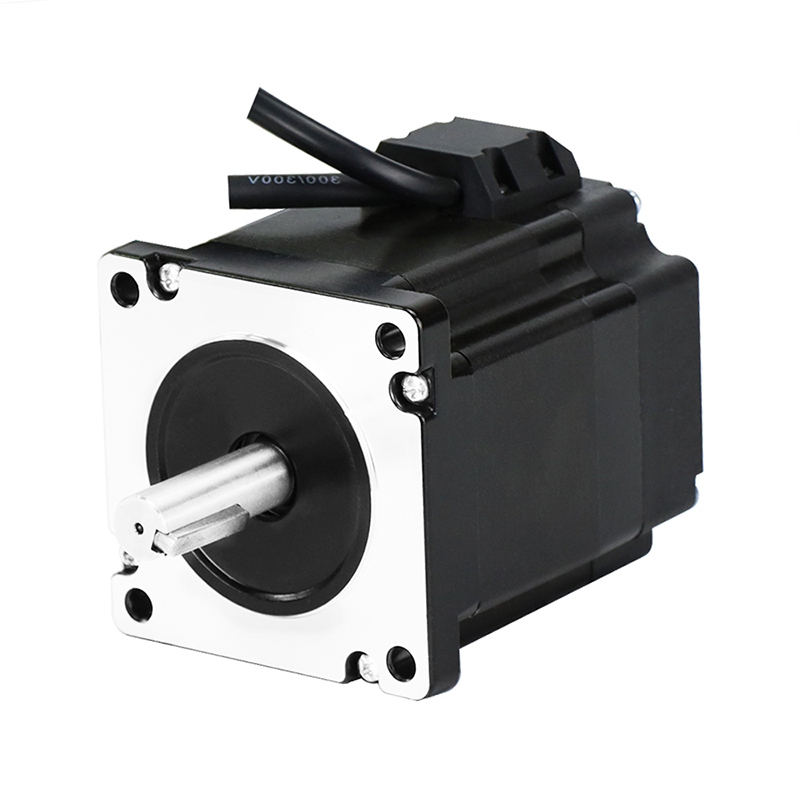

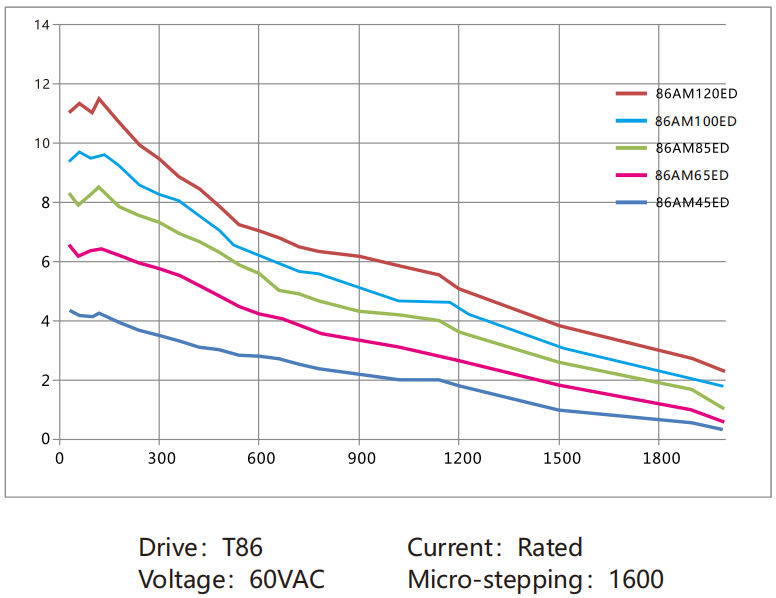

2-phase Stepper Motor 86mm Series Technical Specifications

42SPX-Series

86 Series Dimension (mm)

Model Step Angle() Holding torque(N.m) Rated current(A) Resistance/phase (ohm) Inductance/phase (mh) Rotor inertia (g.cm2) Shaft diameter(mm) Shaft Length(mm) Length(mm) Weight(Kg)
86AM45ED 1.8 4.5 6.0 0.4 2.8 1400 14 40 105 2.5
86AM65ED 1.8 6.5 6.0 0.5 4.2 2300 14 40 127 3.3
86AM85ED 1.8 8.5 6.0 0.5 5.5 2800 14 40 140 3.9
86AM100ED 1.8 10 6.0 0.8 5.3 3400 14 40 157 4.3
86AM120ED 1.8 12 6.0 0.7 8.3 4000 14 40 182 5.3

*NEMA 34 (86mm)

io-speed-regulating-stepper-motor
ac-speed-regulating-motor
io-speed-regulating-stepper-motor
ac-speed-regulating-motor

Datasheets & Manuals

20 documents for 2 Phase Closed-Loop Stepper Motor. Free PDF, no form to fill in.

  • 42AM02ED-42HSM34D-D0524-001 Datasheet Datasheet · PDF · 84 KB Download
  • 42AM04ED-8 Datasheet Datasheet · PDF · 107 KB Download
  • 42AM04ED Datasheet Datasheet · PDF · 107 KB Download
  • 42AM06ED Datasheet Datasheet · PDF · 134 KB Download
  • 42AM08ED Datasheet Datasheet · PDF · 84 KB Download
  • 57AM06ED Datasheet Datasheet · PDF · 87 KB Download
  • 57AM13ED Datasheet Datasheet · PDF · 140 KB Download
  • 57AM23ED Datasheet Datasheet · PDF · 140 KB Download
  • 57AM26ED Datasheet Datasheet · PDF · 87 KB Download
  • 57AM30ED Datasheet Datasheet · PDF · 87 KB Download
  • 86AM45ED Datasheet Datasheet · PDF · 90 KB Download
  • 86AM65ED Datasheet Datasheet · PDF · 90 KB Download
  • 86AM85ED Datasheet Datasheet · PDF · 90 KB Download
  • 86AM100ED Datasheet Datasheet · PDF · 90 KB Download
  • 86AM120ED Datasheet Datasheet · PDF · 90 KB Download
  • 60AM22ED Datasheet Datasheet · PDF · 88 KB Download
  • 60AM30ED Datasheet Datasheet · PDF · 88 KB Download
  • 60AM40ED（60HSM102D-D1030-011) Datasheet Datasheet · PDF · 87 KB Download
  • D57AM22ED Datasheet Datasheet · PDF · 88 KB Download
  • D57AM30ED Datasheet Datasheet · PDF · 88 KB Download

Industrial Applications of 2 Phase Closed-Loop Stepper Motor

RB Automation supplies stepper motors and stepper motor drivers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

SPM Machinery

  • Keyway Milling Machine
  • Gold Refinery Machine
  • Punching Machine
  • Metal Drilling Machine
  • Packing Sheet Cutting Machine

Wood Industry

  • Automatic Edge Bander Machine
  • Auto Panel Saw Machine
  • CNC Machine
  • Engraving Machine

Pharmaceutical Industry

  • Rotary Liquid Filling Machine
  • Linear Liquid Filling Machine
  • Sticker Labeling Machine

Jewellery and Diamond Industry

  • Diamond 4P Cutting Machine
  • Diamond Laser Fiber Cutting Machine
  • Diamond Multi Process Machine

Food Industry

  • Auger Filling Machine

Aluminium and Steel Industry

  • Laser Marking Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right 2 Phase Closed-Loop Stepper Motor variant and quote it.

  • Authorised Schneider Electric partner
  • Supply across Gujarat and all India
+91 8511104864 contact@rbautomate.com
FAQs

AM Series 2 Phase Closed-Loop Stepper Motor FAQs

Straight answers to what buyers ask us most about 2 Phase Closed-Loop Stepper Motor.

The AM series is a 2 phase closed-loop stepper motor range from Rtelligent with a built-in high-resolution encoder and an optional Z signal. It uses an optimised magnetic circuit, high magnetic density stator and rotor materials and a compact M-shaped mould, which keeps the motor light and reduces installation space. A permanent magnet brake is optional, which helps on vertical Z-axis applications.

The AM series covers 20mm (NEMA 8), 28mm (NEMA 11), 42mm (NEMA 17), 57mm (NEMA 23), 60mm (NEMA 24) and 86mm (NEMA 34) frames. Holding torque ranges from 0.03 N.m on the 20AM003EC up to 12 N.m on the 86AM120ED, all with a 1.8 degree step angle. Rated current runs from 0.6A on the smallest model to 6.0A on the 86mm motors.

In 57AM23ED, 57 is the base size in mm, A is the 1.8 degree step angle, M is the M series, 23 is the holding torque of 2.3 N.m, E is the 1000 line photoelectric encoder and D is the DB9 encoder plug outlet. A Z suffix adds the encoder Z signal and Z2 adds a brake. The naming rule only explains the code, so confirm the exact orderable model with RB Automation.

RB Automation supplies AM series closed-loop stepper motors from Ahmedabad, Gujarat, to OEMs and factories across India. RB Automation is an authorised technical partner of Rtelligent, so the team can pair the motor with a suitable closed loop stepper drive and the correct encoder cable. Call +91 8511104864 or use the inquiry form on this page to discuss your axis load and speed.

The cost depends on frame size and torque, whether you choose the brake or Z signal option, the plug type and how many motors you order. For that reason RB Automation quotes each requirement individually instead of publishing a fixed price list. Email contact@rbautomate.com with the model code, for example 86AM85ED, and your quantity to receive a quotation.

Yes, brake versions (Z2 code) and standard motors can be ordered in bulk for OEM machine production. RB Automation helps machine builders fix the frame size, torque, plug type and encoder options before placing a volume order, so every machine in the batch uses the same matched motor and drive. WhatsApp +91 9898739737 with your quantity and frame size for a bulk quote.
