2-Phase Open Loop Stepper Driver - R57

Name: 2-Phase Open Loop Stepper Driver - R57
Brand: Rtelligent
Rating: 4.5 (100 reviews)

R57 2-phase open loop stepper driver on a 32-bit DSP with auto tuning, 18-50V DC supply and 5.0A peak current for motors below 57mm. Get a quote today.

Get Free Quote Call +91 8511104864 WhatsApp Us

Rtelligent technical partner
Supply across India

Specifications

Key Specifications of the 2-Phase Open Loop Stepper Driver R57

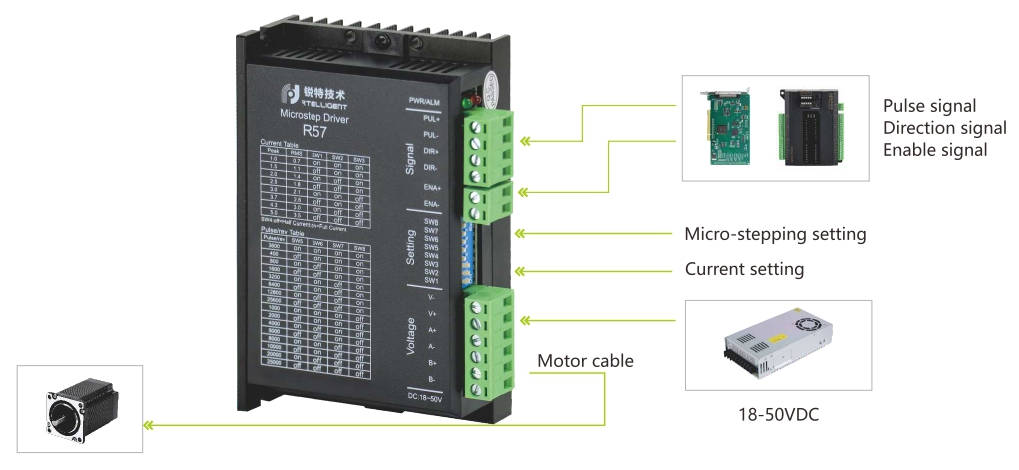

The R57 2-Phase Open Loop Stepper Driver is based on 32-bit DSP platform, with built-in micro-stepping technology & auto tuning of parameters. The drive features low noise, low vibration, low heating and high-speed high torque output. It is used to drive two-phase stepper motors base below 57mm.

Pulse mode: PUL&DIR
Signal level: 3.3~24V compatible; series resistance not required for the application of PLC.
Power voltage: 18-50V DC supply; 36 or 48V recommended
Typical applications: engraving machine, marking machine, cutting machine, plotter, laser, auto assembly equipment, etc.

Get a Quote Talk to Engineer

On-Site Setup

Working Current Setting

DIP switch reference for setting output current and micro-stepping during commissioning.

Output current peak	Output current RMS	SW1	SW2	SW3
1.0A	0.7A	on	on	on
1.5A	1.1A	off	on	on
2.0A	1.4A	on	off	on
2.5A	1.8A	off	off	on
3.0A	2.1A	on	on	off
3.7A	2.6A	off	on	off
4.3A	3.0A	on	off	off
5.0A	3.5A	off	off	off

On-Site Setup

Micro-stepping Setting

DIP switch reference for setting output current and micro-stepping during commissioning.

Pulse/rev	SW5	SW6	SW7	SW8
3600	on	on	on	on
400	off	on	on	on
800	on	off	on	on
1600	off	off	on	on
3200	on	on	off	on
6400	off	on	off	on
12800	on	off	off	on
25600	off	off	off	on
1000	on	on	on	off
2000	off	on	on	off
4000	on	off	on	off
5000	off	off	on	off
8000	on	on	off	off
10000	off	on	off	off
20000	on	off	off	off
25000	off	off	off	off
When SW5, SW6, SW 7, SW8 are all on, any subdivision can be changed through the debugging software.

Datasheets & Manuals

2 documents for 2-Phase Open Loop Stepper Driver - R57. Free PDF, no form to fill in.

2-Phase Open Loop Stepper Driver - R57 User Manual Manual · PDF · 805 KB Download
Stepper System Catalogue 2026 Catalogue · PDF · 19.1 MB Download

Industrial Applications of 2-Phase Open Loop Stepper Driver - R57

RB Automation supplies stepper motors and stepper motor drivers into the machines below, built by OEMs and machine builders in Ahmedabad, across Gujarat and throughout India. Each industry links to the full automation product list for that sector.

SPM Machinery

Keyway Milling Machine
Gold Refinery Machine
Punching Machine
Metal Drilling Machine
Packing Sheet Cutting Machine

Wood Industry

Automatic Edge Bander Machine
Auto Panel Saw Machine
CNC Machine
Engraving Machine

Pharmaceutical Industry

Rotary Liquid Filling Machine
Linear Liquid Filling Machine
Sticker Labeling Machine

Jewellery and Diamond Industry

Diamond 4P Cutting Machine
Diamond Laser Fiber Cutting Machine
Diamond Multi Process Machine

Food Industry

Auger Filling Machine

Aluminium and Steel Industry

Laser Marking Machine

Building a machine that is not listed? Send the load, speed and duty and our engineers will recommend a match
call +91 8511104864 or email contact@rbautomate.com.

Talk to an engineer

Inquiry Now

Send the model, quantity and what the machine has to do. Our engineers confirm the right 2-Phase Open Loop Stepper Driver - R57 variant and quote it.

Authorised Schneider Electric partner
Supply across Gujarat and all India

+91 8511104864 WhatsApp contact@rbautomate.com

FAQs

R57 2-Phase Open Loop Stepper Driver FAQs

Straight answers to what buyers ask us most about 2-Phase Open Loop Stepper Driver.

The R57 is a 2-phase open loop stepper driver from Rtelligent for two-phase stepper motors with a base below 57mm. It runs on a 32-bit DSP platform with built-in micro-stepping and automatic parameter tuning, giving low noise, low vibration, low heating and high torque at higher speeds. The recommended supply is 36V or 48V DC within its 18-50V DC input range.

The R57 delivers up to 5.0A peak, or 3.5A RMS. SW1 to SW3 give eight current steps starting at 1.0A peak (0.7A RMS), so the output can be matched to the rated current of your motor. Pulses per revolution are set with SW5 to SW8, from 400 to 25600, and any subdivision can be set through the debugging software when all four switches are on.

The R57 is used on engraving machines, marking machines, cutting machines, plotters, lasers and automatic assembly equipment where a mid-size stepper motor drives the axis. Its PUL and DIR inputs accept 3.3-24V signals, so it can take commands directly from a PLC without a series resistor, which simplifies wiring on retrofit and new machines alike.

R57 pricing depends on the quantity you order and on whether you need the driver on its own or as a set with a matching motor below 57mm. RB Automation prepares each quotation to your requirement rather than listing a fixed rate. Call +91 8511104864 or send your details through the inquiry form on this page to receive a quote.

You can buy the R57 from RB Automation, an industrial automation supplier in Ahmedabad, Gujarat, that supplies customers across India. RB Automation is an authorised technical partner of Rtelligent. Email contact@rbautomate.com or WhatsApp +91 9898739737 with the quantity and your motor details, and the team will confirm availability and send a quotation.

Yes. Share your motor frame size, rated current and supply voltage, and RB Automation will confirm whether the R57, with its 5.0A peak limit and support for motors below 57mm, fits your axis or whether a higher-current driver is needed. Checking this before ordering helps you avoid an undersized drive. Call +91 8511104864 for selection help.
