Multi-Axis Stepper Driver - R60X2
High-Performance Multi-Axis Stepper Driver R60X2

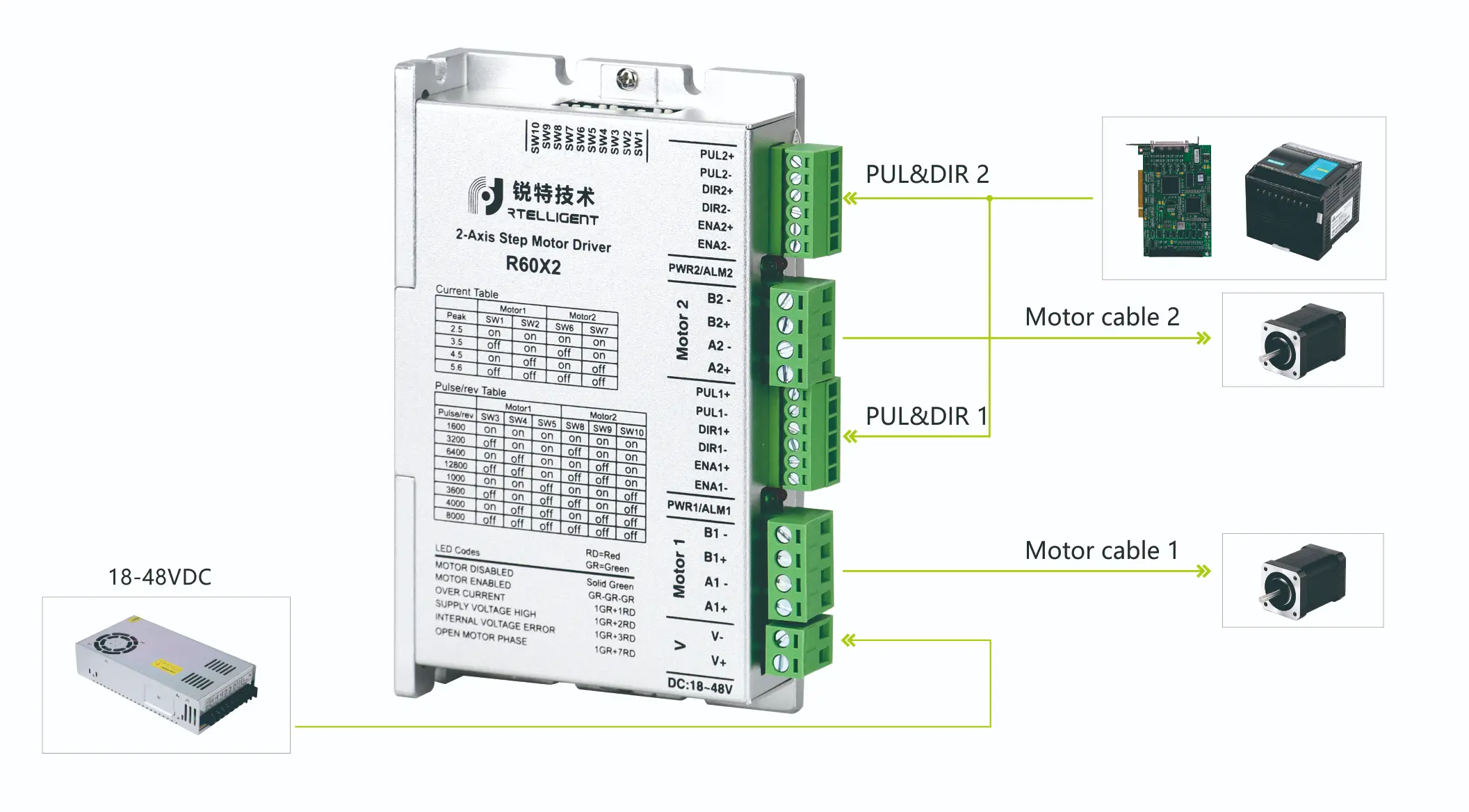

Multi-axis automation equipment is often required to reduce space and save the cost. R60X2 is the first two-axis special drive developed by Rtelligent in domestic market. R60X2 can independently drive two 2-phase stepper motors up to 60mm frame size. The two-axis micro-stepping and current can be set separately.
- Pulse mode: PUL & DIR
- Signal level: 24V default, R60X2-5V is required for 5V.
- Typical applications: Dispenser, soldering machine, multi-axis test equipment.
Working Current Setting
| Output current peak | Motor 1 | Motor 2 | ||
|---|---|---|---|---|
| SW1 | SW2 | SW3 | SW4 | |
| 2.5A | on | on | on | on |
| 3.5A | off | on | off | on |
| 4.5A | on | off | on | off |
| 5.6A | off | off | off | off |
Micro-stepping Setting
| Motor 1 (Motor 2) | |||
|---|---|---|---|
| Pulse/rev | SW3(8) | SW4(9) | SW5(10) |
| 1600 | on | on | on |
| 3200 | off | on | on |
| 6400 | on | off | on |
| 12800 | off | off | on |
| 1000 | on | on | off |
| 3600 | off | on | off |
| 4000 | on | off | off |
| 8000 | off | off | off |
