Multi-Axis Stepper Driver - R60X3

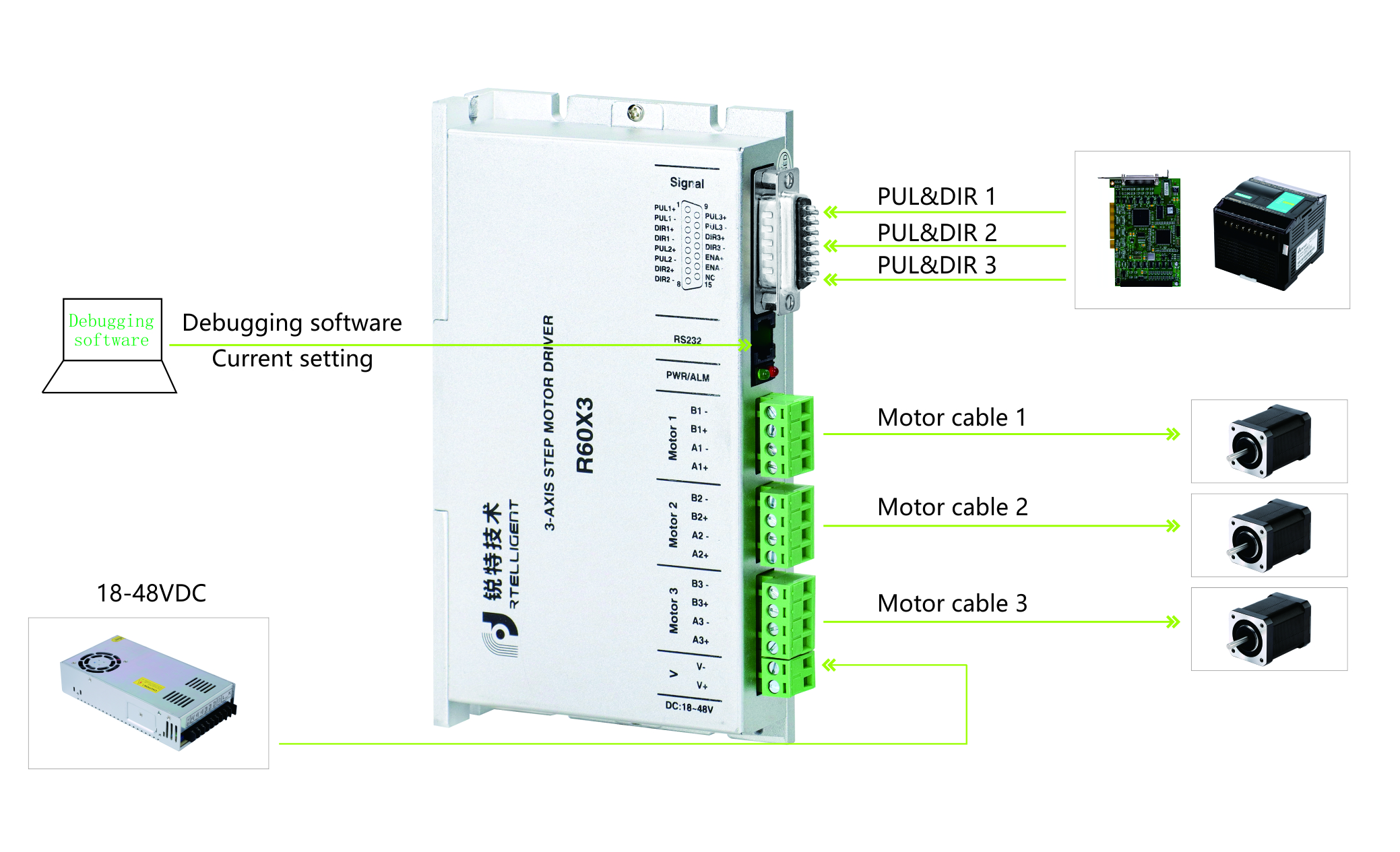

Three-axis platform equipment often has the need to reduce space and save cost. R60X3/3R60X3 is the first three-axis special drive developed by Rtelligent in dometic market. R60X3/3R60X3 can independently drive three 2-phase/3-phase stepper motors up to 60mm frame size. The three-axis micro-stepping and current are independently adjustable.

• Pulse mode: PUL & DIR
• Signal level: 3.3-24V compatible; serial resistance not required for the application of PLC.
• Typical applications: Dispenser, soldering machine, engraving machine, multi-axis test equipment.
