R-S Series Open Loop Pulse Control Stepper Driver
R-S Series Open Loop Pulse Control Stepper Driver Overview
The R-S series is an upgraded version of the open-loop stepper drive launched by Rtelligent, and the product design idea is derived from the company's accumulation in the field of stepper drive over the years. With a new architecture and algorithm, the new generation of stepper driver effectively reduces the low-speed resonance amplitude of the motor, has a stronger anti-interference ability, while supportingsensorless stall detection, phase alarm and other functions, support a variety of pulse command forms, multiple dip setting functions.
Auto tuning
Sensorless stall detection
Multiple dip setting
Missing phase alarm
Low speed vibration suppression
PUL + DIR / CW + CCW / QEP
Three inputs and one output
5V / 24V pulse command independent

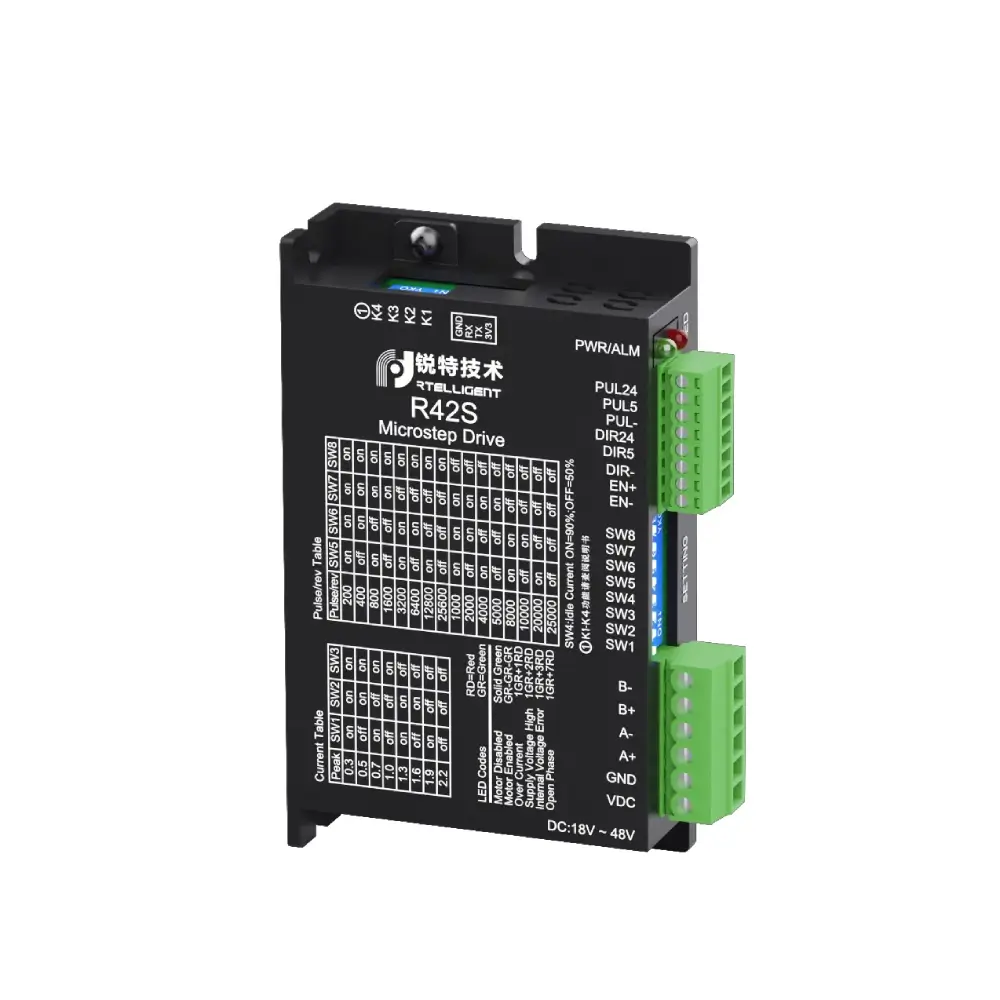

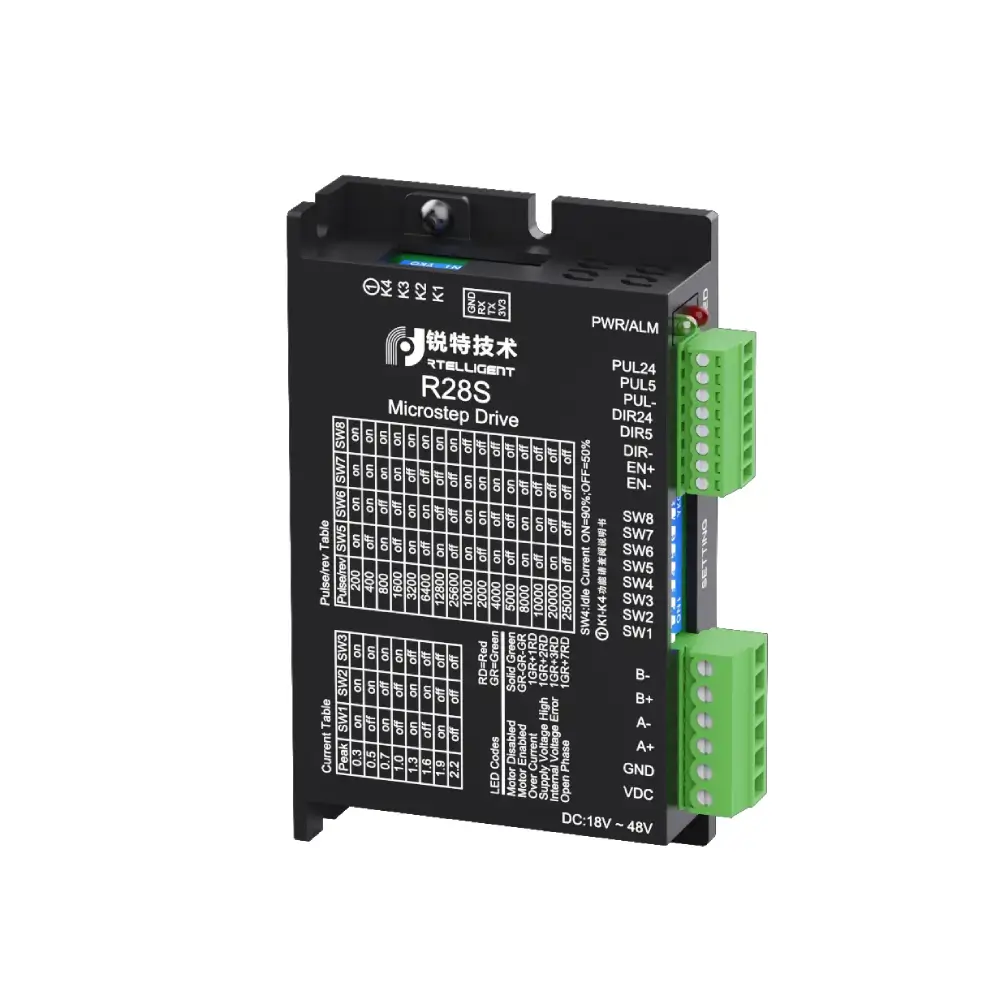

| Model No. | R28S | R42S | R60S | R86S |
|---|---|---|---|---|
| Voltage range | 12~24VDC | 18~50VDC | 18~50VDC | 28~110VDC |
| AC input | Non support (1) | Non support (1) | Non support (1) | 20~80VAC |
| Current range | 0.3~1.0A | 0.3~2.2A | 1.4~5.6A | 2.4~7.2A |
| Matching motor | Open loop motor below 28mm |
Open loop motor below 42mm |
Open loop motor below 60mm |
Open loop motor below 86mm |
| Overcurrent self-recovery | Support (2) | Non support | ||
| Debugging interface | Serial port TTL 3.3V | |||
| Extended dip | 2 (SW8 Bit + k4 Bit) | 2 (SW8 Bit + k8 Bit) | ||
| Alarm output | Non support (3) | 1 | ||
| Pulse command voltage | 5V / 24V independent port | |||
| Pulse command form | PUL + DIR / CW + CCW / QEP | |||
| Pulse mode setting | PUL + DIR / CW + CCW Dip setting | |||
| Pulse width setting | 200K / 600K Dip setting | |||
| Direction inversion | Dip setting | |||
| Stall detection | Dip setting | |||
| Phase missing detection | Software setting (4) | Dip setting | ||
| Instruction filter | Software setting (4) | Dip setting | ||
